Timken Part Number QAAPR13A208S, Double Concentric
Please wait…
Download PDF
Download PDF
Email This Page
Save To Favorites
Spherical Roller Bearing Solid-Block Housed Units feature rugged cast-steel housings and double-row spherical roller bearings. Designed to offer protection from contaminants, these housed units accommodate shaft sizes from 1-7/16” to 7” (40 mm to 180 mm) and most metric sizes. This product line was formerly known as “QM Blue Brute Bearings.”
Note:
Some products have both imperial and metric dimensions. Selecting “Metric” below will hide the imperial dimensions. Selecting “Both” will display all dimensions.
Unit of Measure:
Imperial |
Metric |
Both
Specifications
·
Dimensions
·
Radial and Thrust Factors
·
Eng Seal Speed
·
Eng Bearing Attributes
·
Eng Internal Radial Clearance
Specifications
Engineering Group
Mounted Bearing
Bearing Number
22213
Shaft Size
2-1/2 in
Shaft Size Type
Imperial
Weight
20.000 lb
Locking Style
Double Concentric
Full Timken Part Number
QAAPR13A208S
QAAPR13A208SB
QAAPR13A208SC
QAAPR13A208SEB
QAAPR13A208SEC
QAAPR13A208SEM
QAAPR13A208SEN
QAAPR13A208SEO
QAAPR13A208SET
QAAPR13A208SM
QAAPR13A208SN
QAAPR13A208SO
QAAPR13A208ST

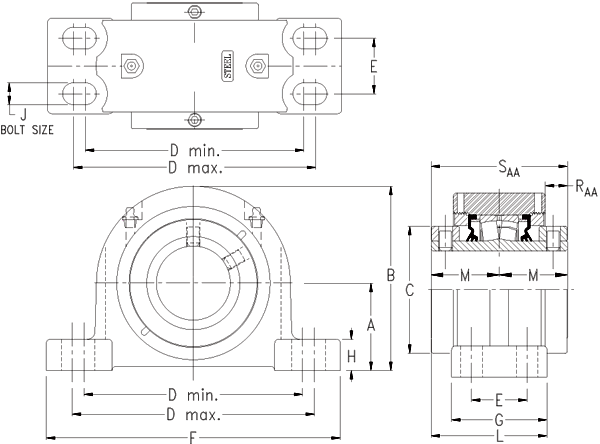

Dimensions
Dimension A
2.7500 in
Dimension B
5.800 in
Dimension C
4.00 in
Dimension D Max
8.75 in
Dimension D Min
7.13 in
Dimension E
1.8800 in
Dimension F
10.250 in
Dimension G
3.250 in
Dimension H
0.9800 in
Dimension J
0.6250 in
Dimension KA
0 in
Dimension L
3.7300 in
Dimension M
2.15 in
Dimension RAA
0.7 in
Dimension SAA
4.30 in
Radial and Thrust Factors
C - Dynamic Load (Basic)
46400 lb
206 kN
C0 - Dynamic Load (Static)
48600 lb
216 kN
e - Geometry Factor
0.25
Y1 - Geometry Factor
2.69
Y2 - Geometry Factor
4
Eng Seal Speed
Oil Lubrication - M/N Seal
1800 rpm
Oil Lubrication - T Seal
3200 rpm
Oil Lubrication - B/C/O Seal
1500 rpm
Grease Lubrication - M/N Seal
1800 rpm
Grease Lubrication - T Seal
2800 rpm
Grease Lubrication - B/C/O Seal
1500 rpm
Eng Bearing Attributes
Float
0.083 in
2.108 mm
Shaft Tolerance
0.0015 in
0.038 mm
Eng Internal Radial Clearance
Eng Internal Radial Clearance - Min
0.0016
Eng Internal Radial Clearance - Max
0.0026
Pre Install Clearance Min
0.040 mm
Pre Install Clearance Max
0.065 mm
