Timken Part Number QMTU15J211S, Eccentric
Spherical Roller Bearing Solid-Block Housed Units feature rugged cast-steel housings and double-row spherical roller bearings. Designed to offer protection from contaminants, these housed units accommodate shaft sizes from 1-7/16” to 7” (40 mm to 180 mm) and most metric sizes. This product line was formerly known as “QM Blue Brute Bearings.”
Note:
Some products have both imperial and metric dimensions. Selecting “Metric” below will hide the imperial dimensions. Selecting “Both” will display all dimensions.
Unit of Measure:
Imperial |
Metric |
Both
Specifications
·
Dimensions
·
Radial and Thrust Factors
·
Eng Seal Speed
·
Eng Bearing Attributes
·
Eng Internal Radial Clearance
Specifications
Engineering Group
Mounted Bearing
Bearing Number
22215
Shaft Size
2-11/16 in
Shaft Size Type
Imperial
Weight
35.000 lb
Locking Style
Eccentric
Full Timken Part Number
QMTU15J211S
QMTU15J211SB
QMTU15J211SC
QMTU15J211SEB
QMTU15J211SEC
QMTU15J211SEM
QMTU15J211SEN
QMTU15J211SEO
QMTU15J211SET
QMTU15J211SM
QMTU15J211SN
QMTU15J211SO
QMTU15J211ST

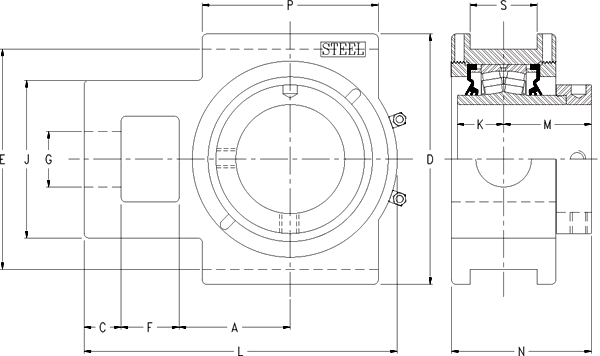

Dimensions
Dimension A
3.0000 in
Dimension C
1.00 in
Dimension D
6.750 in
Dimension E
5.9400 in
Dimension F
1.560 in
Dimension G
1.560 in
Dimension J
4.2500 in
Dimension K
1.25 in
Dimension L
8.6500 in
Dimension M
2.37 in
Dimension N
3.82 in
Dimension P
4.75 in
Dimension S
1.81 in
Radial and Thrust Factors
C - Dynamic Load (Basic)
49900 lb
222 kN
C0 - Dynamic Load (Static)
54100 lb
240 kN
e - Geometry Factor
0.22
Y1 - Geometry Factor
3.01
Y2 - Geometry Factor
4.48
Eng Seal Speed
Oil Lubrication - M/N Seal
1600 rpm
Oil Lubrication - T Seal
2900 rpm
Oil Lubrication - B/C/O Seal
1300 rpm
Grease Lubrication - M/N Seal
1600 rpm
Grease Lubrication - T Seal
2400 rpm
Grease Lubrication - B/C/O Seal
1300 rpm
Eng Bearing Attributes
Float
0.083 in
2.108 mm
Shaft Tolerance
0.002 in
0.051 mm
Eng Internal Radial Clearance
Eng Internal Radial Clearance - Min
0.0020
Eng Internal Radial Clearance - Max
0.0031
Pre Install Clearance Min
0.050 mm
Pre Install Clearance Max
0.080 mm
