Timken Part Number QVTU16V211S
Please wait…
Download PDF
Download PDF
Printable Page
Email This Page
Save To Favorites
Timken Part Number QVTU16V211S, Single V-Lock
Spherical Roller Bearing Solid-Block Housed Units feature rugged cast-steel housings and double-row spherical roller bearings. Designed to offer protection from contaminants, these housed units accommodate shaft sizes from 1-7/16” to 7” (40 mm to 180 mm) and most metric sizes. This product line was formerly known as “QM Blue Brute Bearings.”
Note:
Some products have both imperial and metric dimensions. Selecting “Metric” below will hide the imperial dimensions. Selecting “Both” will display all dimensions.
Unit of Measure:
Imperial |
Metric |
Both
Specifications
·
Dimensions
·
Radial and Thrust Factors
·
Eng Seal Speed
·
Eng Bearing Attributes
·
Eng Internal Radial Clearance
Specifications
Engineering Group
Mounted Bearing
Bearing Number
22216
Shaft Size
2-11/16 in
Shaft Size Type
Imperial
Weight
35.000 lb
Locking Style
Single V-Lock
Full Timken Part Number
QVTU16V211S
QVTU16V211SB
QVTU16V211SC
QVTU16V211SEB
QVTU16V211SEC
QVTU16V211SEM
QVTU16V211SEN
QVTU16V211SEO
QVTU16V211SET
QVTU16V211SM
QVTU16V211SN
QVTU16V211SO
QVTU16V211ST

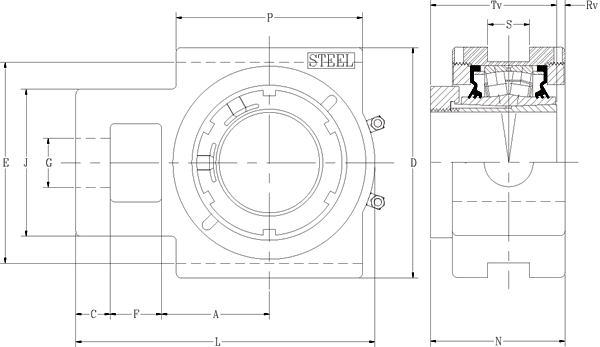

Dimensions
Dimension A
3.0000 in
Dimension C
1.00 in
Dimension D
6.750 in
Dimension E
5.9400 in
Dimension F
1.560 in
Dimension G
1.560 in
Dimension J
4.2500 in
Dimension L
8.6500 in
Dimension N
3.55 in
Dimension P
4.75 in
Dimension RV
0.09 in
Dimension S
1.81 in
Dimension SV
1.81 in
Dimension T
3.29 in
Dimension TV
3.45 in
Radial and Thrust Factors
C - Dynamic Load (Basic)
57200 lb
254 kN
C0 - Dynamic Load (Static)
62500 lb
278 kN
e - Geometry Factor
0.22
Y1 - Geometry Factor
3.01
Y2 - Geometry Factor
4.48
Eng Seal Speed
Oil Lubrication - M/N Seal
1500 rpm
Oil Lubrication - T Seal
2650 rpm
Oil Lubrication - B/C/O Seal
1200 rpm
Grease Lubrication - M/N Seal
1500 rpm
Grease Lubrication - T Seal
2200 rpm
Grease Lubrication - B/C/O Seal
1150 rpm
Eng Bearing Attributes
Float
0.083 in
2.108 mm
Shaft Tolerance
0.002 in
0.051 mm
Eng Internal Radial Clearance
Eng Internal Radial Clearance - Min
0.0043
Eng Internal Radial Clearance - Max
0.0055
Pre Install Clearance Min
0.095 mm
Pre Install Clearance Max
0.120 mm
DOWNLOADS
Eng Seal Temperatures
(JPG, 26KB)
Eng Mounted Bearing Load Ratings
(JPG, 30KB)
QVTU16V211S.dxf
QVTU16V211S.igs
