Timken Part Number QVVTU14V207S, Double V-Lock
Spherical Roller Bearing Solid-Block Housed Units feature rugged cast-steel housings and double-row spherical roller bearings. Designed to offer protection from contaminants, these housed units accommodate shaft sizes from 1-7/16 to 7 (40 mm to 180 mm) and most metric sizes. This product line was formerly known as QM Blue Brute Bearings.
Note:
Some products have both imperial and metric dimensions. Selecting Metric below will hide the imperial dimensions. Selecting Both will display all dimensions.
Unit of Measure:
Imperial |
Metric |
Both
Specifications
·
Dimensions
·
Radial and Thrust Factors
·
Eng Seal Speed
·
Eng Bearing Attributes
·
Eng Internal Radial Clearance
Specifications
Engineering Group
Mounted Bearing
Bearing Number
22214
Shaft Size
2-7/16 in
Shaft Size Type
Imperial
Weight
17.000 lb
Locking Style
Double V-Lock
Full Timken Part Number
QVVTU14V207S
QVVTU14V207SB
QVVTU14V207SC
QVVTU14V207SEB
QVVTU14V207SEC
QVVTU14V207SEM
QVVTU14V207SEN
QVVTU14V207SEO
QVVTU14V207SET
QVVTU14V207SM
QVVTU14V207SN
QVVTU14V207SO
QVVTU14V207ST

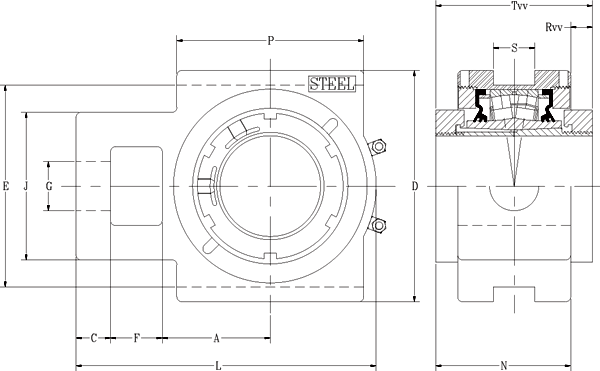

Dimensions
Dimension A
2.7500 in
Dimension C
0.88 in
Dimension D
5.880 in
Dimension E
5.1300 in
Dimension F
1.310 in
Dimension G
1.310 in
Dimension J
3.7500 in
Dimension L
7.6300 in
Dimension N
3.48 in
Dimension P
4.75 in
Dimension RVV
0.61 in
Dimension S
1.06 in
Dimension SVV
1.06 in
Dimension T
3.99 in
Dimension TVV
4.09 in
Radial and Thrust Factors
C - Dynamic Load (Basic)
47800 lb
213 kN
C0 - Dynamic Load (Static)
52000 lb
231 kN
e - Geometry Factor
0.24
Y1 - Geometry Factor
2.83
Y2 - Geometry Factor
4.22
Eng Seal Speed
Oil Lubrication - M/N Seal
1700 rpm
Oil Lubrication - T Seal
3050 rpm
Oil Lubrication - B/C/O Seal
1400 rpm
Grease Lubrication - M/N Seal
1700 rpm
Grease Lubrication - T Seal
2600 rpm
Grease Lubrication - B/C/O Seal
1400 rpm
Eng Bearing Attributes
Float
0.083 in
2.108 mm
Shaft Tolerance
0.0015 in
0.038 mm
Eng Internal Radial Clearance
Pre Install Clearance Min
0.075 mm
Pre Install Clearance Max
0.094 mm
DOWNLOADS
Eng Seal Temperatures
(JPG, 26KB)
Eng Mounted Bearing Load Ratings
(JPG, 34KB)
QVVTU14V207S.dxf
QVVTU14V207S.igs
Bearing Life Calculator
Bearing Life Calculator
<
©
