Unit of Measure

Key Dimensions

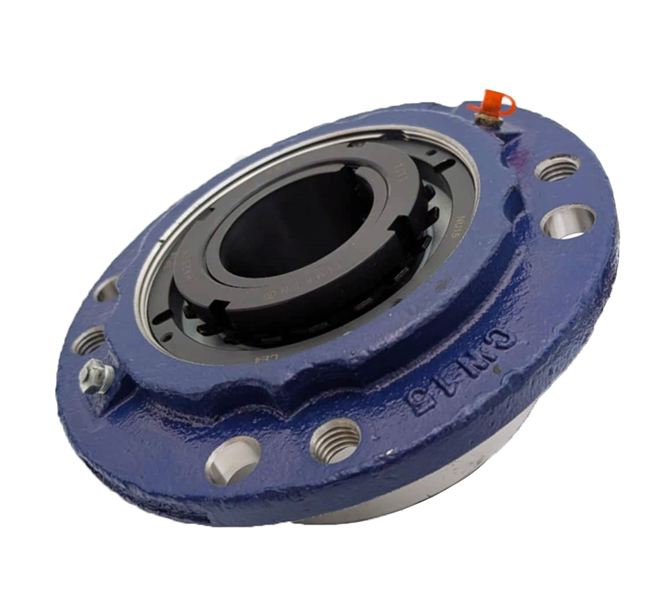

Engineering Group

 N/A Mounted Bearing

Bearing Number

 N/A 22216

Shaft Size

 N/A 70 mm

Shaft Size Type

 N/A Metric

Full Timken Part Number

 N/A TAACK16K070SB TAACK16K070SC TAACK16K070SEB TAACK16K070SEC TAACK16K070SEM TAACK16K070SEN TAACK16K070SEO TAACK16K070SET TAACK16K070SM TAACK16K070SN TAACK16K070SO TAACK16K070ST

Locking Style

 N/A Tapered Adapter

Housing Construction

 N/A Piloted Flange Cartridge

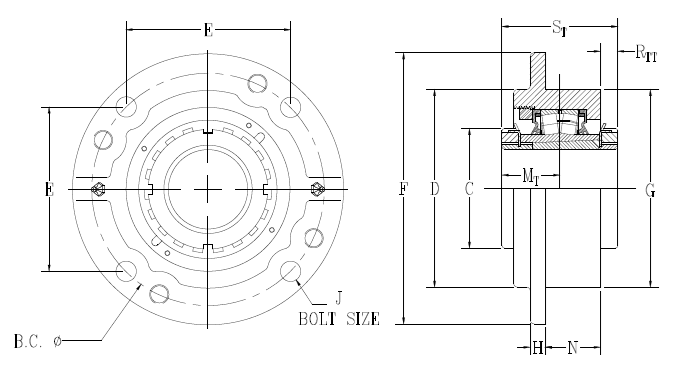

Other Dimensions

Dimension BC

 N/A 8.63 in219.2 mm

Dimension C

 N/A 4.13 in105 mm

Dimension D

 N/A 7.38 in187.5 mm

Dimension E

 N/A 6.1 in154.9 mm

Dimension F

 N/A 10.2500 in260.4 mm

Dimension G

 N/A 7.375 in187.3 mm

Dimension H

 N/A 0.75 in19.1 mm

Dimension J (Bolt Size)

 N/A 0.75 in20 mm

Dimension MT

 N/A 1.96 in49.7 mm

Dimension N

 N/A 1.38 in34.9 mm

Dimension RTT

 N/A 0.71 in18 mm

Dimension ST

 N/A 3.91 in99.3 mm

Radial and Thrust Factors

C0 - Static Load

 N/A 62500 lbf278000 N

C - Dynamic Load (Basic)

 N/A 57200 lbf254000 N
