 N/A To get the full fitment details go to www.timkeninfo.com.

Specifications

Country of Origin (Primary)

 N/A US

Full Timken Part Number

 N/A HA590618;A/AM-HUB BRG

Application Summary

 N/A Fiat 500X - Wheel Bearing and Hub Assembly [Front AWD] (2016-2020) Fiat 500X - Wheel Bearing and Hub Assembly [Front FWD] (2016-2018) Fiat 500X - Wheel Bearing and Hub Assembly [Rear AWD] (2016-2020) Jeep Renegade - Wheel Bearing and Hub Assembly [Front AWD] (2015-2018) Jeep Renegade - Wheel Bearing and Hub Assembly [Front FWD] (2015-2018) Jeep Renegade - Wheel Bearing and Hub Assembly [Rear AWD] (2015-2018)

National Popularity Code

 N/A W

Description-Short

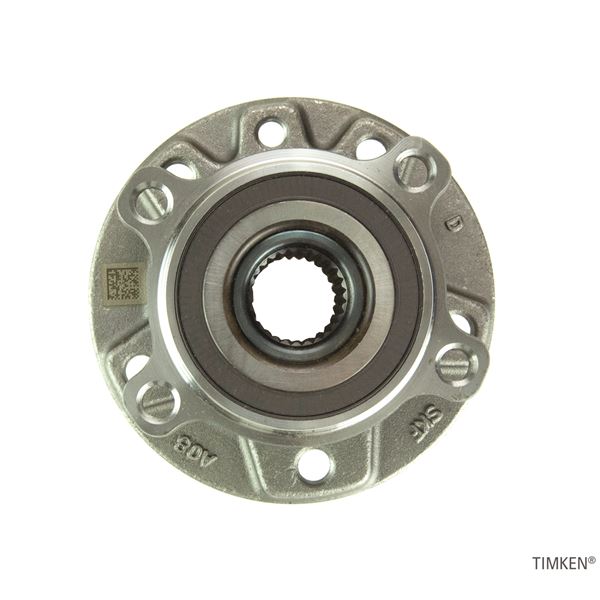

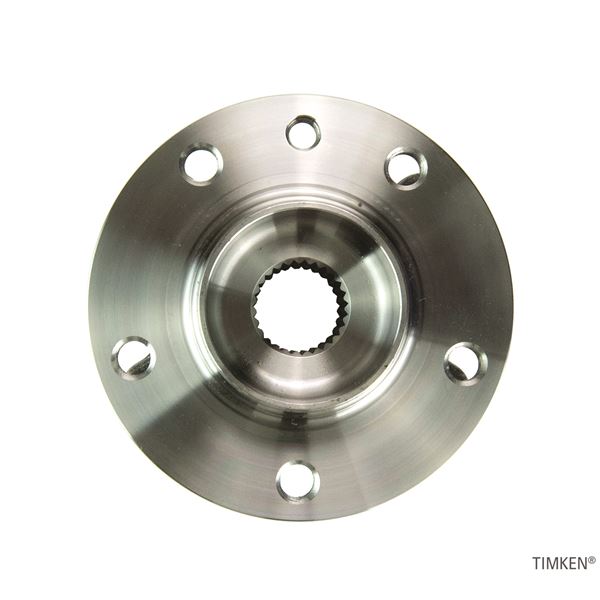

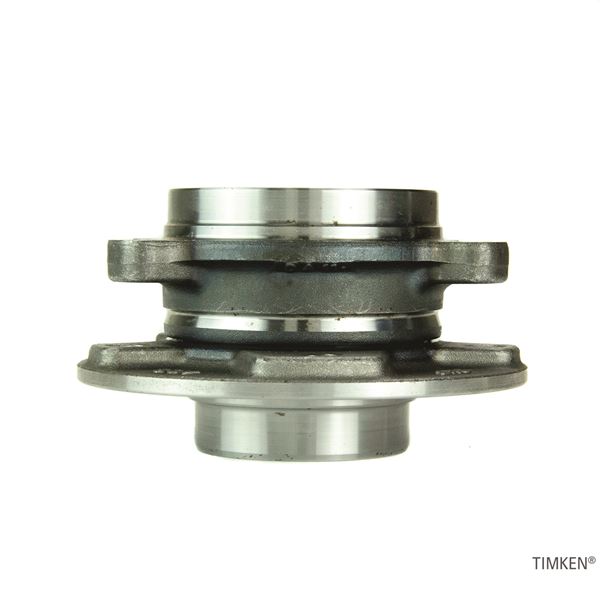

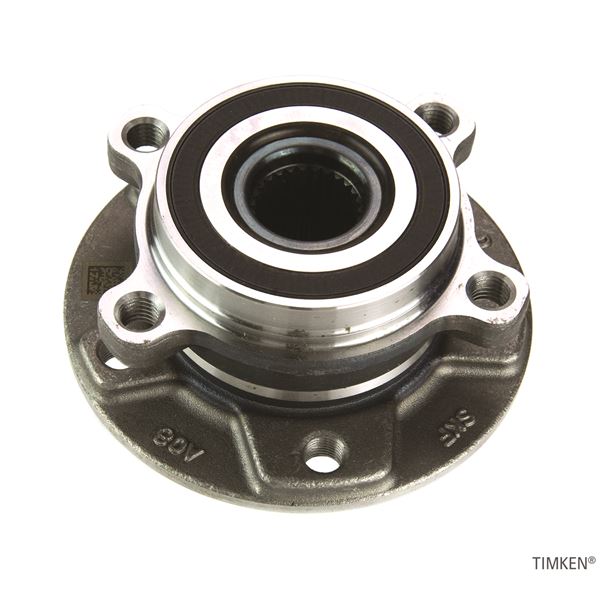

 N/A HUB UNIT BRG ASSY

Bolt Circle Diameter

 N/A 3.694

Bolt Size

 N/A M12 X 1.75

Bolt Qty

 N/A 4

Bearing Type

 N/A Ball Bearing

ABS

 N/A N

Wheel Stud Size (in.)

 N/A M12 X 1.25

Wheel Stud Qty

 N/A 5

Flange Shape

 N/A Trapezoidal

Spline Quantity

 N/A (27)

Box Dimensions

Box Height

 N/A 3.394 in

Box Width

 N/A 6.508 in

Box Length

 N/A 6.508 in

Box Weight

 N/A 5.915 lb
