 N/A To get the full fitment details go to www.timkeninfo.com.

Specifications

Country of Origin (Primary)

 N/A US

Full Timken Part Number

 N/A SP470200;A/AM-HUB BRG

Application Summary

 N/A Ford Explorer - Wheel Bearing and Hub Assembly [Front 4WD] (2002-2005) Ford Explorer - Wheel Bearing and Hub Assembly [Front AWD] (2003-2004) Ford Explorer - Wheel Bearing and Hub Assembly [Front RWD] (2002-2005) Lincoln Aviator - Wheel Bearing and Hub Assembly [Front AWD] (2003-2005) Lincoln Aviator - Wheel Bearing and Hub Assembly [Front RWD] (2003-2005) Mercury Mountaineer - Wheel Bearing and Hub Assembly [Front 4WD] (2002-2003) Mercury Mountaineer - Wheel Bearing and Hub Assembly [Front AWD] (2002-2005) Mercury Mountaineer - Wheel Bearing and Hub Assembly [Front RWD] (2002-2005)

National Popularity Code

 N/A A

Description-Short

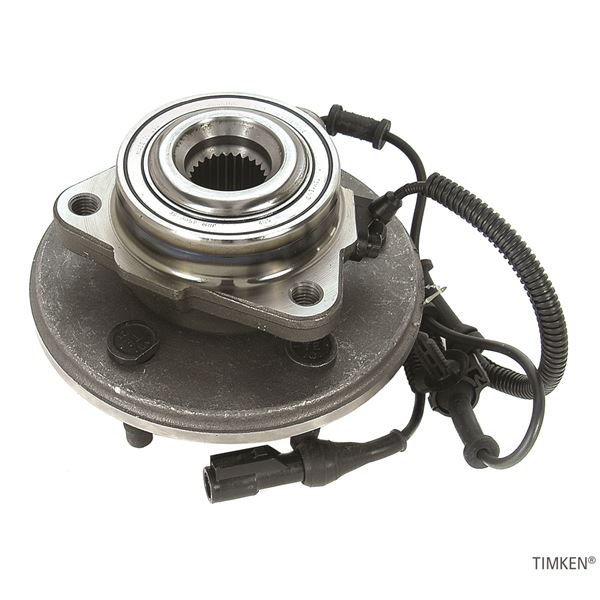

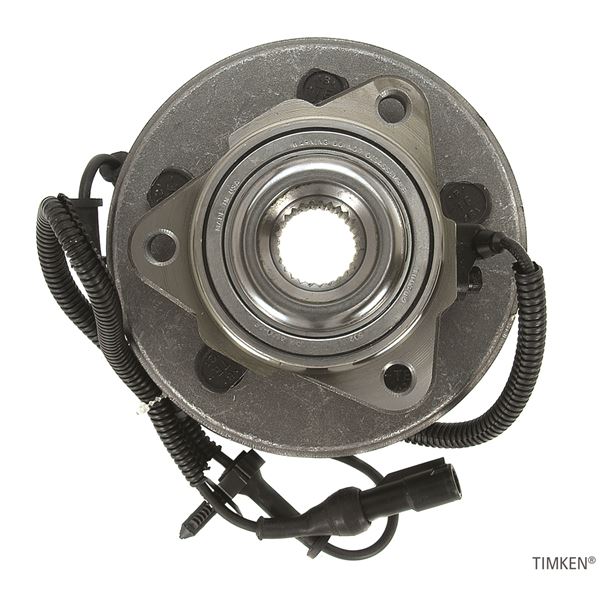

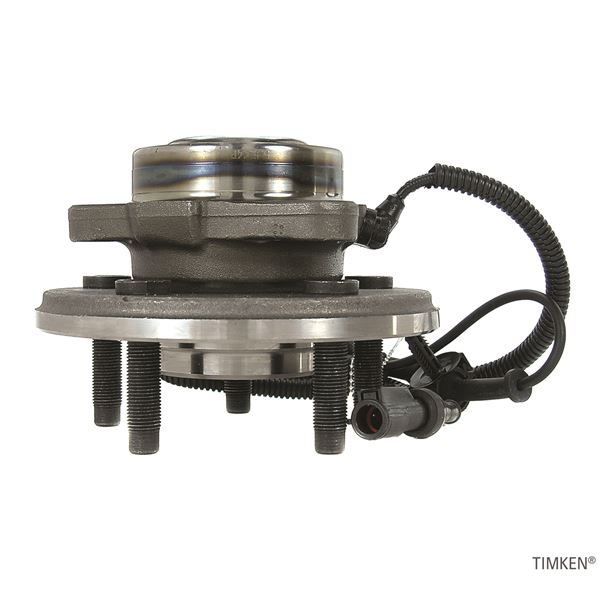

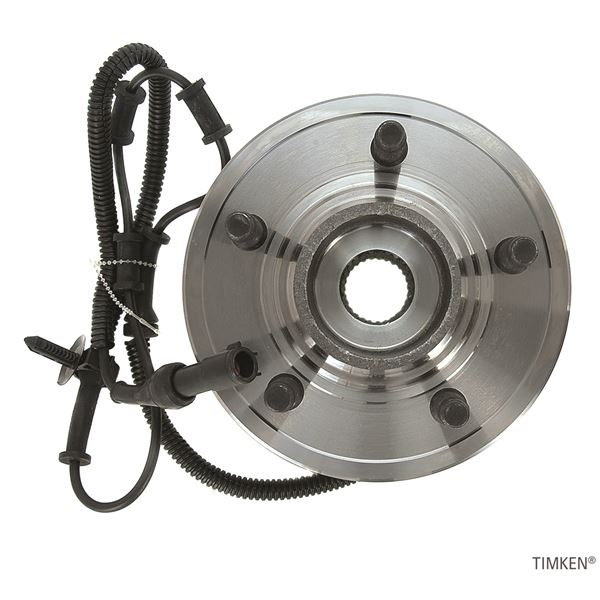

 N/A HUB UNIT BRG ASSY

Bolt Circle Diameter

 N/A 4.5

Bolt Size

 N/A M12X1.75

Bearing Type

 N/A Tapered

ABS

 N/A Y

Wheel Stud Size (in.)

 N/A 1/2-20

Wheel Studs

 N/A Y

Flange Shape

 N/A Modified

Spline Quantity

 N/A 27

Box Dimensions

Box Height

 N/A 5.32 in

Box Width

 N/A 7.5 in

Box Length

 N/A 7.5 in

Box Weight

 N/A 12.292 lb
