 N/A To get the full fitment details go to www.timkeninfo.com.

Specifications

Country of Origin (Primary)

 N/A US

Full Timken Part Number

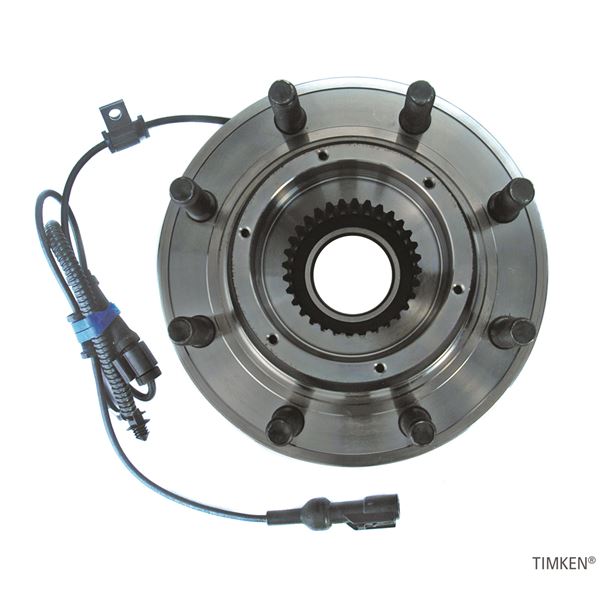

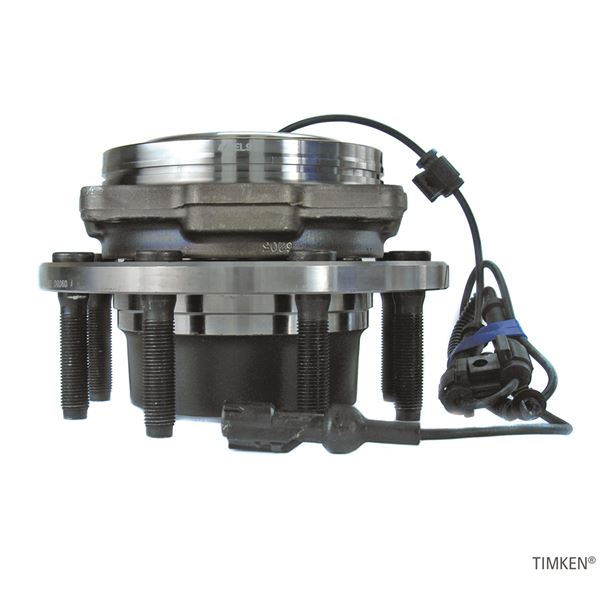

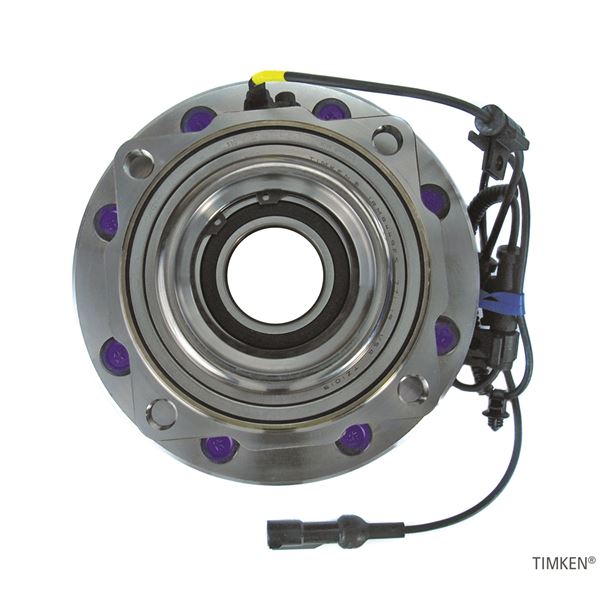

 N/A SP940200;A/AM-HUB BRG

Application Summary

 N/A Ford F-250 Super Duty - Wheel Bearing and Hub Assembly [Front 4WD] (2005-2010) Ford F-350 Super Duty - Wheel Bearing and Hub Assembly [Front 4WD] (2005-2010)

National Popularity Code

 N/A W

Description-Short

 N/A HUB UNIT BRG ASSY

Bolt Circle Diameter

 N/A 6.693

Bolt Size

 N/A M14X1.5

Bolt Qty

 N/A 4

ABS

 N/A Y

Wheel Stud Size (in.)

 N/A M14x1.5

Wheel Stud Qty

 N/A 8

Wheel Studs

 N/A Y

Flange Shape

 N/A Square

Spline Quantity

 N/A 32

Box Dimensions

Box Height

 N/A 8.75 in

Box Width

 N/A 9.5 in

Box Length

 N/A 10.25 in

Box Weight

 N/A 24.781 lb
