Unit of Measure

Specifications

Series

 N/A Expansion

Shaft Size d

 N/A 1 7/16 in

Bearing Type

 N/A Ball Bearing

Bearing Number

 N/A 1107KRS

Seal Type

 N/A Shroud Seal

Housing Construction

 N/A Two-Bolt Pillow Block

Alternate Part Name

 N/A RAKHL1 7/16

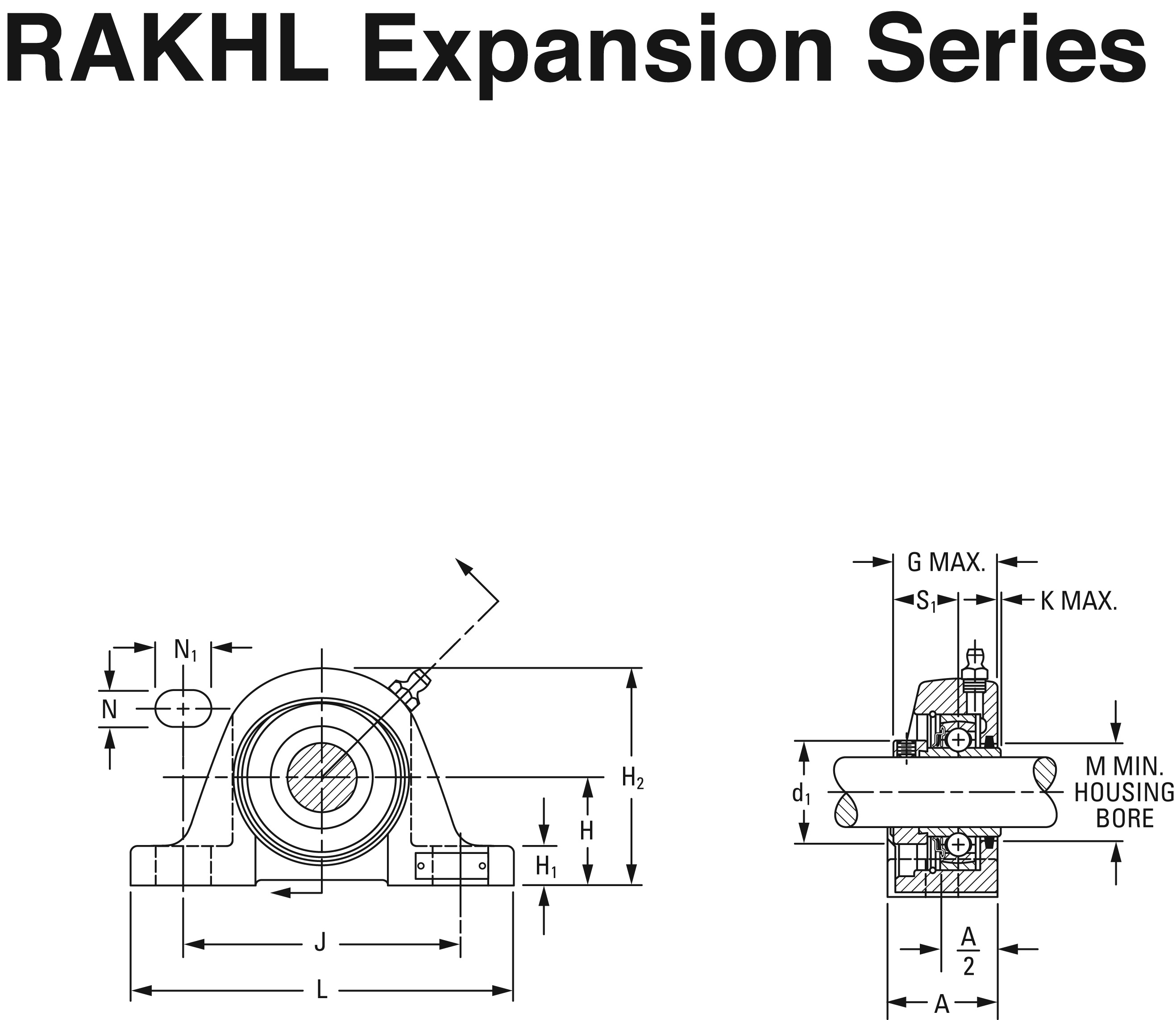

Dimensions

Base to Center Height H

 N/A 53.98 mm2.125 in

Total Length L

 N/A 201.6 mm7.937 in

Total Width A

 N/A 51.6 mm2.031 in

Bolt Hole Spacing J

 N/A 144.5 mm5.689 in

Bolt Hole Width N

 N/A 14.3 mm0.563 in

Bolt Hole Length N1

 N/A 30.2 mm1.189 in

Foot Height H1

 N/A 19 mm

Total Height H2

 N/A 106.4 mm4.189 in

Dimension d1

 N/A 54 mm2.126 in

Dimension B1

 N/A 51.2 mm2.016 in

Dimension S1

 N/A 32.35 mm1.274 in

Dimension T

 N/A 25.8 mm1.016 in

Basic Load Ratings

Static Load Rating

 N/A 15300 N3440 lbf

Dynamic Load Rating

 N/A 28500 N6400 lbf
