Unit of Measure

Specifications

Series

 N/A Heavy

Shaft Size d

 N/A 4.1875 in

Bearing Type

 N/A Ball Bearing

Bearing Number

 N/A SMN403WS

Seal Type

 N/A Shroud Seal

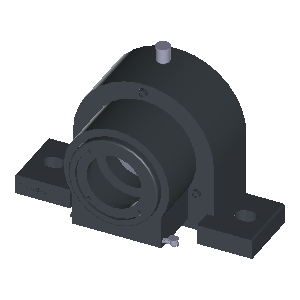

Housing Construction

 N/A Two-Bolt Pillow Block

Alternate Part Name

 N/A SAOL 4 3⁄16

Dimensions

Dimension A1

 N/A 134.1 mm5.281 in

Base to Center Height H

 N/A 165.1 mm6.5 in

Total Length L

 N/A 539.8 mm21-1/4 in

Dimension L1

 N/A 317.5 mm12.5 in

Total Width A

 N/A 158.8 mm6.2500 in

Bolt Hole Spacing J

 N/A 449.3 mm17.688 in

Bolt Hole Width N

 N/A 28.6 mm1.125 in

Bolt Hole Length N1

 N/A 38.1 mm1.5 in

Foot Height H1

 N/A 38.1 mm1 1/2 in

Dimension d1

 N/A 96.32 mm3.792 in

Dimension B1

 N/A 122.13 mm4.808 in

Dimension S1

 N/A 69.79 mm2.748 in

Dimension T

 N/A 91.3 mm3.594 in

Basic Load Ratings

Static Load Rating

 N/A 202394 N45500 lbf

Dynamic Load Rating

 N/A 253548 N57000 lbf
