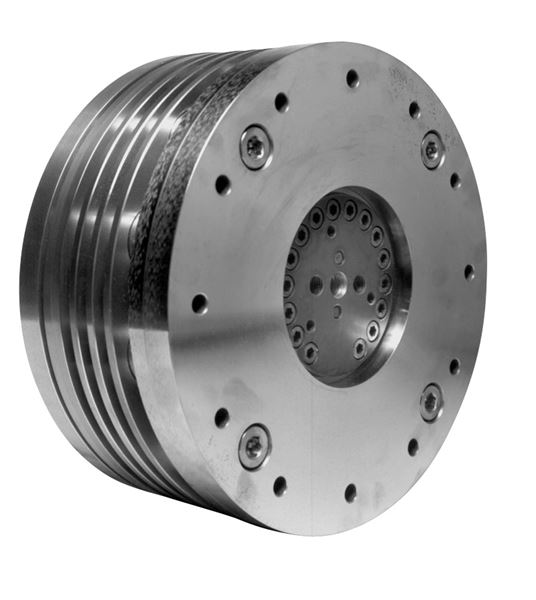

Part Number TLC-FMD28, PT Tech FMD28, 4-Disc Torque Limiting Coupling, 4-Disc, High Energy On The Timken Company

Batch CAD Cart (0) ▾

Request Information

Designed for high horsepower and high energy applications, this multi-disc torque limiting coupling remains rigid until torsional spikes occur along the drivetrain. After absorbing shockload energy, the coupling can accept another spike. No pins or resets required!

Unit of Measure

Specifications

Max Torque	N/A 12608 lb·ft
Total Inertia	N/A 71 lb·ft²
Output Inertia	N/A 5.89 lb·ft²
Weight	N/A 341 lb
Outside Diameter	N/A 16.5 in
Torque Limiter Length	N/A 6.67 in
Output Hub Diameter	N/A 6.03 in
Input Flange Thickness	N/A 1.52 in
# of Torque Pins/Blocks	N/A 4
