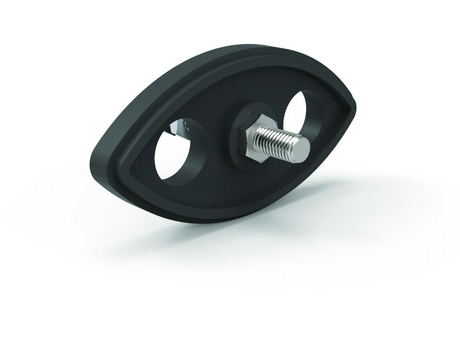

The RunRight® chain rider is made from high strength industrial polymers and are shaped for use on either side of the rider. For use with chain speeds of 5 ft/sec or less, the chain riders provide an economical and quieter solution than sprockets. Available in sets (includes idler bolt and nuts) or individually.
Unit of Measure

Specifications

Description

 N/A RCG-D-ANSI 40-GUIDE MM W/HDWR

Type

 N/A Chain Rider

Application

 N/A Chain Rider

Contents

 N/A One Complete Unit

ANSI Chain Size

 N/A 40

Chain Rider Number

 N/A P1/2-10

Use with Tensioner Size

 N/A RT 15/18-M

Dimensional Data of Related Coupling

Rider Width (Dim B)

 N/A 13.9 mm0.55 in

Adjusting Range (Dim R)

 N/A 30 to 34 mm1.18 to 1.33 in

Dimensional Data

Idler Bolt Size (Dim A)

 N/A M10
