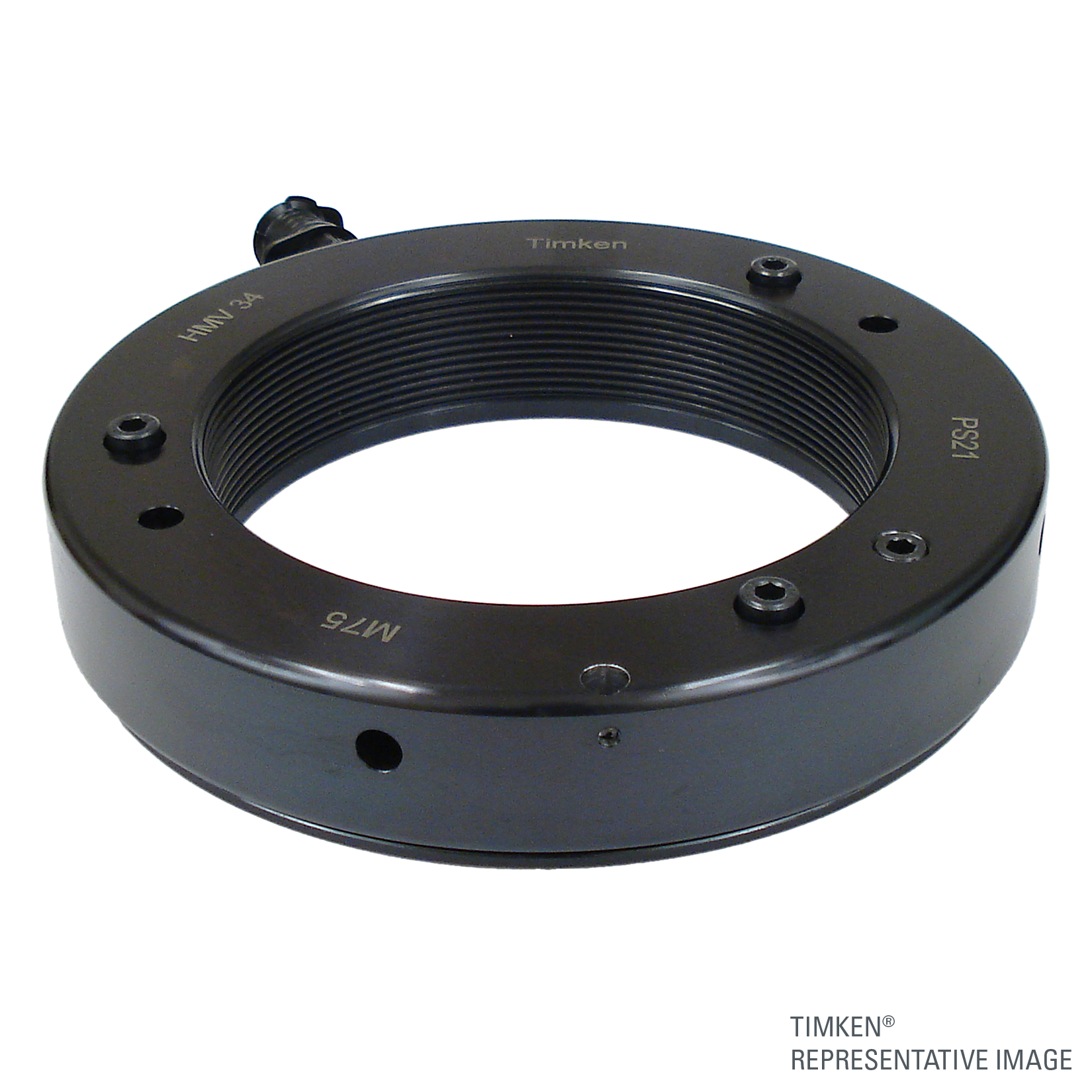

Part Number HMVC 40, Inch HMVC Hydraulic Nut On The Timken Company

Batch CAD Cart (0) ▾

Request Information Add to CAD Cart

HMVC - 10 through HMVC - 64 have American National Threads Class 3.
HMVC - 68 through HMVC - 190 have Acme General Purpose Threads Class 3G.

Unit of Measure

Specifications

Major Diameter B	N/A 7.847 in
Threads No. per Inch	N/A 8
C	N/A 11.024 in
D	N/A 1.693 in
E	N/A 9.882 in
E₁	N/A 7.913 in
A	N/A 0.315 in
Piston Length of Travel	N/A 0.276 in
Piston Area	N/A 19.4 in²
Manufacturing Part Number	N/A HMVC40
