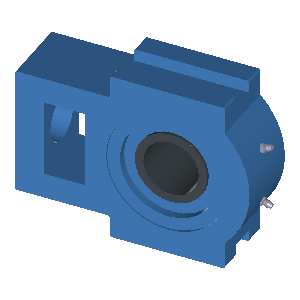

Unit of Measure

Key Dimensions

Engineering Group

 N/A Mounted Bearing

Bearing Number

 N/A 22220

Shaft Size

 N/A 3 1/2 in

Shaft Size Type

 N/A Imperial

Full Timken Part Number

 N/A TATU20K308SB TATU20K308SC TATU20K308SEB TATU20K308SEC TATU20K308SEM TATU20K308SEN TATU20K308SEO TATU20K308SET TATU20K308SM TATU20K308SN TATU20K308SO TATU20K308ST

Locking Style

 N/A Tapered Adapter

Housing Construction

 N/A Take-Up

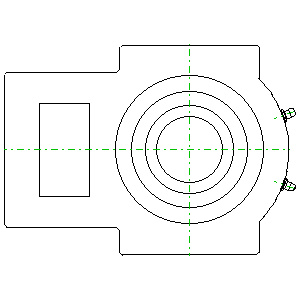

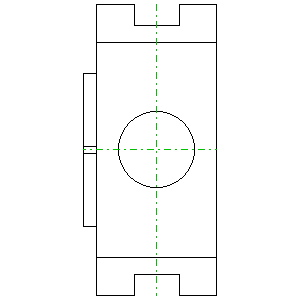

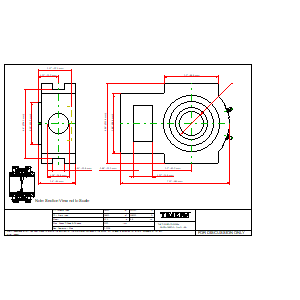

Other Dimensions

Dimension A

 N/A 4.13 in104.9 mm

Dimension C

 N/A 1.13 in28.7 mm

Dimension D

 N/A 9.44 in239.8 mm

Dimension E

 N/A 8.63 in219.2 mm

Dimension F

 N/A 2.13 in54.1 mm

Dimension G

 N/A 2.06 in52.3 mm

Dimension H

 N/A 5.12 in130 mm

Dimension J

 N/A 5.63 in143 mm

Dimension L

 N/A 11.69 in296.9 mm

Dimension M

 N/A 2.3 in58.4 mm

Dimension N

 N/A 4.14 in105.2 mm

Dimension P

 N/A 7 in177.8 mm

Dimension S

 N/A 2.06 in52.3 mm

Dimension U

 N/A 3.82 in97 mm

Radial and Thrust Factors

C0 - Static Load

 N/A 113000 lbf502000 N

C - Dynamic Load (Basic)

 N/A 97700 lbf435000 N

e - Geometry Factor

 N/A 0.24

Y1 - Geometry Factor

 N/A 2.85

Y2 - Geometry Factor

 N/A 4.24

Engineering Seal Speed

Oil Lubrication - M/N Seal

 N/A 1200 rpm

Oil Lubrication - T Seal

 N/A 2000 rpm

Oil Lubrication - B/C/O Seal

 N/A 900 rpm

Grease Lubrication - M/N Seal

 N/A 1200 rpm

Grease Lubrication - T Seal

 N/A 1600 rpm

Grease Lubrication - B/C/O Seal

 N/A 900 rpm

Engineering Bearing Attributes

Float

 N/A 0.08 in2.03 mm

Shaft Tolerance

 N/A 0.0030 in0.076 mm

Engineering Internal Radial Clearance

Eng Internal Radial Clearance - Min

 N/A 0.0030

Eng Internal Radial Clearance - Max

 N/A 0.0047

Pre Install Clearance Min

 N/A 0.0030 in0.075 mm

Pre Install Clearance Max

 N/A 0.0047 in0.120 mm
