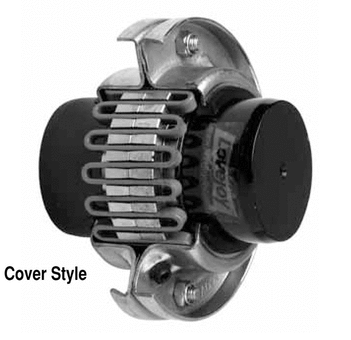

  • The Cover/Grid Assembly includes all components of the coupling except the hubs and spacers.
  • The terms "Inch" and "Metric" refer to the hardware (bolts, etc.).
  • The "Cover Set" contains the parts of the Cover/Grid Assembly without the grid spring.
  • The "Seal Kit" contains the rubber seals, gasket(s), and lube plugs.
  • "Cover Hardware" includes the fasteners that hold the cover together.
  • Grease packets are included with all Cover Sets and Cover/Grid Assemblies thru coupling size 1090.
Unit of Measure

Notes

Disclaimer

 N/A Lovejoy: CAD Models are accurate envelope dimensions only. Features such as bore size and keyway are not rendered or are only representative. Contact Lovejoy Technical Support or refer to product catalogs for details.

Specifications

Description

 N/A 1070-CVR/GRID ASSY-VERT MM

Type

 N/A Grid

Material

 N/A Aluminum and Alloy Steel

Style

 N/A Vertical

Color

 N/A Silver/Black

Weight

 N/A 3.43 lb

Dimensional Data

Height

 N/A 6.810 in

Depth

 N/A 6.810 in

Width

 N/A 6.810 in

Cubic inches

 N/A 315.82124 in³

Dimensional Data of Related Coupling

Outside Diameter

 N/A 6.810 in172.97 mm

Dimension L (Horizontal Style Cover)

 N/A 2.660 in67.56 mm

Coupling Part Numbers

Lovejoy® Grid Coupling Size

 N/A 1070

Falk™ Steelflex® Horizontal Cover Style Coupling Part Number

 N/A 1070T10

Morse® / Browning® Grid-Flex Horizontal Cover Style Coupling Part Number

 N/A GF2070H

Dodge® Grid-Lign® Horizontal Cover Style Coupling Part Number

 N/A 1070T10

Kop-Flex® / Kop-Grid® Horizontal Cover Style Coupling Part Number

 N/A 1070H

Falk™ Steelflex® Vertical Cover Style Coupling Part Number

 N/A 1070T20

Morse® / Browning® Grid-Flex Vertical Cover Style Coupling Part Number

 N/A GF2070V

Dodge® Grid-Lign® Vertical Cover Style Coupling Part Number

 N/A 1070T20

Kop-Flex® / Kop-Grid® Vertical Cover Style Coupling Part Number

 N/A 1070V
