  • The Cover/Grid Assembly includes all components of the coupling except the hubs and spacers.
  • The terms "Inch" and "Metric" refer to the hardware (bolts, etc.).
  • The "Cover Set" contains the parts of the Cover/Grid Assembly without the grid spring.
  • The "Seal Kit" contains the rubber seals, gasket(s), and lube plugs.
  • "Cover Hardware" includes the fasteners that hold the cover together.
  • Grease packets are included with all Cover Sets and Cover/Grid Assemblies thru coupling size 1090.
Unit of Measure

Notes

Disclaimer

 N/A Lovejoy: CAD Models are accurate envelope dimensions only. Features such as bore size and keyway are not rendered or are only representative. Contact Lovejoy Technical Support or refer to product catalogs for details.

Specifications

Description

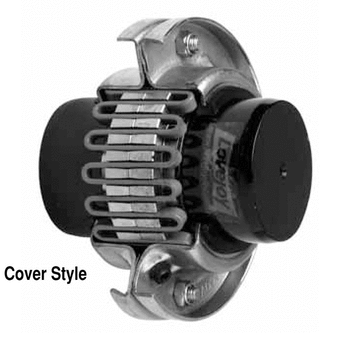

 N/A 1040-CVR/GRID ASSY-VERT IN

Type

 N/A Grid

Material

 N/A Aluminum and Alloy Steel

Style

 N/A Vertical

Color

 N/A Silver/Black

Weight

 N/A 1.50 lb

Dimensional Data

Height

 N/A 5.06 in

Depth

 N/A 5.060 in

Width

 N/A 5.060 in

Cubic inches

 N/A 129.55422 in³

Dimensional Data of Related Coupling

Outside Diameter

 N/A 5.060 in128.52 mm

Dimension L (Horizontal Style Cover)

 N/A 2.060 in52.32 mm

Coupling Part Numbers

Lovejoy® Grid Coupling Size

 N/A 1040

Falk™ Steelflex® Horizontal Cover Style Coupling Part Number

 N/A 1040T10

Morse® / Browning® Grid-Flex Horizontal Cover Style Coupling Part Number

 N/A GF2040H

Dodge® Grid-Lign® Horizontal Cover Style Coupling Part Number

 N/A 1040T10

Kop-Flex® / Kop-Grid® Horizontal Cover Style Coupling Part Number

 N/A 1040H

Falk™ Steelflex® Vertical Cover Style Coupling Part Number

 N/A 1040T20

Morse® / Browning® Grid-Flex Vertical Cover Style Coupling Part Number

 N/A GF2040V

Dodge® Grid-Lign® Vertical Cover Style Coupling Part Number

 N/A 1040T20

Kop-Flex® / Kop-Grid® Vertical Cover Style Coupling Part Number

 N/A 1040V
