Unit of Measure

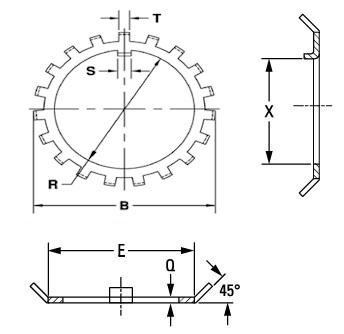

Key Dimensions

R

 N/A 0.616 in

E

 N/A 0.813 in

B

 N/A 1.156 in29.36 mm

S

 N/A 0.12 in

X

 N/A 0.501 in

T

 N/A 0.12 in

Q

 N/A 0.048 in1.22 mm

No. of Tangs

 N/A 11

Manufacturing Part Number

 N/A TW102
