Specifications

Bore d

 N/A 12 mm

Number of Rows

 N/A Double Row

Features

 N/A Seals

Bore Shape

 N/A Round

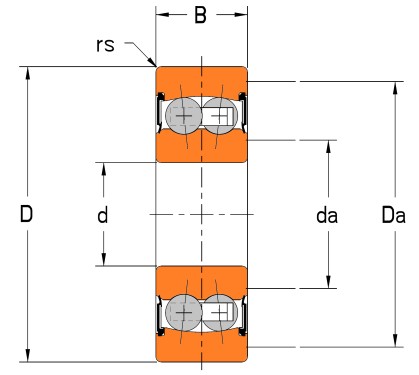

Dimensions

Outside Diameter D

 N/A 32 mm

Outside Ring Width B

 N/A 14 mm

Radius Rs min

 N/A 0.6 mm

Shaft Shoulder Diameter da min

 N/A 16.2 mm

Housing Shoulder Diameter Da max

 N/A 27.8 mm

Misalignment Angle

 N/A 1.5 º

Contact Angle

 N/A 13.95 º

Basic Load Ratings

Dynamic Load Rating

 N/A 5800 N

Static Load Rating

 N/A 1300 N

Fatigue Load Limit

 N/A 80 N

Factors

Limiting Speed

 N/A 15000 rpm
