Request Information Add to CAD Cart

Specifications

Bore d

 N/A 35 mm

Number of Rows

 N/A Double Row

Features

 N/A Seals

Bore Shape

 N/A Round

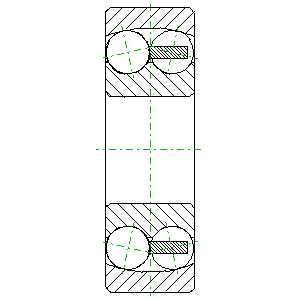

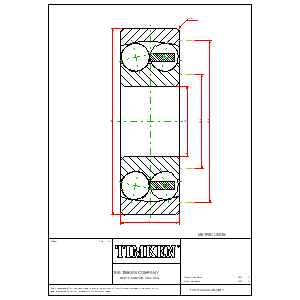

Dimensions

Outside Diameter D

 N/A 72 mm

Outside Ring Width B

 N/A 23 mm

Radius Rs min

 N/A 1.1 mm

Shaft Shoulder Diameter da min

 N/A 42 mm

Housing Shoulder Diameter Da max

 N/A 65 mm

Misalignment Angle

 N/A 1.5 º

Contact Angle

 N/A 8.51 º

Basic Load Ratings

Dynamic Load Rating

 N/A 16100 N

Static Load Rating

 N/A 5110 N

Fatigue Load Limit

 N/A 325 N

Factors

Limiting Speed

 N/A 5600 rpm
