Unit of Measure

Specifications

Bore Size

 N/A 3/4 in

Seal Type

 N/A Standard Seal

Housing Material

 N/A White Thermoplastic (Polymer)

Bearing Number

 N/A SUC204-12/F

Lubrication Type

 N/A Standard Food Safe Grease

Locking Style

 N/A Set Screw Locking

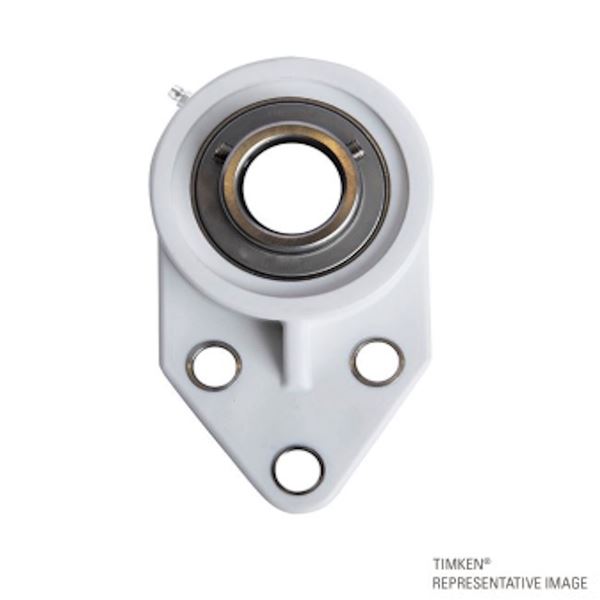

Housing Construction

 N/A Three-Bolt Flange

Bearing Style

 N/A Ball Bearing

Dimensions

Total Length L

 N/A 2.500 in63.5 mm

Total Height H

 N/A 4.252 in108.0 mm

Total Width A0

 N/A 1.326 in33.7 mm

Bolt Hole Spacing J

 N/A 1.500 in38.1 mm

Bolt Hole Size N

 N/A 0.433 in11.0 mm

Flange Thickness A1

 N/A 0.449 in11.4 mm

Housing Width A

 N/A 1.028 in26.1 mm

Dimension A2

 N/A 0.606 in15.4 mm

Dimension H1

 N/A 1.689 in42.9 mm

Dimension J1

 N/A 0.874 in22.2 mm

Center of Bearing from Bearing End S

 N/A 0.500 in12.7 mm

Inner Ring Width B

 N/A 1.220 in31.0 mm

Basic Load Ratings

Dynamic Load Rating

 N/A 2451 lbf10900 N

Static Load Rating

 N/A 1203 lbf5350 N
