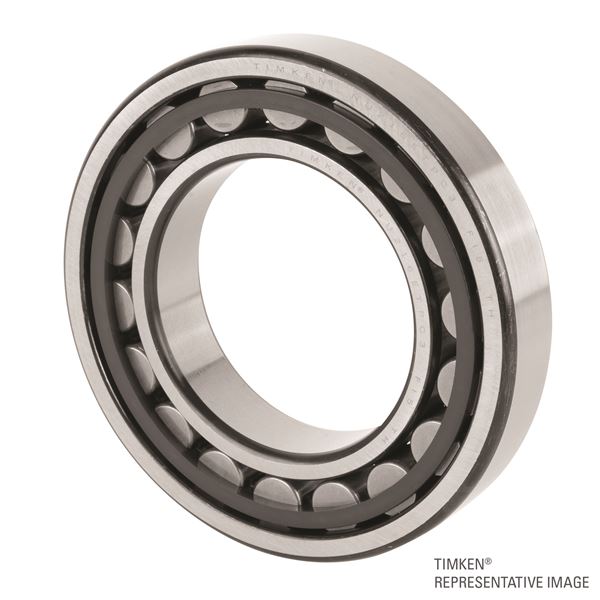

Unit of Measure

Specifications

Cage Type

 N/A Polymer Cage

Design Units

 N/A Metric

d - Bore

 N/A 15 mm

Type

 N/A NJ

Dimensions

D - Outer Diameter

 N/A 35 mm1.378 in

C - Inner Ring Width

 N/A 11 mm0.4331 in

B - Outer Ring Width

 N/A 11 mm0.4331 in

Basic Load Ratings

C0 - Static Radial Rating

 N/A 11200 N
C - Dynamic Radial Rating1 N/A 13600 N

Factors

Reference Thermal Speed Rating (Grease)

 N/A 14200 rpm
Reference Thermal Speed Rating (Oil)2 N/A 17400 rpm

Abutment and Fillet Dimensions

R - Inner Ring "To Clear" Radius3 N/A 0.3 mm0.012 in
r - Outer Ring "To Clear" Radius4 N/A 0.6 mm0.024 in

da - Inner Ring Backing Diameter

 N/A 18.2 mm0.7165 in

Da - Outer Ring Backing Diameter

 N/A 31.3 mm1.2323 in
  • 1 Based on 1 X 106 L10 life for the ISO life calculation method.
  • 2 See thermal speed ratings in the engineering section.
  • 3 Maximum housing fillet radius that bearing corners will clear.
  • 4 Maximum shaft fillet radius that bearing corners will clear.
