Unit of Measure

Specifications

Series

 N/A Light-Duty

Shaft Size d

 N/A 0.6250 in

Bearing Type

 N/A Ball Bearing

Bearing Number

 N/A RA010RRB

Seal Type

 N/A Shroud Seal

Housing Construction

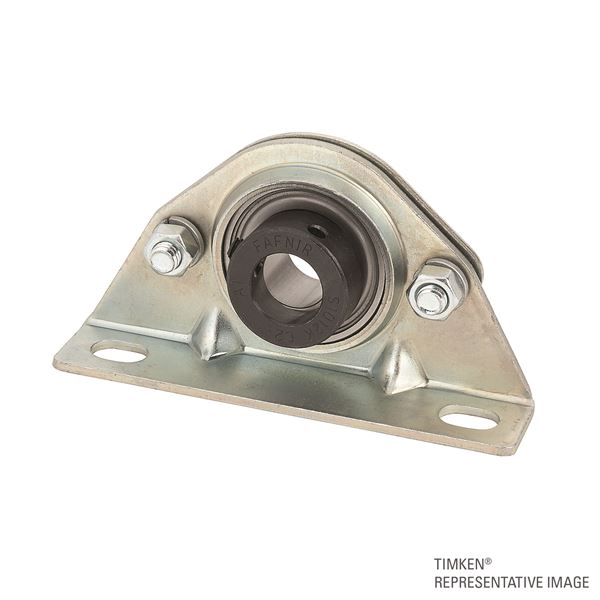

 N/A Two-Bolt Pillow Block

Alternate Part Name

 N/A PBS 5/8

Dimensions

Dimension A1

 N/A 1.9 mm0.075 in

Base to Center Height H

 N/A 30.2 mm1.188 in

Total Length L

 N/A 123.8 mm4.875 in

Total Width A

 N/A 25.4 mm1 in

Bolt Hole Spacing J

 N/A 92.1 mm3.625 in

Bolt Hole Width N

 N/A 10.3 mm0.406 in

Bolt Hole Length N1

 N/A 15.9 mm0.625 in

Foot Height H1

 N/A 2.6 mm0.104 in

Total Height H2

 N/A 59.5 mm2.344 in

Dimension d1

 N/A 28.6 mm1.126 in

Dimension B1

 N/A 28.6 mm1.126 in

Dimension S1

 N/A 22.1 mm0.87 in

Basic Load Ratings

Static Load Rating

 N/A 4700 N1070 lbf

Dynamic Load Rating

 N/A 10700 N2380 lbf
