Unit of Measure

Specifications

Series

 N/A Industrial

Shaft Size d

 N/A 0.6250 in

Bearing Type

 N/A Ball Bearing

Bearing Number

 N/A G1010KRRB TDCF

Seal Type

 N/A Shroud Seal

Housing Construction

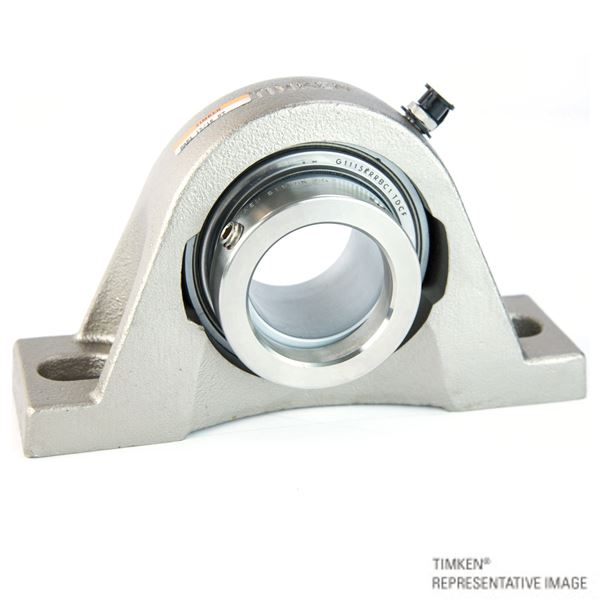

 N/A Two-Bolt Pillow Block

Alternate Part Name

 N/A RAK5/8 NT

Dimensions

Base to Center Height H

 N/A 26.99 mm1.063 in

Total Length L

 N/A 123.8 mm4.874 in

Total Width A

 N/A 30.2 mm1.189 in

Bolt Hole Spacing J

 N/A 92.1 mm3.626 in

Bolt Hole Width N

 N/A 11.1 mm0.437 in

Bolt Hole Length N1

 N/A 22.2 mm0.874 in

Foot Height H1

 N/A 8.7 mm

Total Height H2

 N/A 53.2 mm2.094 in

Dimension d1

 N/A 28.6 mm1.126 in

Dimension B1

 N/A 37.3 mm1.469 in

Dimension S1

 N/A 23.4 mm0.921 in

Dimension T

 N/A 15.1 mm0.594 in

Basic Load Ratings

Static Load Rating

 N/A 4700 N1070 lbf

Dynamic Load Rating

 N/A 10700 N2380 lbf
