Unit of Measure

Specifications

Series

 N/A Expansion

Shaft Size d

 N/A 1 3/16 in

Bearing Type

 N/A Ball Bearing

Bearing Number

 N/A 1103KRS

Seal Type

 N/A Shroud Seal

Housing Construction

 N/A Two-Bolt Pillow Block

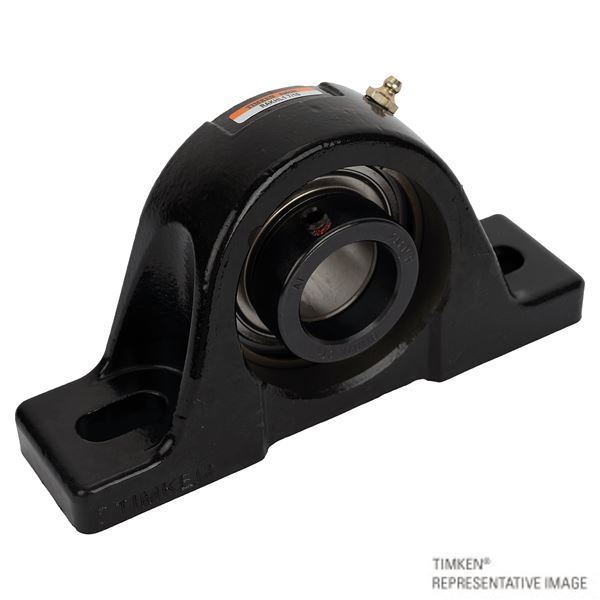

Alternate Part Name

 N/A RAKHL1 3/16

Dimensions

Base to Center Height H

 N/A 47.63 mm1.875 in

Total Length L

 N/A 174.6 mm6.874 in

Total Width A

 N/A 50.8 mm2 in

Bolt Hole Spacing J

 N/A 127 mm5 in

Bolt Hole Width N

 N/A 14.3 mm0.563 in

Bolt Hole Length N1

 N/A 25.4 mm1 in

Foot Height H1

 N/A 17.5 mm

Total Height H2

 N/A 96.8 mm3.811 in

Dimension d1

 N/A 44.1 mm1.736 in

Dimension B1

 N/A 48.4 mm1.906 in

Dimension S1

 N/A 30.1 mm1.185 in

Dimension T

 N/A 25.4 mm1.000 in

Basic Load Ratings

Static Load Rating

 N/A 12600 N2840 lbf

Dynamic Load Rating

 N/A 21600 N4850 lbf
