Unit of Measure

Specifications

Series

 N/A PS

Shaft Size d

 N/A 3/4 in

Bearing Type

 N/A Ball Bearing

Bearing Number

 N/A GKY012RRB

Seal Type

 N/A Shroud Seal

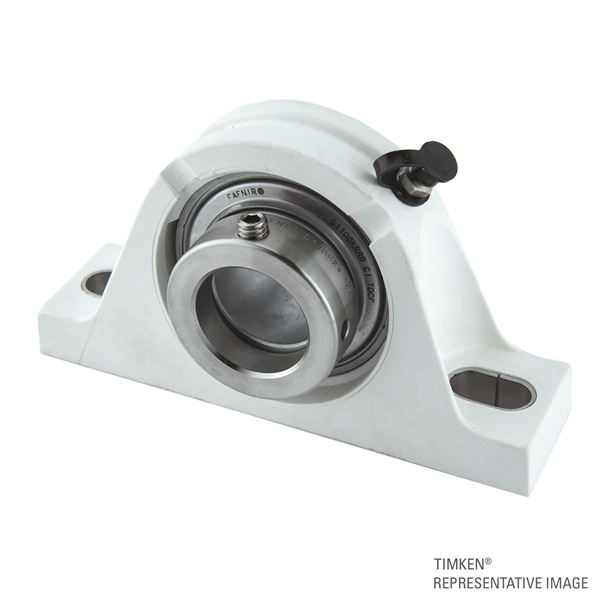

Housing Construction

 N/A Two-Bolt Pillow Block

Alternate Part Name

 N/A KAS 3/4

Dimensions

Base to Center Height H

 N/A 33.34 mm1.938 in

Total Length L

 N/A 127 mm5 in

Total Width A

 N/A 33.3 mm1.311 in

Bolt Hole Spacing J

 N/A 96 mm3.781 in

Bolt Hole Width N

 N/A 11.1 mm0.437 in

Bolt Hole Length N1

 N/A 20.2 mm0.795 in

Foot Height H1

 N/A 13.5 mm

Total Height H2

 N/A 64.3 mm2.531 in

Inside Ring Width B

 N/A 25.15 mm0.99 in

Dimension S1

 N/A 18.15 mm0.714 in

Dimension F

 N/A 28.52 mm1.123 in

Basic Load Ratings

Static Load Rating

 N/A 890 N200 lbf
