Unit of Measure

Specifications

Series

 N/A Industrial

Shaft Size d

 N/A 2 in

Bearing Type

 N/A Ball Bearing

Bearing Number

 N/A GY1200KRRB SGT

Seal Type

 N/A Shroud Seal

Housing Construction

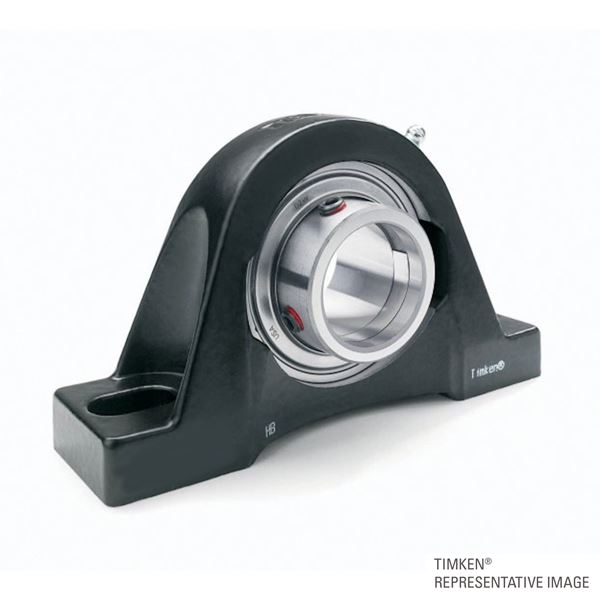

 N/A Two-Bolt Pillow Block

Alternate Part Name

 N/A YAK2 SGT

Dimensions

Base to Center Height H

 N/A 61.91 mm2.437 in

Total Length L

 N/A 222.3 mm8.752 in

Total Width A

 N/A 60.3 mm2.374 in

Bolt Hole Spacing J

 N/A 176.2 mm6.937 in

Bolt Hole Width N

 N/A 18.3 mm0.72 in

Bolt Hole Length N1

 N/A 29.4 mm1.157 in

Foot Height H1

 N/A 19.1 mm

Total Height H2

 N/A 126.2 mm4.969 in

Inside Ring Width B

 N/A 55.55 mm2.187 in

Dimension S1

 N/A 33.32 mm1.312 in

Dimension F

 N/A 69.77 mm2.747 in

Basic Load Ratings

Static Load Rating

 N/A 29200 N6570 lbf

Dynamic Load Rating

 N/A 48100 N10800 lbf
