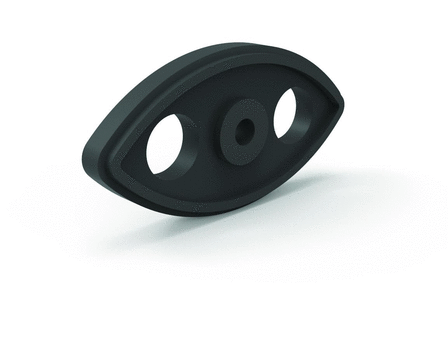

The RunRight® chain rider is made from high strength industrial polymers and are shaped for use on either side of the rider. For use with chain speeds of 5 ft/sec or less, the chain riders provide an economical and quieter solution than sprockets. Available in sets (includes idler bolt and nuts) or individually.

Unit of Measure

Specifications

Description

N/A RCG-ANSI 50-GUIDE IN

Type

N/A Chain Rider

Application

N/A Chain Rider

Contents

N/A One Complete Unit

UPC Number

N/A 85255

ANSI Chain Size

N/A 50

Chain Rider Number

N/A P5/8-1/2

Use with Tensioner Size

N/A RT 15/18

Dimensional Data of Related Coupling

Rider Width (Dim B)

N/A 16.6 mm0.65 in

Dimensional Data

For Idler Bolt

N/A 5/8"
