Unit of Measure

Specifications

Oil Holes in Retainer

 N/A No

d - Bore Diameter

 N/A 1.7568 in

Bearing Type

 N/A Thrust Tapered Roller Bearings - TTSPL

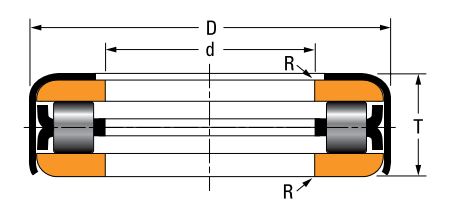

Dimensions

D - Bearing O.D.

 N/A 3 in76.2 mm

T - Bearing Width

 N/A 0.43 in10.922 mm

R - Fillet Radius Shaft (Max)

 N/A 0.03 in0.800 mm

Basic Load Ratings

Steering Pivot Rating

 N/A 7100 lbf31600 N
