Unit of Measure

Key Dimensions

Bore (d)

 N/A 7.0000 in

Bearing Type

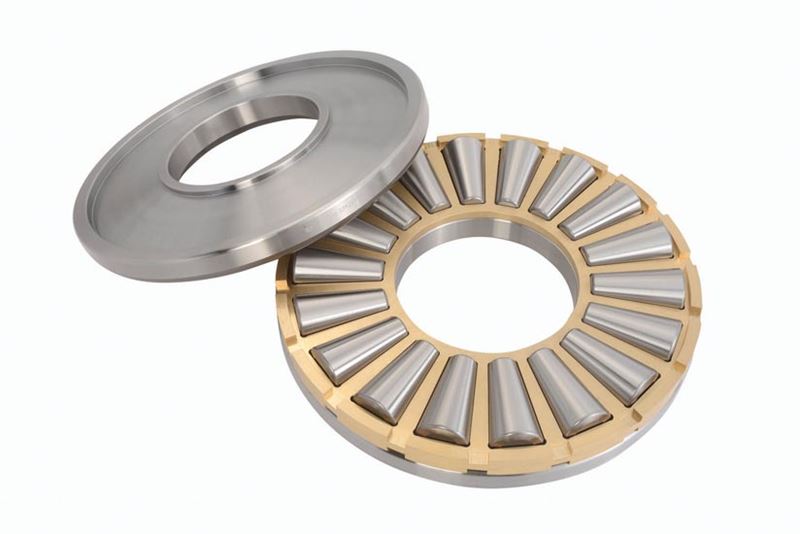

 N/A Thrust Tapered Roller Bearings - TTHD

Bearing Configuration

 N/A Thrust TTHD - with cage, but no roller smaller-end ribs

O.D. (D)

 N/A 17.0000 in431.800 mm

Width (T)

 N/A 4 in101.6 mm

Other Dimensions

Max Shaft Fillet Radius

 N/A 0.25 in6.4 mm

Max Housing Fillet Radius

 N/A 0.25 in6.4 mm

Ratings

Static Axial Load Rating (Ca0)

 N/A 3060000 lbf13600000 N

Dynamic Axial Rating - 90M Revs (Ca90)

 N/A 231000 lbf1030000 N
