Unit of Measure

Key Dimensions

Bore (d)

 N/A 15.5 in

Bearing Type

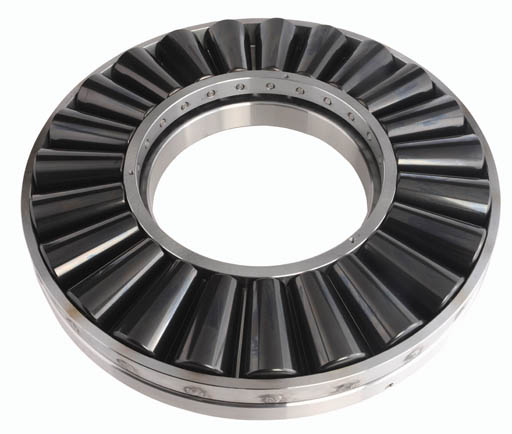

 N/A Thrust Tapered Roller Bearings - TTHDFL-V-Flat

O.D. (D)

 N/A 19.5000 in495.300 mm

Width (T)

 N/A 1.75 in44.45 mm

Other Dimensions

T1 - Ring Thickness

 N/A 0.439 in11.15 mm

D1 - Small Diameter O.D.

 N/A 19.5 in495.3 mm

d1 - Large Bore I.D.

 N/A 15.5 in393.7 mm

Max Shaft Fillet Radius

 N/A 0.13 in3.30 mm

Max Housing Fillet Radius

 N/A 0.13 in3.3 mm

H - Shoulder Diameter - Shaft

 N/A 18.57 in471.6 mm

E - Shoulder Diameter - Housing

 N/A 16.07 in408.3 mm

Ratings

Static Axial Load Rating (Ca0)

 N/A 1550000 lbf6900000 N

Dynamic Axial Rating - 90M Revs (Ca90)

 N/A 83700 lbf370000 N
