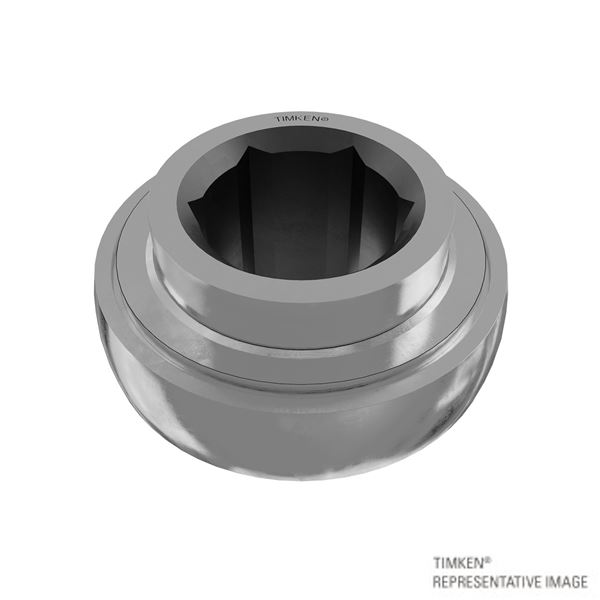

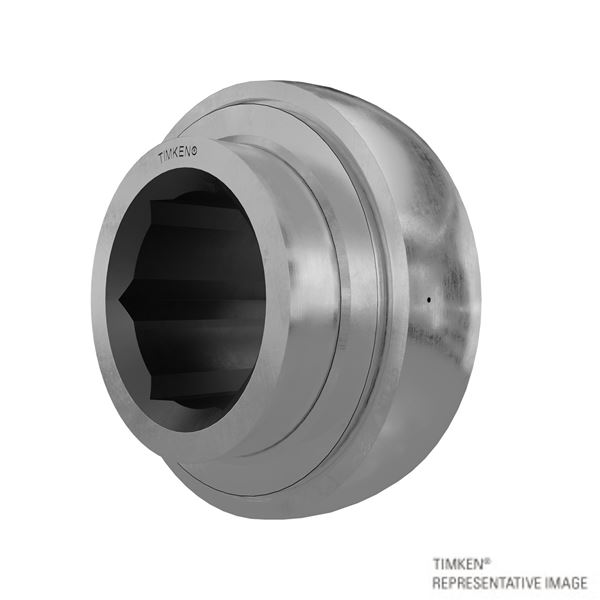

- Designed to be used for outer or inner ring rotation in low-speed, moderately-loaded applications, primarily in agricultural implements and conveyors.
- Tolerances of the hex bore are suitable for mounting on cold rolled hex shafting.
- Main advantage is ease of mounting. Except for axial positioning by adjacent parts, no collars, setscrews or other locking devices are required to lock the inner ring to the hex shaft.
- Utilize the R-Type shroud seal.
Unit of Measure

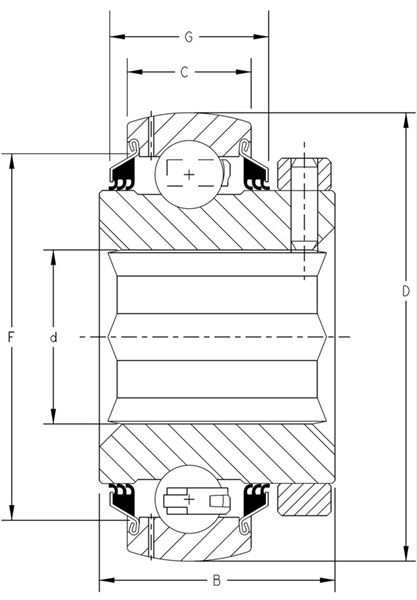

Key Dimensions
Hex Shaft Size |
N/A 1.8 in |
A - Across Flats |
N/A 44 mm1.75 in |
d - Across corners min |
N/A 51 mm2.02 in |
O.D. (D) |
N/A 100 mm3.94 in |
Width (B) |
N/A 57 mm2.25 in |
Extended Dynamic Load Rating (Ce) |
N/A 39000 N8800 lbf |
