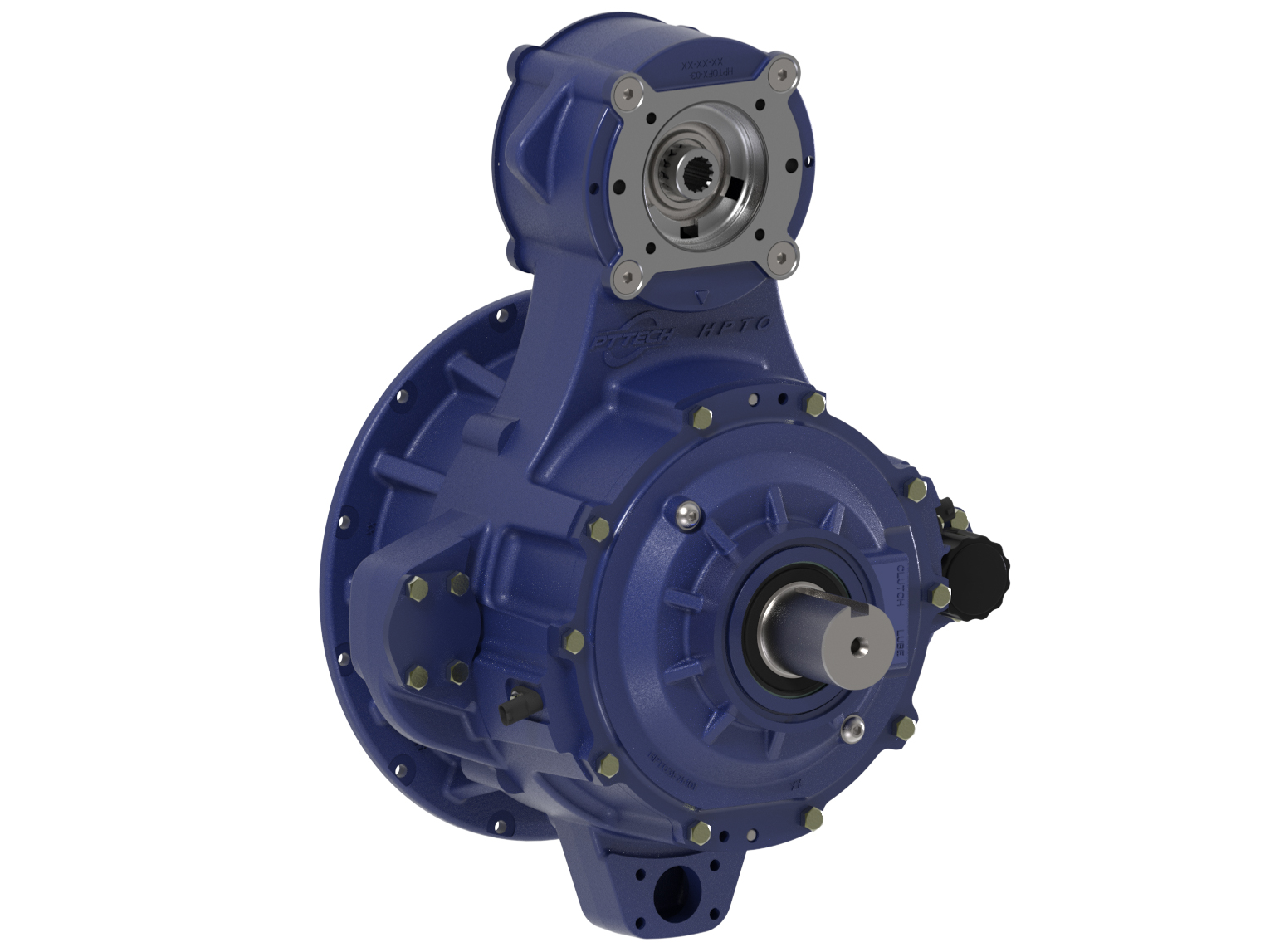

  • HPTO31S2-MRA-V-Angle-R
This clutch is a Gen3 quality-crafted, power dense solution for your drivetrain, now in a smaller package. All units are sold with the PT Tech Clutch Controller and pump tower variants come in VG (2 Pump Pads), FX (4 Pump Pads), or High Output FX (4 Pump Pads).
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Part Number

Engine Power (Hp)

Max Engine Torque

Max Speed Input

Inlet Pressure

Weight

CAD

HPTO31S1-2 Pump Pads N/A 80 to 350 N/A 1150 lb·ft N/A 3200 rpm N/A 550 to 1000 psi N/A 790 lb N/A CAD Icon (for items table)
HPTO31S2-2 Pump Pads N/A 80 to 350 N/A 1150 lb·ft N/A 3200 rpm N/A 550 to 1000 psi N/A 790 lb N/A CAD Icon (for items table)
HPTO31S3-2 Pump Pads N/A 80 to 350 N/A 1150 lb·ft N/A 3200 rpm N/A 550 to 1000 psi N/A 790 lb N/A CAD Icon (for items table)
HPTO31S1-4 Pump Pads N/A 80 to 350 N/A 1150 lb·ft N/A 3200 rpm N/A 550 to 1000 psi N/A 790 lb N/A CAD Icon (for items table)
HPTO31S2-4 Pump Pads N/A 80 to 350 N/A 1150 lb·ft N/A 3200 rpm N/A 550 to 1000 psi N/A 790 lb N/A CAD Icon (for items table)
HPTO31S3-4 Pump Pads N/A 80 to 350 N/A 1150 lb·ft N/A 3200 rpm N/A 550 to 1000 psi N/A 790 lb N/A CAD Icon (for items table)
