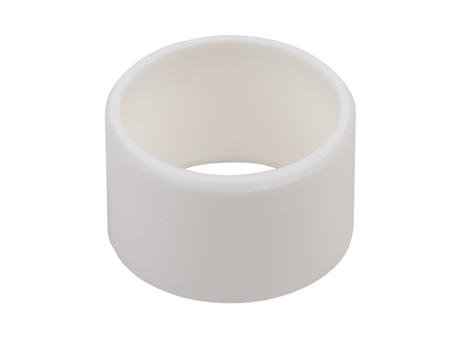

GGB EP22 bushes On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

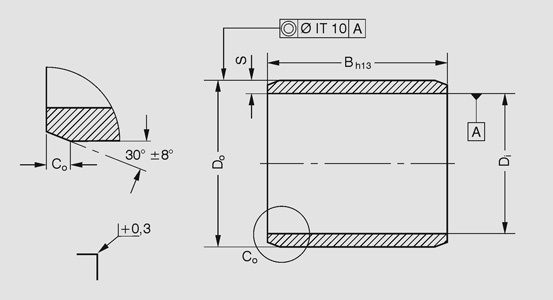

Part Number	B Middle h13 Tolerance	Optimal Clearance	Do	Di	ep	CAD
0806EP22	N/A 5.91 mm	N/A 0.05 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
0808EP22	N/A 7.89 mm	N/A 0.05 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
0810EP22	N/A 9.89 mm	N/A 0.05 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
0812EP22	N/A 11.865 mm	N/A 0.05 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
0815EP22	N/A 11.865 mm	N/A 0.05 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
1004EP22	N/A 3.91 mm	N/A 0.06 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A
1006EP22	N/A 5.91 mm	N/A 0.06 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A
1008EP22	N/A 7.89 mm	N/A 0.06 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A
1010EP22	N/A 9.89 mm	N/A 0.06 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A
1015EP22	N/A 14.865 mm	N/A 0.06 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A
1020EP22	N/A 19.835 mm	N/A 0.06 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A
1210EP22	N/A 9.89 mm	N/A 0.07 mm	N/A 14 mm	N/A 12 mm	N/A 1 mm	N/A
1212EP22	N/A 11.865 mm	N/A 0.07 mm	N/A 14 mm	N/A 12 mm	N/A 1 mm	N/A
1215EP22	N/A 14.865 mm	N/A 0.07 mm	N/A 14 mm	N/A 12 mm	N/A 1 mm	N/A
1220EP22	N/A 19.835 mm	N/A 0.07 mm	N/A 14 mm	N/A 12 mm	N/A 1 mm	N/A
1415EP22	N/A 14.865 mm	N/A 0.08 mm	N/A 16 mm	N/A 14 mm	N/A 1 mm	N/A
1420EP22	N/A 19.835 mm	N/A 0.08 mm	N/A 16 mm	N/A 14 mm	N/A 1 mm	N/A
1425EP22	N/A 24.835 mm	N/A 0.08 mm	N/A 16 mm	N/A 14 mm	N/A 1 mm	N/A
1515EP22	N/A 14.865 mm	N/A 0.085 mm	N/A 17 mm	N/A 15 mm	N/A 1 mm	N/A
1520EP22	N/A 19.835 mm	N/A 0.085 mm	N/A 17 mm	N/A 15 mm	N/A 1 mm	N/A
1525EP22	N/A 24.835 mm	N/A 0.085 mm	N/A 17 mm	N/A 15 mm	N/A 1 mm	N/A
2010EP22	N/A 9.89 mm	N/A 0.11 mm	N/A 23 mm	N/A 20 mm	N/A 1.5 mm	N/A
2015EP22	N/A 14.865 mm	N/A 0.11 mm	N/A 23 mm	N/A 20 mm	N/A 1.5 mm	N/A
2020EP22	N/A 19.835 mm	N/A 0.11 mm	N/A 23 mm	N/A 20 mm	N/A 1.5 mm	N/A
2030EP22	N/A 29.835 mm	N/A 0.11 mm	N/A 23 mm	N/A 20 mm	N/A 1.5 mm	N/A

Part Number

B Middle h13 Tolerance

Optimal Clearance

Do

Di

ep

CAD

0806EP22

N/A 5.91 mm

N/A 0.05 mm

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

0808EP22

N/A 7.89 mm

N/A 0.05 mm

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

0810EP22

N/A 9.89 mm

N/A 0.05 mm

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

0812EP22

N/A 11.865 mm

N/A 0.05 mm

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

0815EP22

N/A 11.865 mm

N/A 0.05 mm

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

1004EP22

N/A 3.91 mm

N/A 0.06 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A

1006EP22

N/A 5.91 mm

N/A 0.06 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A

1008EP22

N/A 7.89 mm

N/A 0.06 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A

1010EP22

N/A 9.89 mm

N/A 0.06 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A

1015EP22

N/A 14.865 mm

N/A 0.06 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A

1020EP22

N/A 19.835 mm

N/A 0.06 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A

1210EP22

N/A 9.89 mm

N/A 0.07 mm

N/A 14 mm

N/A 12 mm

N/A 1 mm

N/A

1212EP22

N/A 11.865 mm

N/A 0.07 mm

N/A 14 mm

N/A 12 mm

N/A 1 mm

N/A

1215EP22

N/A 14.865 mm

N/A 0.07 mm

N/A 14 mm

N/A 12 mm

N/A 1 mm

N/A

1220EP22

N/A 19.835 mm

N/A 0.07 mm

N/A 14 mm

N/A 12 mm

N/A 1 mm

N/A

1415EP22

N/A 14.865 mm

N/A 0.08 mm

N/A 16 mm

N/A 14 mm

N/A 1 mm

N/A

1420EP22

N/A 19.835 mm

N/A 0.08 mm

N/A 16 mm

N/A 14 mm

N/A 1 mm

N/A

1425EP22

N/A 24.835 mm

N/A 0.08 mm

N/A 16 mm

N/A 14 mm

N/A 1 mm

N/A

1515EP22

N/A 14.865 mm

N/A 0.085 mm

N/A 17 mm

N/A 15 mm

N/A 1 mm

N/A

1520EP22

N/A 19.835 mm

N/A 0.085 mm

N/A 17 mm

N/A 15 mm

N/A 1 mm

N/A

1525EP22

N/A 24.835 mm

N/A 0.085 mm

N/A 17 mm

N/A 15 mm

N/A 1 mm

N/A

2010EP22

N/A 9.89 mm

N/A 0.11 mm

N/A 23 mm

N/A 20 mm

N/A 1.5 mm

N/A

2015EP22

N/A 14.865 mm

N/A 0.11 mm

N/A 23 mm

N/A 20 mm

N/A 1.5 mm

N/A

2020EP22

N/A 19.835 mm

N/A 0.11 mm

N/A 23 mm

N/A 20 mm

N/A 1.5 mm

N/A

2030EP22

N/A 29.835 mm

N/A 0.11 mm

N/A 23 mm

N/A 20 mm

N/A 1.5 mm

N/A
