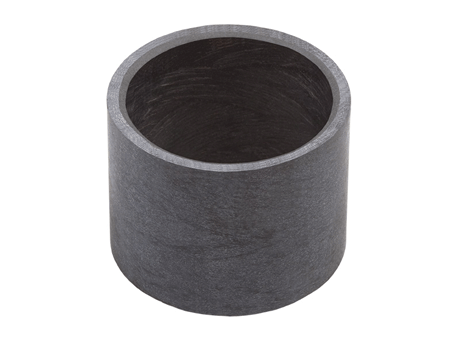

GGB GAR-MAX bushes US - metric 2.5 mm wall thickness On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

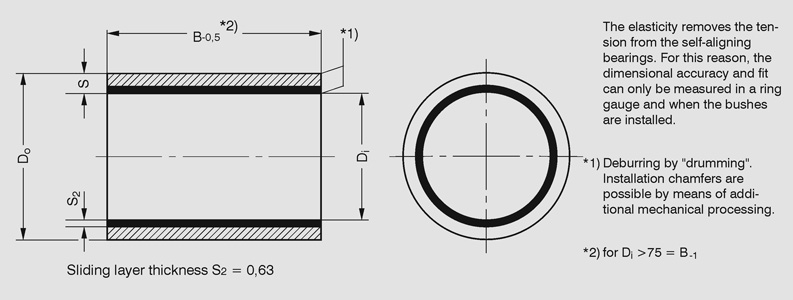

Part Number	B max.	B min.	Do	Di	Di x Do	ep	CAD
121703GM	N/A 24 mm	N/A 3 mm	N/A 17 mm	N/A 12 mm	N/A 12 x 17 mm	N/A 2.5 mm	N/A
152004GM	N/A 30 mm	N/A 4 mm	N/A 20 mm	N/A 15 mm	N/A 15 x 20 mm	N/A 2.5 mm	N/A
162104GM	N/A 32 mm	N/A 4 mm	N/A 21 mm	N/A 16 mm	N/A 16 x 21 mm	N/A 2.5 mm	N/A
182305GM	N/A 36 mm	N/A 5 mm	N/A 23 mm	N/A 18 mm	N/A 18 x 23 mm	N/A 2.5 mm	N/A
202505GM	N/A 40 mm	N/A 5 mm	N/A 25 mm	N/A 20 mm	N/A 20 x 25 mm	N/A 2.5 mm	N/A
222706GM	N/A 44 mm	N/A 6 mm	N/A 27 mm	N/A 22 mm	N/A 22 x 27 mm	N/A 2.5 mm	N/A
253006GM	N/A 50 mm	N/A 6 mm	N/A 30 mm	N/A 25 mm	N/A 25 x 30 mm	N/A 2.5 mm	N/A
283307GM	N/A 56 mm	N/A 7 mm	N/A 33 mm	N/A 28 mm	N/A 28 x 33 mm	N/A 2.5 mm	N/A
303508GM	N/A 60 mm	N/A 8 mm	N/A 35 mm	N/A 30 mm	N/A 30 x 35 mm	N/A 2.5 mm	N/A
354009GM	N/A 70 mm	N/A 9 mm	N/A 40 mm	N/A 35 mm	N/A 35 x 40 mm	N/A 2.5 mm	N/A
404510GM	N/A 80 mm	N/A 10 mm	N/A 45 mm	N/A 40 mm	N/A 40 x 45 mm	N/A 2.5 mm	N/A
455011GM	N/A 90 mm	N/A 11 mm	N/A 50 mm	N/A 45 mm	N/A 45 x 50 mm	N/A 2.5 mm	N/A
505513GM	N/A 100 mm	N/A 13 mm	N/A 55 mm	N/A 50 mm	N/A 50 x 55 mm	N/A 2.5 mm	N/A
556014GM	N/A 110 mm	N/A 14 mm	N/A 60 mm	N/A 55 mm	N/A 55 x 60 mm	N/A 2.5 mm	N/A
606515GM	N/A 120 mm	N/A 15 mm	N/A 65 mm	N/A 60 mm	N/A 60 x 65 mm	N/A 2.5 mm	N/A
657016GM	N/A 130 mm	N/A 16 mm	N/A 70 mm	N/A 65 mm	N/A 65 x 70 mm	N/A 2.5 mm	N/A
707518GM	N/A 140 mm	N/A 18 mm	N/A 75 mm	N/A 70 mm	N/A 70 x 75 mm	N/A 2.5 mm	N/A
758019GM	N/A 150 mm	N/A 19 mm	N/A 80 mm	N/A 75 mm	N/A 75 x 80 mm	N/A 2.5 mm	N/A
808520GM	N/A 160 mm	N/A 20 mm	N/A 85 mm	N/A 80 mm	N/A 80 x 85 mm	N/A 2.5 mm	N/A
859021GM	N/A 170 mm	N/A 21 mm	N/A 90 mm	N/A 85 mm	N/A 85 x 90 mm	N/A 2.5 mm	N/A
909523GM	N/A 180 mm	N/A 23 mm	N/A 95 mm	N/A 90 mm	N/A 90 x 95 mm	N/A 2.5 mm	N/A
9510024GM	N/A 190 mm	N/A 24 mm	N/A 100 mm	N/A 95 mm	N/A 95 x 100 mm	N/A 2.5 mm	N/A
10010525GM	N/A 200 mm	N/A 25 mm	N/A 105 mm	N/A 100 mm	N/A 100 x 105 mm	N/A 2.5 mm	N/A
11011528GM	N/A 220 mm	N/A 28 mm	N/A 115 mm	N/A 110 mm	N/A 110 x 115 mm	N/A 2.5 mm	N/A
12012530GM	N/A 240 mm	N/A 30 mm	N/A 125 mm	N/A 120 mm	N/A 120 x 125 mm	N/A 2.5 mm	N/A

Part Number

B max.

B min.

Do

Di

Di x Do

ep

CAD

121703GM

N/A 24 mm

N/A 3 mm

N/A 17 mm

N/A 12 mm

N/A 12 x 17 mm

N/A 2.5 mm

N/A

152004GM

N/A 30 mm

N/A 4 mm

N/A 20 mm

N/A 15 mm

N/A 15 x 20 mm

N/A 2.5 mm

N/A

162104GM

N/A 32 mm

N/A 4 mm

N/A 21 mm

N/A 16 mm

N/A 16 x 21 mm

N/A 2.5 mm

N/A

182305GM

N/A 36 mm

N/A 5 mm

N/A 23 mm

N/A 18 mm

N/A 18 x 23 mm

N/A 2.5 mm

N/A

202505GM

N/A 40 mm

N/A 5 mm

N/A 25 mm

N/A 20 mm

N/A 20 x 25 mm

N/A 2.5 mm

N/A

222706GM

N/A 44 mm

N/A 6 mm

N/A 27 mm

N/A 22 mm

N/A 22 x 27 mm

N/A 2.5 mm

N/A

253006GM

N/A 50 mm

N/A 6 mm

N/A 30 mm

N/A 25 mm

N/A 25 x 30 mm

N/A 2.5 mm

N/A

283307GM

N/A 56 mm

N/A 7 mm

N/A 33 mm

N/A 28 mm

N/A 28 x 33 mm

N/A 2.5 mm

N/A

303508GM

N/A 60 mm

N/A 8 mm

N/A 35 mm

N/A 30 mm

N/A 30 x 35 mm

N/A 2.5 mm

N/A

354009GM

N/A 70 mm

N/A 9 mm

N/A 40 mm

N/A 35 mm

N/A 35 x 40 mm

N/A 2.5 mm

N/A

404510GM

N/A 80 mm

N/A 10 mm

N/A 45 mm

N/A 40 mm

N/A 40 x 45 mm

N/A 2.5 mm

N/A

455011GM

N/A 90 mm

N/A 11 mm

N/A 50 mm

N/A 45 mm

N/A 45 x 50 mm

N/A 2.5 mm

N/A

505513GM

N/A 100 mm

N/A 13 mm

N/A 55 mm

N/A 50 mm

N/A 50 x 55 mm

N/A 2.5 mm

N/A

556014GM

N/A 110 mm

N/A 14 mm

N/A 60 mm

N/A 55 mm

N/A 55 x 60 mm

N/A 2.5 mm

N/A

606515GM

N/A 120 mm

N/A 15 mm

N/A 65 mm

N/A 60 mm

N/A 60 x 65 mm

N/A 2.5 mm

N/A

657016GM

N/A 130 mm

N/A 16 mm

N/A 70 mm

N/A 65 mm

N/A 65 x 70 mm

N/A 2.5 mm

N/A

707518GM

N/A 140 mm

N/A 18 mm

N/A 75 mm

N/A 70 mm

N/A 70 x 75 mm

N/A 2.5 mm

N/A

758019GM

N/A 150 mm

N/A 19 mm

N/A 80 mm

N/A 75 mm

N/A 75 x 80 mm

N/A 2.5 mm

N/A

808520GM

N/A 160 mm

N/A 20 mm

N/A 85 mm

N/A 80 mm

N/A 80 x 85 mm

N/A 2.5 mm

N/A

859021GM

N/A 170 mm

N/A 21 mm

N/A 90 mm

N/A 85 mm

N/A 85 x 90 mm

N/A 2.5 mm

N/A

909523GM

N/A 180 mm

N/A 23 mm

N/A 95 mm

N/A 90 mm

N/A 90 x 95 mm

N/A 2.5 mm

N/A

9510024GM

N/A 190 mm

N/A 24 mm

N/A 100 mm

N/A 95 mm

N/A 95 x 100 mm

N/A 2.5 mm

N/A

10010525GM

N/A 200 mm

N/A 25 mm

N/A 105 mm

N/A 100 mm

N/A 100 x 105 mm

N/A 2.5 mm

N/A

11011528GM

N/A 220 mm

N/A 28 mm

N/A 115 mm

N/A 110 mm

N/A 110 x 115 mm

N/A 2.5 mm

N/A

12012530GM

N/A 240 mm

N/A 30 mm

N/A 125 mm

N/A 120 mm

N/A 120 x 125 mm

N/A 2.5 mm

N/A
