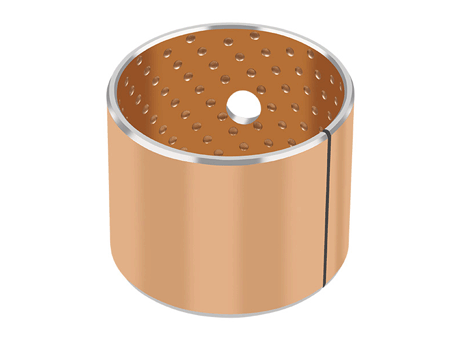

GGB SY bushes - metric On The Timken Company

Batch CAD Cart (0) ▾

1 - 25 of 76 | Results Per Page | View | Unit of Measure

1 2 3 4

Request Information Compare Items Add to CAD Cart

Clear Filter

B (mm)

Do (mm)

Di (mm)

Part Number	B	Do	Di	Di,a max. in H7	Di,a min. in H7	dL	ep	CAD	Add To Cart/Request Quote

PM2025SY	N/A 25 mm	N/A 23 mm	N/A 20 mm	N/A 20.161 mm	N/A 20.02 mm	N/A 4 mm	N/A 1.5 mm	N/A	Add To Cart Request Quote
PM2030SY	N/A 30 mm	N/A 23 mm	N/A 20 mm	N/A 20.161 mm	N/A 20.02 mm	N/A 4 mm	N/A 1.5 mm	N/A	Add To Cart Request Quote
PM2215SY	N/A 15 mm	N/A 25 mm	N/A 22 mm	N/A 22.161 mm	N/A 22.02 mm	N/A 6 mm	N/A 1.5 mm	N/A	Add To Cart Request Quote
PM2220SY	N/A 20 mm	N/A 25 mm	N/A 22 mm	N/A 22.161 mm	N/A 22.02 mm	N/A 6 mm	N/A 1.5 mm	N/A	Add To Cart Request Quote
PM2225SY	N/A 25 mm	N/A 25 mm	N/A 22 mm	N/A 22.161 mm	N/A 22.02 mm	N/A 6 mm	N/A 1.5 mm	N/A	Add To Cart Request Quote
PM2230SY	N/A 30 mm	N/A 25 mm	N/A 22 mm	N/A 22.161 mm	N/A 22.02 mm	N/A 6 mm	N/A 1.5 mm	N/A	Add To Cart Request Quote
PM2515SY	N/A 15 mm	N/A 28 mm	N/A 25 mm	N/A 25.161 mm	N/A 25.02 mm	N/A 6 mm	N/A 1.5 mm	N/A	Add To Cart Request Quote
PM2520SY	N/A 20 mm	N/A 28 mm	N/A 25 mm	N/A 25.161 mm	N/A 25.02 mm	N/A 6 mm	N/A 1.5 mm	N/A	Add To Cart Request Quote
PM2525SY	N/A 25 mm	N/A 28 mm	N/A 25 mm	N/A 25.161 mm	N/A 25.02 mm	N/A 6 mm	N/A 1.5 mm	N/A	Add To Cart Request Quote
PM2530SY	N/A 30 mm	N/A 28 mm	N/A 25 mm	N/A 25.161 mm	N/A 25.02 mm	N/A 6 mm	N/A 1.5 mm	N/A	Add To Cart Request Quote
PM2815SY	N/A 15 mm	N/A 32 mm	N/A 28 mm	N/A 28.185 mm	N/A 28.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM2820SY	N/A 20 mm	N/A 32 mm	N/A 28 mm	N/A 28.185 mm	N/A 28.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM2825SY	N/A 25 mm	N/A 32 mm	N/A 28 mm	N/A 28.185 mm	N/A 28.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM2830SY	N/A 30 mm	N/A 32 mm	N/A 28 mm	N/A 28.185 mm	N/A 28.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM3015SY	N/A 15 mm	N/A 34 mm	N/A 30 mm	N/A 30.185 mm	N/A 30.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM3020SY	N/A 20 mm	N/A 34 mm	N/A 30 mm	N/A 30.185 mm	N/A 30.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM3025SY	N/A 25 mm	N/A 34 mm	N/A 30 mm	N/A 30.185 mm	N/A 30.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM3030SY	N/A 30 mm	N/A 34 mm	N/A 30 mm	N/A 30.185 mm	N/A 30.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM3040SY	N/A 40 mm	N/A 34 mm	N/A 30 mm	N/A 30.185 mm	N/A 30.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM3230SY	N/A 30 mm	N/A 36 mm	N/A 32 mm	N/A 32.185 mm	N/A 32.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM3240SY	N/A 40 mm	N/A 36 mm	N/A 32 mm	N/A 32.185 mm	N/A 32.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM3515SY	N/A 15 mm	N/A 39 mm	N/A 35 mm	N/A 35.185 mm	N/A 35.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM3520SY	N/A 20 mm	N/A 39 mm	N/A 35 mm	N/A 35.185 mm	N/A 35.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM3525SY	N/A 25 mm	N/A 39 mm	N/A 35 mm	N/A 35.185 mm	N/A 35.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
PM3530SY	N/A 30 mm	N/A 39 mm	N/A 35 mm	N/A 35.185 mm	N/A 35.04 mm	N/A 6 mm	N/A 2 mm	N/A	Add To Cart Request Quote
