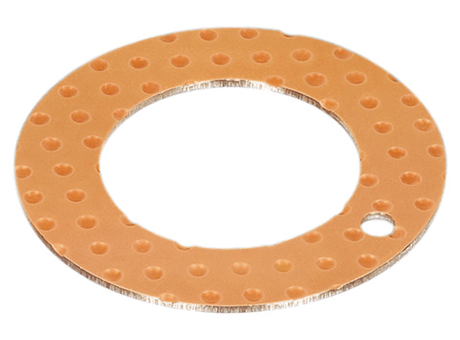

GGB SY thrust washers - metric On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

Batch CAD Cart (0) ▾

1 - 5 of 5 | Results Per Page | View | Unit of Measure

Request Information Compare Items Add to CAD Cart

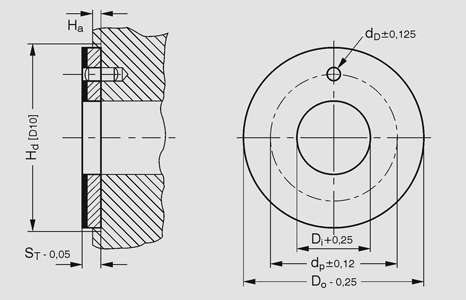

Part Number	dD	Di	Do	dP	Ha max.	Ha min.	ST	CAD

WC30SY	N/A 4.25 mm	N/A 32 mm	N/A 54 mm	N/A 43 mm	N/A 1.2 mm	N/A 0.95 mm	N/A 1.45 mm	N/A
WC35SY	N/A 4.25 mm	N/A 38 mm	N/A 62 mm	N/A 50 mm	N/A 1.2 mm	N/A 0.95 mm	N/A 1.45 mm	N/A
WC40SY	N/A 4.25 mm	N/A 42 mm	N/A 66 mm	N/A 54 mm	N/A 1.2 mm	N/A 0.95 mm	N/A 1.45 mm	N/A
WC45SY	N/A 4.25 mm	N/A 48 mm	N/A 74 mm	N/A 61 mm	N/A 1.7 mm	N/A 1.45 mm	N/A 1.95 mm	N/A
WC50SY	N/A 4.25 mm	N/A 52 mm	N/A 78 mm	N/A 65 mm	N/A 1.7 mm	N/A 1.45 mm	N/A 1.95 mm	N/A

1 - 5 of 5 | Results Per Page | View | Unit of Measure
