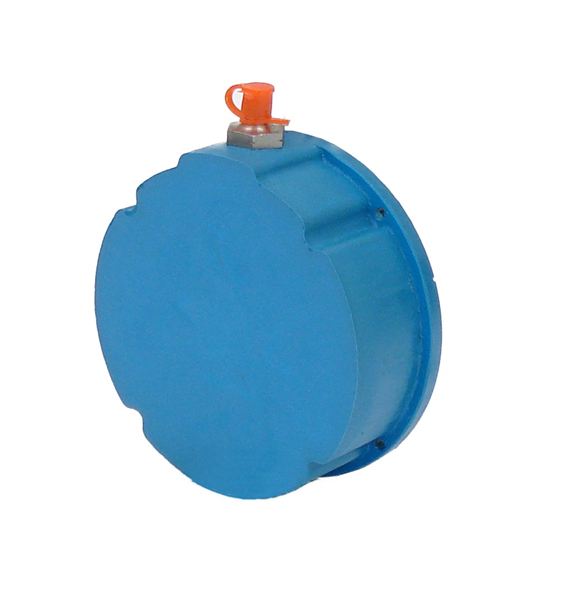

Urethane Closed End Cover with Powder Coating Finish On The Timken Company

Part Number	Type	Dimension A	Dimension B	Dimension C1	Number of Bolts	CAD
CS08FB	N/A Closed	N/A 3.21 in81.5 mm	N/A 3.02 in76.7 mm	N/A 1.25 in31.6 mm	N/A 4	N/A
CS09FB	N/A Closed	N/A 3.41 in86.6 mm	N/A 3.21 in81.6 mm	N/A 1.25 in31.6 mm	N/A 4	N/A
CS10FB	N/A Closed	N/A 3.62 in91.9 mm	N/A 3.41 in86.6 mm	N/A 1.25 in31.6 mm	N/A 4	N/A
CS11FB	N/A Closed	N/A 4.01 in101.9 mm	N/A 3.81 in96.6 mm	N/A 1.25 in31.6 mm	N/A 4	N/A
CS13FB	N/A Closed	N/A 4.7 in119.4 mm	N/A 4.35 in110.5 mm	N/A 1.08 in27.3 mm	N/A 4	N/A
CS15FB	N/A Closed	N/A 5.12 in130 mm	N/A 4.84 in122.9 mm	N/A 1.3 in33 mm	N/A 4	N/A
CS16VFB	N/A Closed	N/A 5.12 in130 mm	N/A 4.84 in122.9 mm	N/A 1.3 in33 mm	N/A 4	N/A
CS17FB	N/A Closed	N/A 5.9 in149.9 mm	N/A 5.47 in139 mm	N/A 1.22 in31.1 mm	N/A 4	N/A
CS18FB	N/A Closed	N/A 6.31 in160.3 mm	N/A 5.77 in146.5 mm	N/A 1.53 in38.8 mm	N/A 4	N/A
CS20FB	N/A Closed	N/A 7.08 in179.8 mm	N/A 6.58 in167.2 mm	N/A 1.75 in44.5 mm	N/A 4	N/A
CS22FB	N/A Closed	N/A 7.89 in200.4 mm	N/A 7.37 in187.2 mm	N/A 2.07 in52.7 mm	N/A 6	N/A

CS08FB

N/A Closed

N/A 3.21 in81.5 mm

N/A 3.02 in76.7 mm

N/A 1.25 in31.6 mm

N/A 4

N/A

CS09FB

N/A Closed

N/A 3.41 in86.6 mm

N/A 3.21 in81.6 mm

N/A 1.25 in31.6 mm

N/A 4

N/A

CS10FB

N/A Closed

N/A 3.62 in91.9 mm

N/A 3.41 in86.6 mm

N/A 1.25 in31.6 mm

N/A 4

N/A

CS11FB

N/A Closed

N/A 4.01 in101.9 mm

N/A 3.81 in96.6 mm

N/A 1.25 in31.6 mm

N/A 4

N/A

CS13FB

N/A Closed

N/A 4.7 in119.4 mm

N/A 4.35 in110.5 mm

N/A 1.08 in27.3 mm

N/A 4

N/A

CS15FB

N/A Closed

N/A 5.12 in130 mm

N/A 4.84 in122.9 mm

N/A 1.3 in33 mm

N/A 4

N/A

CS16VFB

N/A Closed

N/A 5.12 in130 mm

N/A 4.84 in122.9 mm

N/A 1.3 in33 mm

N/A 4

N/A

CS17FB

N/A Closed

N/A 5.9 in149.9 mm

N/A 5.47 in139 mm

N/A 1.22 in31.1 mm

N/A 4

N/A

CS18FB

N/A Closed

N/A 6.31 in160.3 mm

N/A 5.77 in146.5 mm

N/A 1.53 in38.8 mm

N/A 4

N/A

CS20FB

N/A Closed

N/A 7.08 in179.8 mm

N/A 6.58 in167.2 mm

N/A 1.75 in44.5 mm

N/A 4

N/A

CS22FB

N/A Closed

N/A 7.89 in200.4 mm

N/A 7.37 in187.2 mm

N/A 2.07 in52.7 mm

N/A 6

N/A
