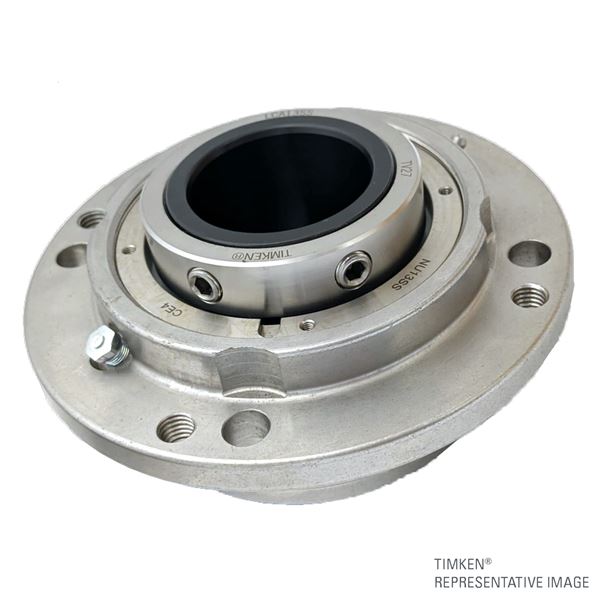

Double Concentric Stainless Piloted Flange Cartridge On The Timken Company

Find Your Nearest Timken Sales Office or Authorized Distributor

Our locator tool helps you connect with the right Timken partner quickly. Registered users
can save their nearest Timken Sales office or distributor in their dashboard.

Try the Locator Tool

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

Explore Timken Engineering Tools
Videos on YouTube

Check out our Engineering Tools video playlist on YouTube. These short walkthroughs
help you navigate Timken calculation tools, selection guides and digital resources.

View the Full Playlist

Part Number	Bearing Number	Shaft Size	Bolt Circle Diameter	Bolt Size	Pilot Diameter	C0 - Static Load	C - Dynamic Load (Basic)	CAD
QAACW10A115S - Stainless	N/A 22210	N/A 1 15/16 in	N/A 5.38 in136.7 mm	N/A 0.438 in10 mm	N/A 4.5 in114.3 mm	N/A 26600 lbf118000 N	N/A 26300 lbf117000 N	N/A
QAACW10A050S - Stainless	N/A 22210	N/A 50 mm	N/A 5.38 in136.7 mm	N/A 0.438 in10 mm	N/A 4.5 in114.3 mm	N/A 26600 lbf118000 N	N/A 26300 lbf117000 N	N/A
QAACW10A200S - Stainless	N/A 22210	N/A 2 in	N/A 5.38 in136.7 mm	N/A 0.438 in10 mm	N/A 4.5 in114.3 mm	N/A 26600 lbf118000 N	N/A 26300 lbf117000 N	N/A
QAACW11A055S - Stainless	N/A 22211	N/A 55 mm	N/A 6 in152.4 mm	N/A 0.5 in12 mm	N/A 5 in127 mm	N/A 31900 lbf142000 N	N/A 31400 lbf140000 N	N/A
QAACW11A203S - Stainless	N/A 22211	N/A 2 3/16 in	N/A 6 in152.4 mm	N/A 0.5 in12 mm	N/A 5 in127 mm	N/A 31900 lbf142000 N	N/A 31400 lbf140000 N	N/A
QAACW11A204S - Stainless	N/A 22211	N/A 2 1/4 in	N/A 6 in152.4 mm	N/A 0.5 in12 mm	N/A 5 in127 mm	N/A 31900 lbf142000 N	N/A 31400 lbf140000 N	N/A
QAACW13A060S - Stainless	N/A 22213	N/A 60 mm	N/A 6.5 in165.1 mm	N/A 0.5 in12 mm	N/A 5.5 in139.7 mm	N/A 48600 lbf216000 N	N/A 46400 lbf206000 N	N/A
QAACW13A207S - Stainless	N/A 22213	N/A 2 7/16 in	N/A 6.5 in165.1 mm	N/A 0.5 in12 mm	N/A 5.5 in139.7 mm	N/A 48600 lbf216000 N	N/A 46400 lbf206000 N	N/A
QAACW13A208S - Stainless	N/A 22213	N/A 2 1/2 in	N/A 6.5 in165.1 mm	N/A 0.5 in12 mm	N/A 5.5 in139.7 mm	N/A 48600 lbf216000 N	N/A 46400 lbf206000 N	N/A
QAACW13A065S - Stainless	N/A 22213	N/A 65 mm	N/A 6.5 in165.1 mm	N/A 0.5 in12 mm	N/A 5.5 in139.7 mm	N/A 48600 lbf216000 N	N/A 46400 lbf206000 N	N/A
QAACW15A211S - Stainless	N/A 22215	N/A 2 11/16 in	N/A 7.5 in190.5 mm	N/A 0.625 in16 mm	N/A 6.38 in161.9 mm	N/A 54100 lbf240000 N	N/A 49900 lbf222000 N	N/A
QAACW15A212S - Stainless	N/A 22215	N/A 2 3/4 in	N/A 7.5 in190.5 mm	N/A 0.625 in16 mm	N/A 6.38 in161.9 mm	N/A 54100 lbf240000 N	N/A 49900 lbf222000 N	N/A
QAACW15A070S - Stainless	N/A 22215	N/A 70 mm	N/A 7.5 in190.5 mm	N/A 0.625 in16 mm	N/A 6.38 in161.9 mm	N/A 54100 lbf240000 N	N/A 49900 lbf222000 N	N/A
QAACW15A215S - Stainless	N/A 22215	N/A 2 15/16 in	N/A 7.5 in190.5 mm	N/A 0.625 in16 mm	N/A 6.38 in161.9 mm	N/A 54100 lbf240000 N	N/A 49900 lbf222000 N	N/A
QAACW15A075S - Stainless	N/A 22215	N/A 75 mm	N/A 7.5 in190.5 mm	N/A 0.625 in16 mm	N/A 6.38 in161.9 mm	N/A 54100 lbf240000 N	N/A 49900 lbf222000 N	N/A
QAACW15A300S - Stainless	N/A 22215	N/A 3 in	N/A 7.5 in190.5 mm	N/A 0.625 in16 mm	N/A 6.38 in161.9 mm	N/A 54100 lbf240000 N	N/A 49900 lbf222000 N	N/A
QAACW18A080S - Stainless	N/A 22218	N/A 80 mm	N/A 8.63 in219.2 mm	N/A 0.75 in20 mm	N/A 7.38 in187.3 mm	N/A 87200 lbf388000 N	N/A 79700 lbf355000 N	N/A
QAACW18A303S - Stainless	N/A 22218	N/A 3 3/16 in	N/A 8.63 in219.2 mm	N/A 0.75 in20 mm	N/A 7.38 in187.3 mm	N/A 87200 lbf388000 N	N/A 79700 lbf355000 N	N/A
QAACW18A304S - Stainless	N/A 22218	N/A 3 1/4 in	N/A 8.63 in219.2 mm	N/A 0.75 in20 mm	N/A 7.38 in187.3 mm	N/A 87200 lbf388000 N	N/A 79700 lbf355000 N	N/A
QAACW18A085S - Stainless	N/A 22218	N/A 85 mm	N/A 8.63 in219.2 mm	N/A 0.75 in20 mm	N/A 7.38 in187.3 mm	N/A 87200 lbf388000 N	N/A 79700 lbf355000 N	N/A
QAACW18A307S - Stainless	N/A 22218	N/A 3 7/16 in	N/A 8.63 in219.2 mm	N/A 0.75 in20 mm	N/A 7.38 in187.3 mm	N/A 87200 lbf388000 N	N/A 79700 lbf355000 N	N/A
QAACW18A308S - Stainless	N/A 22218	N/A 3 1/2 in	N/A 8.63 in219.2 mm	N/A 0.75 in20 mm	N/A 7.38 in187.3 mm	N/A 87200 lbf388000 N	N/A 79700 lbf355000 N	N/A
QAACW18A090S - Stainless	N/A 22218	N/A 90 mm	N/A 8.63 in219.2 mm	N/A 0.75 in20 mm	N/A 7.38 in187.3 mm	N/A 87200 lbf388000 N	N/A 79700 lbf355000 N	N/A
QAACW20A100S - Stainless	N/A 22220	N/A 100 mm	N/A 9.38 in238.3 mm	N/A 0.75 in20 mm	N/A 8.13 in206.4 mm	N/A 113000 lbf502000 N	N/A 97700 lbf435000 N	N/A
QAACW20A315S - Stainless	N/A 22220	N/A 3 15/16 in	N/A 9.38 in238.3 mm	N/A 0.75 in20 mm	N/A 8.13 in206.4 mm	N/A 113000 lbf502000 N	N/A 97700 lbf435000 N	N/A

N/A 1 15/16 in

N/A 5.38 in136.7 mm

N/A 0.438 in10 mm

N/A 4.5 in114.3 mm

N/A 26600 lbf118000 N

N/A 26300 lbf117000 N

N/A

QAACW10A050S - Stainless

N/A 22210

N/A 50 mm

N/A 5.38 in136.7 mm

N/A 0.438 in10 mm

N/A 4.5 in114.3 mm

N/A 26600 lbf118000 N

N/A 26300 lbf117000 N

N/A

QAACW10A200S - Stainless

N/A 22210

N/A 2 in

N/A 5.38 in136.7 mm

N/A 0.438 in10 mm

N/A 4.5 in114.3 mm

N/A 26600 lbf118000 N

N/A 26300 lbf117000 N

N/A

QAACW11A055S - Stainless

N/A 22211

N/A 55 mm

N/A 6 in152.4 mm

N/A 0.5 in12 mm

N/A 5 in127 mm

N/A 31900 lbf142000 N

N/A 31400 lbf140000 N

N/A

QAACW11A203S - Stainless

N/A 22211

N/A 2 3/16 in

N/A 6 in152.4 mm

N/A 0.5 in12 mm

N/A 5 in127 mm

N/A 31900 lbf142000 N

N/A 31400 lbf140000 N

N/A

QAACW11A204S - Stainless

N/A 22211

N/A 2 1/4 in

N/A 6 in152.4 mm

N/A 0.5 in12 mm

N/A 5 in127 mm

N/A 31900 lbf142000 N

N/A 31400 lbf140000 N

N/A

QAACW13A060S - Stainless

N/A 22213

N/A 60 mm

N/A 6.5 in165.1 mm

N/A 0.5 in12 mm

N/A 5.5 in139.7 mm

N/A 48600 lbf216000 N

N/A 46400 lbf206000 N

N/A

QAACW13A207S - Stainless

N/A 22213

N/A 2 7/16 in

N/A 6.5 in165.1 mm

N/A 0.5 in12 mm

N/A 5.5 in139.7 mm

N/A 48600 lbf216000 N

N/A 46400 lbf206000 N

N/A

QAACW13A208S - Stainless

N/A 22213

N/A 2 1/2 in

N/A 6.5 in165.1 mm

N/A 0.5 in12 mm

N/A 5.5 in139.7 mm

N/A 48600 lbf216000 N

N/A 46400 lbf206000 N

N/A

QAACW13A065S - Stainless

N/A 22213

N/A 65 mm

N/A 6.5 in165.1 mm

N/A 0.5 in12 mm

N/A 5.5 in139.7 mm

N/A 48600 lbf216000 N

N/A 46400 lbf206000 N

N/A

QAACW15A211S - Stainless

N/A 22215

N/A 2 11/16 in

N/A 7.5 in190.5 mm

N/A 0.625 in16 mm

N/A 6.38 in161.9 mm

N/A 54100 lbf240000 N

N/A 49900 lbf222000 N

N/A

QAACW15A212S - Stainless

N/A 22215

N/A 2 3/4 in

N/A 7.5 in190.5 mm

N/A 0.625 in16 mm

N/A 6.38 in161.9 mm

N/A 54100 lbf240000 N

N/A 49900 lbf222000 N

N/A

QAACW15A070S - Stainless

N/A 22215

N/A 70 mm

N/A 7.5 in190.5 mm

N/A 0.625 in16 mm

N/A 6.38 in161.9 mm

N/A 54100 lbf240000 N

N/A 49900 lbf222000 N

N/A

QAACW15A215S - Stainless

N/A 22215

N/A 2 15/16 in

N/A 7.5 in190.5 mm

N/A 0.625 in16 mm

N/A 6.38 in161.9 mm

N/A 54100 lbf240000 N

N/A 49900 lbf222000 N

N/A

QAACW15A075S - Stainless

N/A 22215

N/A 75 mm

N/A 7.5 in190.5 mm

N/A 0.625 in16 mm

N/A 6.38 in161.9 mm

N/A 54100 lbf240000 N

N/A 49900 lbf222000 N

N/A

QAACW15A300S - Stainless

N/A 22215

N/A 3 in

N/A 7.5 in190.5 mm

N/A 0.625 in16 mm

N/A 6.38 in161.9 mm

N/A 54100 lbf240000 N

N/A 49900 lbf222000 N

N/A

QAACW18A080S - Stainless

N/A 22218

N/A 80 mm

N/A 8.63 in219.2 mm

N/A 0.75 in20 mm

N/A 7.38 in187.3 mm

N/A 87200 lbf388000 N

N/A 79700 lbf355000 N

N/A

QAACW18A303S - Stainless

N/A 22218

N/A 3 3/16 in

N/A 8.63 in219.2 mm

N/A 0.75 in20 mm

N/A 7.38 in187.3 mm

N/A 87200 lbf388000 N

N/A 79700 lbf355000 N

N/A

QAACW18A304S - Stainless

N/A 22218

N/A 3 1/4 in

N/A 8.63 in219.2 mm

N/A 0.75 in20 mm

N/A 7.38 in187.3 mm

N/A 87200 lbf388000 N

N/A 79700 lbf355000 N

N/A

QAACW18A085S - Stainless

N/A 22218

N/A 85 mm

N/A 8.63 in219.2 mm

N/A 0.75 in20 mm

N/A 7.38 in187.3 mm

N/A 87200 lbf388000 N

N/A 79700 lbf355000 N

N/A

QAACW18A307S - Stainless

N/A 22218

N/A 3 7/16 in

N/A 8.63 in219.2 mm

N/A 0.75 in20 mm

N/A 7.38 in187.3 mm

N/A 87200 lbf388000 N

N/A 79700 lbf355000 N

N/A

QAACW18A308S - Stainless

N/A 22218

N/A 3 1/2 in

N/A 8.63 in219.2 mm

N/A 0.75 in20 mm

N/A 7.38 in187.3 mm

N/A 87200 lbf388000 N

N/A 79700 lbf355000 N

N/A

QAACW18A090S - Stainless

N/A 22218

N/A 90 mm

N/A 8.63 in219.2 mm

N/A 0.75 in20 mm

N/A 7.38 in187.3 mm

N/A 87200 lbf388000 N

N/A 79700 lbf355000 N

N/A

QAACW20A100S - Stainless

N/A 22220

N/A 100 mm

N/A 9.38 in238.3 mm

N/A 0.75 in20 mm

N/A 8.13 in206.4 mm

N/A 113000 lbf502000 N

N/A 97700 lbf435000 N

N/A

QAACW20A315S - Stainless

N/A 22220

N/A 3 15/16 in

N/A 9.38 in238.3 mm

N/A 0.75 in20 mm

N/A 8.13 in206.4 mm

N/A 113000 lbf502000 N

N/A 97700 lbf435000 N

N/A
