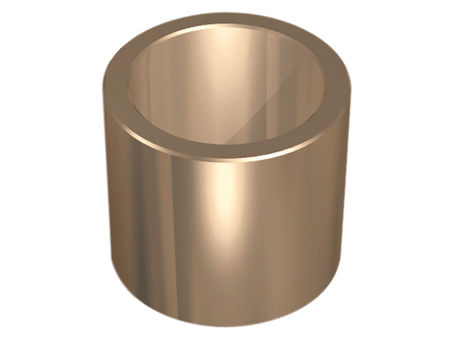

GGB Sintered bronze bushes On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

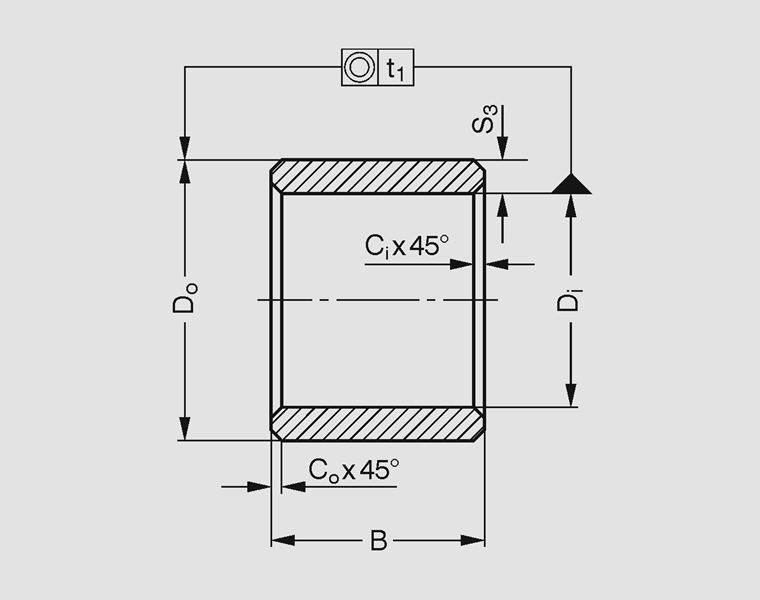

Part Number	B	Do	Di	⌀ Installation max.	⌀ Installation min.	ep	CAD
020502BP25	N/A 2 mm	N/A 5 mm	N/A 2 mm	N/A 2.01 mm	N/A 2 mm	N/A 1.5 mm	N/A
020503BP25	N/A 3 mm	N/A 5 mm	N/A 2 mm	N/A 2.01 mm	N/A 2 mm	N/A 1.5 mm	N/A
030604BP25	N/A 4 mm	N/A 6 mm	N/A 3 mm	N/A 3.012 mm	N/A 3 mm	N/A 1.5 mm	N/A
030606BP25	N/A 6 mm	N/A 6 mm	N/A 3 mm	N/A 3.012 mm	N/A 3 mm	N/A 1.5 mm	N/A
030610BP25	N/A 10 mm	N/A 6 mm	N/A 3 mm	N/A 3.012 mm	N/A 3 mm	N/A 1.5 mm	N/A
040704BP25	N/A 4 mm	N/A 7 mm	N/A 4 mm	N/A 4.012 mm	N/A 4 mm	N/A 1.5 mm	N/A
040708BP25	N/A 8 mm	N/A 7 mm	N/A 4 mm	N/A 4.012 mm	N/A 4 mm	N/A 1.5 mm	N/A
040712BP25	N/A 12 mm	N/A 7 mm	N/A 4 mm	N/A 4.012 mm	N/A 4 mm	N/A 1.5 mm	N/A
040804BP25	N/A 4 mm	N/A 8 mm	N/A 4 mm	N/A 4.012 mm	N/A 4 mm	N/A 2 mm	N/A
040808BP25	N/A 8 mm	N/A 8 mm	N/A 4 mm	N/A 4.012 mm	N/A 4 mm	N/A 2 mm	N/A
040812BP25	N/A 12 mm	N/A 8 mm	N/A 4 mm	N/A 4.012 mm	N/A 4 mm	N/A 2 mm	N/A
050805BP25	N/A 5 mm	N/A 8 mm	N/A 5 mm	N/A 5.012 mm	N/A 5 mm	N/A 1.5 mm	N/A
050808BP25	N/A 8 mm	N/A 8 mm	N/A 5 mm	N/A 5.012 mm	N/A 5 mm	N/A 1.5 mm	N/A
050810BP25	N/A 10 mm	N/A 8 mm	N/A 5 mm	N/A 5.012 mm	N/A 5 mm	N/A 1.5 mm	N/A
050812BP25	N/A 12 mm	N/A 8 mm	N/A 5 mm	N/A 5.012 mm	N/A 5 mm	N/A 1.5 mm	N/A
050816BP25	N/A 16 mm	N/A 8 mm	N/A 5 mm	N/A 5.012 mm	N/A 5 mm	N/A 1.5 mm	N/A
050904BP25	N/A 4 mm	N/A 9 mm	N/A 5 mm	N/A 5.012 mm	N/A 5 mm	N/A 2 mm	N/A
050905BP25	N/A 5 mm	N/A 9 mm	N/A 5 mm	N/A 5.012 mm	N/A 5 mm	N/A 2 mm	N/A
050908BP25	N/A 8 mm	N/A 9 mm	N/A 5 mm	N/A 5.012 mm	N/A 5 mm	N/A 2 mm	N/A
060906BP25	N/A 6 mm	N/A 9 mm	N/A 6 mm	N/A 6.012 mm	N/A 6 mm	N/A 1.5 mm	N/A
060910BP25	N/A 10 mm	N/A 9 mm	N/A 6 mm	N/A 6.012 mm	N/A 6 mm	N/A 1.5 mm	N/A
060912BP25	N/A 12 mm	N/A 9 mm	N/A 6 mm	N/A 6.012 mm	N/A 6 mm	N/A 1.5 mm	N/A
060916BP25	N/A 16 mm	N/A 9 mm	N/A 6 mm	N/A 6.012 mm	N/A 6 mm	N/A 1.5 mm	N/A
061006BP25	N/A 6 mm	N/A 10 mm	N/A 6 mm	N/A 6.012 mm	N/A 6 mm	N/A 2 mm	N/A
061010BP25	N/A 10 mm	N/A 10 mm	N/A 6 mm	N/A 6.012 mm	N/A 6 mm	N/A 2 mm	N/A

Part Number

B

Do

Di

⌀ Installation max.

⌀ Installation min.

ep

CAD

020502BP25

N/A 2 mm

N/A 5 mm

N/A 2 mm

N/A 2.01 mm

N/A 2 mm

N/A 1.5 mm

N/A

020503BP25

N/A 3 mm

N/A 5 mm

N/A 2 mm

N/A 2.01 mm

N/A 2 mm

N/A 1.5 mm

N/A

030604BP25

N/A 4 mm

N/A 6 mm

N/A 3 mm

N/A 3.012 mm

N/A 3 mm

N/A 1.5 mm

N/A

030606BP25

N/A 6 mm

N/A 3 mm

N/A 3.012 mm

N/A 3 mm

N/A 1.5 mm

N/A

030610BP25

N/A 10 mm

N/A 6 mm

N/A 3 mm

N/A 3.012 mm

N/A 3 mm

N/A 1.5 mm

N/A

040704BP25

N/A 4 mm

N/A 7 mm

N/A 4 mm

N/A 4.012 mm

N/A 4 mm

N/A 1.5 mm

N/A

040708BP25

N/A 8 mm

N/A 7 mm

N/A 4 mm

N/A 4.012 mm

N/A 4 mm

N/A 1.5 mm

N/A

040712BP25

N/A 12 mm

N/A 7 mm

N/A 4 mm

N/A 4.012 mm

N/A 4 mm

N/A 1.5 mm

N/A

040804BP25

N/A 4 mm

N/A 8 mm

N/A 4 mm

N/A 4.012 mm

N/A 4 mm

N/A 2 mm

N/A

040808BP25

N/A 8 mm

N/A 4 mm

N/A 4.012 mm

N/A 4 mm

N/A 2 mm

N/A

040812BP25

N/A 12 mm

N/A 8 mm

N/A 4 mm

N/A 4.012 mm

N/A 4 mm

N/A 2 mm

N/A

050805BP25

N/A 5 mm

N/A 8 mm

N/A 5 mm

N/A 5.012 mm

N/A 5 mm

N/A 1.5 mm

N/A

050808BP25

N/A 8 mm

N/A 5 mm

N/A 5.012 mm

N/A 5 mm

N/A 1.5 mm

N/A

050810BP25

N/A 10 mm

N/A 8 mm

N/A 5 mm

N/A 5.012 mm

N/A 5 mm

N/A 1.5 mm

N/A

050812BP25

N/A 12 mm

N/A 8 mm

N/A 5 mm

N/A 5.012 mm

N/A 5 mm

N/A 1.5 mm

N/A

050816BP25

N/A 16 mm

N/A 8 mm

N/A 5 mm

N/A 5.012 mm

N/A 5 mm

N/A 1.5 mm

N/A

050904BP25

N/A 4 mm

N/A 9 mm

N/A 5 mm

N/A 5.012 mm

N/A 5 mm

N/A 2 mm

N/A

050905BP25

N/A 5 mm

N/A 9 mm

N/A 5 mm

N/A 5.012 mm

N/A 5 mm

N/A 2 mm

N/A

050908BP25

N/A 8 mm

N/A 9 mm

N/A 5 mm

N/A 5.012 mm

N/A 5 mm

N/A 2 mm

N/A

060906BP25

N/A 6 mm

N/A 9 mm

N/A 6 mm

N/A 6.012 mm

N/A 6 mm

N/A 1.5 mm

N/A

060910BP25

N/A 10 mm

N/A 9 mm

N/A 6 mm

N/A 6.012 mm

N/A 6 mm

N/A 1.5 mm

N/A

060912BP25

N/A 12 mm

N/A 9 mm

N/A 6 mm

N/A 6.012 mm

N/A 6 mm

N/A 1.5 mm

N/A

060916BP25

N/A 16 mm

N/A 9 mm

N/A 6 mm

N/A 6.012 mm

N/A 6 mm

N/A 1.5 mm

N/A

061006BP25

N/A 6 mm

N/A 10 mm

N/A 6 mm

N/A 6.012 mm

N/A 6 mm

N/A 2 mm

N/A

061010BP25

N/A 10 mm

N/A 6 mm

N/A 6.012 mm

N/A 6 mm

N/A 2 mm

N/A
