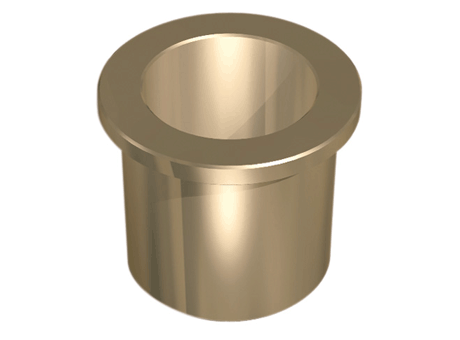

GGB Sintered bronze-flanged bushes On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

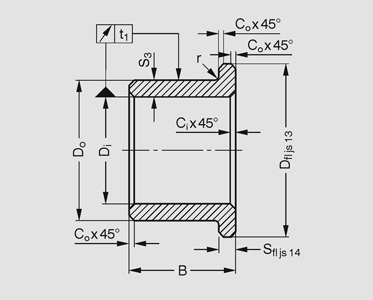

Part Number	B	Do	Dfl	Di	⌀ Installation max.	⌀ Installation min.	Sfl	CAD
BB030604BP25	N/A 4 mm	N/A 6 mm	N/A 9 mm	N/A 3 mm	N/A 3.014 mm	N/A 3 mm	N/A 1.5 mm	N/A
BB030606BP25	N/A 6 mm	N/A 6 mm	N/A 9 mm	N/A 3 mm	N/A 3.014 mm	N/A 3 mm	N/A 1.5 mm	N/A
BB030610BP25	N/A 10 mm	N/A 6 mm	N/A 9 mm	N/A 3 mm	N/A 3.014 mm	N/A 3 mm	N/A 1.5 mm	N/A
BB040804BP25	N/A 4 mm	N/A 8 mm	N/A 12 mm	N/A 4 mm	N/A 4.018 mm	N/A 4 mm	N/A 2 mm	N/A
BB040808BP25	N/A 8 mm	N/A 8 mm	N/A 12 mm	N/A 4 mm	N/A 4.018 mm	N/A 4 mm	N/A 2 mm	N/A
BB040812BP25	N/A 12 mm	N/A 8 mm	N/A 12 mm	N/A 4 mm	N/A 4.018 mm	N/A 4 mm	N/A 2 mm	N/A
BB061006BP25	N/A 6 mm	N/A 10 mm	N/A 14 mm	N/A 6 mm	N/A 6.018 mm	N/A 6 mm	N/A 2 mm	N/A
BB061010BP25	N/A 10 mm	N/A 10 mm	N/A 14 mm	N/A 6 mm	N/A 6.018 mm	N/A 6 mm	N/A 2 mm	N/A
BB061016BP25	N/A 16 mm	N/A 10 mm	N/A 14 mm	N/A 6 mm	N/A 6.018 mm	N/A 6 mm	N/A 2 mm	N/A
BB081208BP25	N/A 8 mm	N/A 12 mm	N/A 16 mm	N/A 8 mm	N/A 8.022 mm	N/A 8 mm	N/A 2 mm	N/A
BB081212BP25	N/A 12 mm	N/A 12 mm	N/A 16 mm	N/A 8 mm	N/A 8.022 mm	N/A 8 mm	N/A 2 mm	N/A
BB081216BP25	N/A 16 mm	N/A 12 mm	N/A 16 mm	N/A 8 mm	N/A 8.022 mm	N/A 8 mm	N/A 2 mm	N/A
BB091410BP25	N/A 10 mm	N/A 14 mm	N/A 19 mm	N/A 9 mm	N/A 9.022 mm	N/A 9 mm	N/A 2.5 mm	N/A
BB091414BP25	N/A 14 mm	N/A 14 mm	N/A 19 mm	N/A 9 mm	N/A 9.022 mm	N/A 9 mm	N/A 2.5 mm	N/A
BB101310BP25	N/A 10 mm	N/A 13 mm	N/A 16 mm	N/A 10 mm	N/A 10.022 mm	N/A 10 mm	N/A 1.5 mm	N/A
BB101316BP25	N/A 16 mm	N/A 13 mm	N/A 16 mm	N/A 10 mm	N/A 10.022 mm	N/A 10 mm	N/A 1.5 mm	N/A
BB101320BP25	N/A 20 mm	N/A 13 mm	N/A 16 mm	N/A 10 mm	N/A 10.022 mm	N/A 10 mm	N/A 1.5 mm	N/A
BB101510BP25	N/A 10 mm	N/A 15 mm	N/A 20 mm	N/A 10 mm	N/A 10.022 mm	N/A 10 mm	N/A 2.5 mm	N/A
BB101516BP25	N/A 16 mm	N/A 15 mm	N/A 20 mm	N/A 10 mm	N/A 10.022 mm	N/A 10 mm	N/A 2.5 mm	N/A
BB101520BP25	N/A 20 mm	N/A 15 mm	N/A 20 mm	N/A 10 mm	N/A 10.022 mm	N/A 10 mm	N/A 2.5 mm	N/A
BB101608BP25	N/A 8 mm	N/A 16 mm	N/A 22 mm	N/A 10 mm	N/A 10.022 mm	N/A 10 mm	N/A 3 mm	N/A
BB101610BP25	N/A 10 mm	N/A 16 mm	N/A 22 mm	N/A 10 mm	N/A 10.022 mm	N/A 10 mm	N/A 3 mm	N/A
BB101616BP25	N/A 16 mm	N/A 16 mm	N/A 22 mm	N/A 10 mm	N/A 10.022 mm	N/A 10 mm	N/A 3 mm	N/A
BB121512BP25	N/A 12 mm	N/A 15 mm	N/A 18 mm	N/A 12 mm	N/A 12.027 mm	N/A 12 mm	N/A 1.5 mm	N/A
BB121516BP25	N/A 16 mm	N/A 15 mm	N/A 18 mm	N/A 12 mm	N/A 12.027 mm	N/A 12 mm	N/A 1.5 mm	N/A

Part Number

B

Do

Dfl

Di

⌀ Installation max.

⌀ Installation min.

Sfl

CAD

BB030604BP25

N/A 4 mm

N/A 6 mm

N/A 9 mm

N/A 3 mm

N/A 3.014 mm

N/A 3 mm

N/A 1.5 mm

N/A

BB030606BP25

N/A 6 mm

N/A 9 mm

N/A 3 mm

N/A 3.014 mm

N/A 3 mm

N/A 1.5 mm

N/A

BB030610BP25

N/A 10 mm

N/A 6 mm

N/A 9 mm

N/A 3 mm

N/A 3.014 mm

N/A 3 mm

N/A 1.5 mm

N/A

BB040804BP25

N/A 4 mm

N/A 8 mm

N/A 12 mm

N/A 4 mm

N/A 4.018 mm

N/A 4 mm

N/A 2 mm

N/A

BB040808BP25

N/A 8 mm

N/A 12 mm

N/A 4 mm

N/A 4.018 mm

N/A 4 mm

N/A 2 mm

N/A

BB040812BP25

N/A 12 mm

N/A 8 mm

N/A 12 mm

N/A 4 mm

N/A 4.018 mm

N/A 4 mm

N/A 2 mm

N/A

BB061006BP25

N/A 6 mm

N/A 10 mm

N/A 14 mm

N/A 6 mm

N/A 6.018 mm

N/A 6 mm

N/A 2 mm

N/A

BB061010BP25

N/A 10 mm

N/A 14 mm

N/A 6 mm

N/A 6.018 mm

N/A 6 mm

N/A 2 mm

N/A

BB061016BP25

N/A 16 mm

N/A 10 mm

N/A 14 mm

N/A 6 mm

N/A 6.018 mm

N/A 6 mm

N/A 2 mm

N/A

BB081208BP25

N/A 8 mm

N/A 12 mm

N/A 16 mm

N/A 8 mm

N/A 8.022 mm

N/A 8 mm

N/A 2 mm

N/A

BB081212BP25

N/A 12 mm

N/A 16 mm

N/A 8 mm

N/A 8.022 mm

N/A 8 mm

N/A 2 mm

N/A

BB081216BP25

N/A 16 mm

N/A 12 mm

N/A 16 mm

N/A 8 mm

N/A 8.022 mm

N/A 8 mm

N/A 2 mm

N/A

BB091410BP25

N/A 10 mm

N/A 14 mm

N/A 19 mm

N/A 9 mm

N/A 9.022 mm

N/A 9 mm

N/A 2.5 mm

N/A

BB091414BP25

N/A 14 mm

N/A 19 mm

N/A 9 mm

N/A 9.022 mm

N/A 9 mm

N/A 2.5 mm

N/A

BB101310BP25

N/A 10 mm

N/A 13 mm

N/A 16 mm

N/A 10 mm

N/A 10.022 mm

N/A 10 mm

N/A 1.5 mm

N/A

BB101316BP25

N/A 16 mm

N/A 13 mm

N/A 16 mm

N/A 10 mm

N/A 10.022 mm

N/A 10 mm

N/A 1.5 mm

N/A

BB101320BP25

N/A 20 mm

N/A 13 mm

N/A 16 mm

N/A 10 mm

N/A 10.022 mm

N/A 10 mm

N/A 1.5 mm

N/A

BB101510BP25

N/A 10 mm

N/A 15 mm

N/A 20 mm

N/A 10 mm

N/A 10.022 mm

N/A 10 mm

N/A 2.5 mm

N/A

BB101516BP25

N/A 16 mm

N/A 15 mm

N/A 20 mm

N/A 10 mm

N/A 10.022 mm

N/A 10 mm

N/A 2.5 mm

N/A

BB101520BP25

N/A 20 mm

N/A 15 mm

N/A 20 mm

N/A 10 mm

N/A 10.022 mm

N/A 10 mm

N/A 2.5 mm

N/A

BB101608BP25

N/A 8 mm

N/A 16 mm

N/A 22 mm

N/A 10 mm

N/A 10.022 mm

N/A 10 mm

N/A 3 mm

N/A

BB101610BP25

N/A 10 mm

N/A 16 mm

N/A 22 mm

N/A 10 mm

N/A 10.022 mm

N/A 10 mm

N/A 3 mm

N/A

BB101616BP25

N/A 16 mm

N/A 22 mm

N/A 10 mm

N/A 10.022 mm

N/A 10 mm

N/A 3 mm

N/A

BB121512BP25

N/A 12 mm

N/A 15 mm

N/A 18 mm

N/A 12 mm

N/A 12.027 mm

N/A 12 mm

N/A 1.5 mm

N/A

BB121516BP25

N/A 16 mm

N/A 15 mm

N/A 18 mm

N/A 12 mm

N/A 12.027 mm

N/A 12 mm

N/A 1.5 mm

N/A
