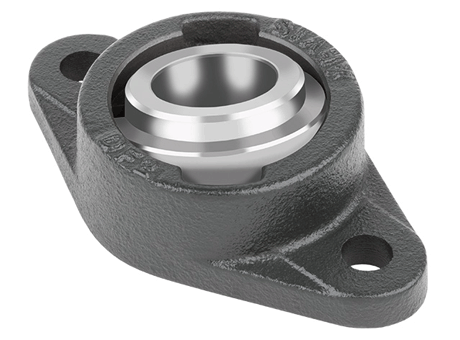

GGB DF-Exalign Flange Bearing On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

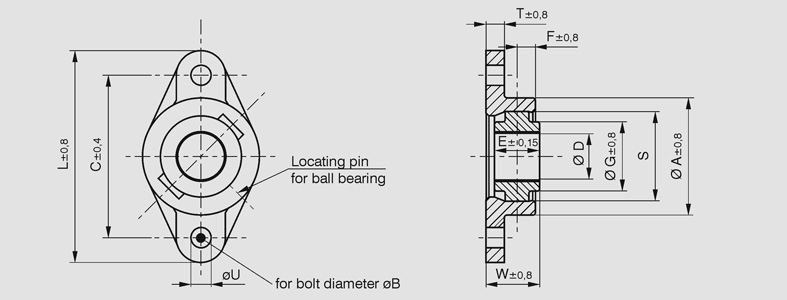

Part Number	A	⌀ B	C	D	ball bore H7	E	L	CAD
DF1-10M	N/A 54 mm	N/A 8 mm	N/A 81 mm	N/A 10 mm	N/A 12 mm	N/A 15 mm	N/A 103 mm	N/A
DF1-12M	N/A 54 mm	N/A 8 mm	N/A 81 mm	N/A 12.00 mm	N/A 14 mm	N/A 15 mm	N/A 103 mm	N/A
DF1-15M	N/A 54 mm	N/A 8 mm	N/A 81 mm	N/A 15.00 mm	N/A 17 mm	N/A 15 mm	N/A 103 mm	N/A
DF2-20M	N/A 64 mm	N/A 10 mm	N/A 89 mm	N/A 20 mm	N/A 23 mm	N/A 20 mm	N/A 116 mm	N/A
DF2-25M	N/A 64 mm	N/A 10 mm	N/A 89 mm	N/A 25 mm	N/A 28 mm	N/A 25 mm	N/A 116 mm	N/A
DF3-30M	N/A 79 mm	N/A 12 mm	N/A 113 mm	N/A 30 mm	N/A 34 mm	N/A 30 mm	N/A 143 mm	N/A
DF4-35M	N/A 95 mm	N/A 12 mm	N/A 130 mm	N/A 35 mm	N/A 39 mm	N/A 35 mm	N/A 159 mm	N/A
DF4-40M	N/A 95 mm	N/A 12 mm	N/A 130 mm	N/A 40 mm	N/A 44 mm	N/A 40 mm	N/A 159 mm	N/A
DF5-45M	N/A 108 mm	N/A 12 mm	N/A 144 mm	N/A 45.000 mm	N/A 50 mm	N/A 45 mm	N/A 175 mm	N/A
DF6-50M	N/A 117 mm	N/A 16 mm	N/A 157 mm	N/A 50 mm	N/A 55 mm	N/A 50 mm	N/A 190 mm	N/A
DF7-55M	N/A 137 mm	N/A 16 mm	N/A 184 mm	N/A 55 mm	N/A 60 mm	N/A 55 mm	N/A 216 mm	N/A
DF7-60M	N/A 137 mm	N/A 16 mm	N/A 184 mm	N/A 60 mm	N/A 65 mm	N/A 60 mm	N/A 216 mm	N/A
DF7-65M	N/A 137 mm	N/A 16 mm	N/A 184 mm	N/A 65 mm	N/A 70 mm	N/A 60 mm	N/A 216 mm	N/A
DF8-70M	N/A 143 mm	N/A 16 mm	N/A 202 mm	N/A 70 mm	N/A 75 mm	N/A 65 mm	N/A 236 mm	N/A
DF8-75M	N/A 143 mm	N/A 16 mm	N/A 202 mm	N/A 75 mm	N/A 80 mm	N/A 65 mm	N/A 236 mm	N/A
DF9-80M	N/A 171 mm	N/A 20 mm	N/A 214 mm	N/A 80 mm	N/A 85 mm	N/A 80 mm	N/A 259 mm	N/A
DF9-85M	N/A 171 mm	N/A 20 mm	N/A 214 mm	N/A 85 mm	N/A 90 mm	N/A 80 mm	N/A 259 mm	N/A
DF10-90M	N/A 210 mm	N/A 20 mm	N/A 279 mm	N/A 90 mm	N/A 95 mm	N/A 80 mm	N/A 324 mm	N/A
DF10-100M	N/A 210 mm	N/A 20 mm	N/A 279 mm	N/A 100 mm	N/A 105 mm	N/A 80 mm	N/A 324 mm	N/A
