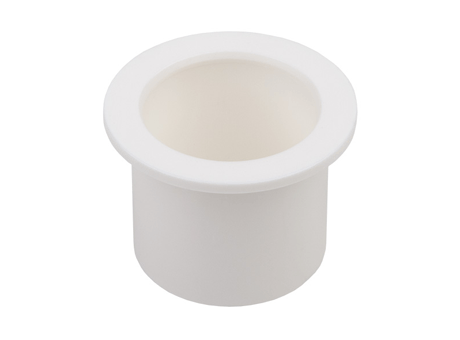

GGB EP22 flanged bushes On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

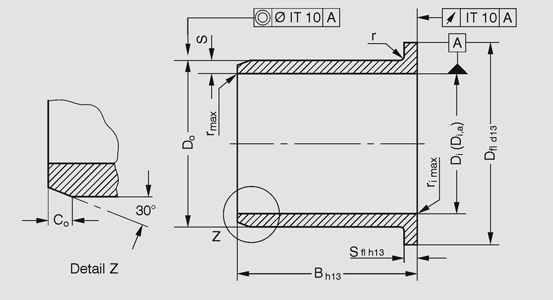

Part Number	B Middle h13 Tolerance	Do	Dfl Middle h13 Tolerance	Di	Di,a max. in middle H7	Di,a min. in middle H7	Sfl Middle h13 Tolerance	CAD
BB0806EP22	N/A 5.41 mm	N/A 10 mm	N/A 14.815 mm	N/A 8 mm	N/A 8.083 mm	N/A 8.025 mm	N/A 0.93 mm	N/A
BB0808EP22	N/A 7.39 mm	N/A 10 mm	N/A 14.815 mm	N/A 8 mm	N/A 8.083 mm	N/A 8.025 mm	N/A 0.93 mm	N/A
BB0810EP22	N/A 9.89 mm	N/A 10 mm	N/A 14.815 mm	N/A 8 mm	N/A 8.083 mm	N/A 8.025 mm	N/A 0.93 mm	N/A
BB1007EP22	N/A 6.89 mm	N/A 12 mm	N/A 17.815 mm	N/A 10 mm	N/A 10.083 mm	N/A 10.025 mm	N/A 0.93 mm	N/A
BB1009EP22	N/A 8.89 mm	N/A 12 mm	N/A 17.815 mm	N/A 10 mm	N/A 10.083 mm	N/A 10.025 mm	N/A 0.93 mm	N/A
BB1012EP22	N/A 11.865 mm	N/A 12 mm	N/A 17.815 mm	N/A 10 mm	N/A 10.083 mm	N/A 10.025 mm	N/A 0.93 mm	N/A
BB1015EP22	N/A 14.865 mm	N/A 12 mm	N/A 17.815 mm	N/A 10 mm	N/A 10.083 mm	N/A 10.025 mm	N/A 0.93 mm	N/A
BB1017EP22	N/A 16.865 mm	N/A 12 mm	N/A 17.815 mm	N/A 10 mm	N/A 10.083 mm	N/A 10.025 mm	N/A 0.93 mm	N/A
BB1207EP22	N/A 6.89 mm	N/A 14 mm	N/A 19.77 mm	N/A 12 mm	N/A 12.102 mm	N/A 12.032 mm	N/A 0.93 mm	N/A
BB1209EP22	N/A 8.89 mm	N/A 14 mm	N/A 19.77 mm	N/A 12 mm	N/A 12.102 mm	N/A 12.032 mm	N/A 0.93 mm	N/A
BB1212EP22	N/A 11.865 mm	N/A 14 mm	N/A 19.77 mm	N/A 12 mm	N/A 12.102 mm	N/A 12.032 mm	N/A 0.93 mm	N/A
BB1215EP22	N/A 14.865 mm	N/A 14 mm	N/A 19.77 mm	N/A 12 mm	N/A 12.102 mm	N/A 12.032 mm	N/A 0.93 mm	N/A
BB1217EP22	N/A 16.865 mm	N/A 14 mm	N/A 19.77 mm	N/A 12 mm	N/A 12.102 mm	N/A 12.032 mm	N/A 0.93 mm	N/A
BB1220EP22	N/A 19.835 mm	N/A 14 mm	N/A 19.77 mm	N/A 12 mm	N/A 12.102 mm	N/A 12.032 mm	N/A 0.93 mm	N/A
BB1412EP22	N/A 11.865 mm	N/A 16 mm	N/A 21.77 mm	N/A 14 mm	N/A 14.102 mm	N/A 14.032 mm	N/A 0.93 mm	N/A
BB1417EP22	N/A 16.865 mm	N/A 16 mm	N/A 21.77 mm	N/A 14 mm	N/A 14.102 mm	N/A 14.032 mm	N/A 0.93 mm	N/A
BB1509EP22	N/A 8.89 mm	N/A 17 mm	N/A 22.77 mm	N/A 15 mm	N/A 15.102 mm	N/A 15.032 mm	N/A 0.93 mm	N/A
BB1512EP22	N/A 11.865 mm	N/A 17 mm	N/A 22.77 mm	N/A 15 mm	N/A 15.102 mm	N/A 15.032 mm	N/A 0.93 mm	N/A
BB1517EP22	N/A 16.865 mm	N/A 17 mm	N/A 22.77 mm	N/A 15 mm	N/A 15.102 mm	N/A 15.032 mm	N/A 0.93 mm	N/A
BB1520EP22	N/A 19.835 mm	N/A 17 mm	N/A 22.77 mm	N/A 15 mm	N/A 15.102 mm	N/A 15.032 mm	N/A 0.93 mm	N/A
BB1617EP22	N/A 16.865 mm	N/A 18 mm	N/A 23.77 mm	N/A 16 mm	N/A 16.102 mm	N/A 16.032 mm	N/A 0.93 mm	N/A
BB2012EP22	N/A 11.365 mm	N/A 23 mm	N/A 29.77 mm	N/A 20 mm	N/A 20.124 mm	N/A 20.04 mm	N/A 1.43 mm	N/A
BB2017EP22	N/A 16.365 mm	N/A 23 mm	N/A 29.77 mm	N/A 20 mm	N/A 20.124 mm	N/A 20.04 mm	N/A 1.43 mm	N/A
BB2022EP22	N/A 21.335 mm	N/A 23 mm	N/A 29.77 mm	N/A 20 mm	N/A 20.124 mm	N/A 20.04 mm	N/A 1.43 mm	N/A
BB2512EP22	N/A 11.365 mm	N/A 28 mm	N/A 34.725 mm	N/A 25 mm	N/A 25.124 mm	N/A 25.04 mm	N/A 1.43 mm	N/A

Part Number

B Middle h13 Tolerance

Do

Dfl Middle h13 Tolerance

Di

Di,a max. in middle H7

Di,a min. in middle H7

Sfl Middle h13 Tolerance

CAD

BB0806EP22

N/A 5.41 mm

N/A 10 mm

N/A 14.815 mm

N/A 8 mm

N/A 8.083 mm

N/A 8.025 mm

N/A 0.93 mm

N/A

BB0808EP22

N/A 7.39 mm

N/A 10 mm

N/A 14.815 mm

N/A 8 mm

N/A 8.083 mm

N/A 8.025 mm

N/A 0.93 mm

N/A

BB0810EP22

N/A 9.89 mm

N/A 10 mm

N/A 14.815 mm

N/A 8 mm

N/A 8.083 mm

N/A 8.025 mm

N/A 0.93 mm

N/A

BB1007EP22

N/A 6.89 mm

N/A 12 mm

N/A 17.815 mm

N/A 10 mm

N/A 10.083 mm

N/A 10.025 mm

N/A 0.93 mm

N/A

BB1009EP22

N/A 8.89 mm

N/A 12 mm

N/A 17.815 mm

N/A 10 mm

N/A 10.083 mm

N/A 10.025 mm

N/A 0.93 mm

N/A

BB1012EP22

N/A 11.865 mm

N/A 12 mm

N/A 17.815 mm

N/A 10 mm

N/A 10.083 mm

N/A 10.025 mm

N/A 0.93 mm

N/A

BB1015EP22

N/A 14.865 mm

N/A 12 mm

N/A 17.815 mm

N/A 10 mm

N/A 10.083 mm

N/A 10.025 mm

N/A 0.93 mm

N/A

BB1017EP22

N/A 16.865 mm

N/A 12 mm

N/A 17.815 mm

N/A 10 mm

N/A 10.083 mm

N/A 10.025 mm

N/A 0.93 mm

N/A

BB1207EP22

N/A 6.89 mm

N/A 14 mm

N/A 19.77 mm

N/A 12 mm

N/A 12.102 mm

N/A 12.032 mm

N/A 0.93 mm

N/A

BB1209EP22

N/A 8.89 mm

N/A 14 mm

N/A 19.77 mm

N/A 12 mm

N/A 12.102 mm

N/A 12.032 mm

N/A 0.93 mm

N/A

BB1212EP22

N/A 11.865 mm

N/A 14 mm

N/A 19.77 mm

N/A 12 mm

N/A 12.102 mm

N/A 12.032 mm

N/A 0.93 mm

N/A

BB1215EP22

N/A 14.865 mm

N/A 14 mm

N/A 19.77 mm

N/A 12 mm

N/A 12.102 mm

N/A 12.032 mm

N/A 0.93 mm

N/A

BB1217EP22

N/A 16.865 mm

N/A 14 mm

N/A 19.77 mm

N/A 12 mm

N/A 12.102 mm

N/A 12.032 mm

N/A 0.93 mm

N/A

BB1220EP22

N/A 19.835 mm

N/A 14 mm

N/A 19.77 mm

N/A 12 mm

N/A 12.102 mm

N/A 12.032 mm

N/A 0.93 mm

N/A

BB1412EP22

N/A 11.865 mm

N/A 16 mm

N/A 21.77 mm

N/A 14 mm

N/A 14.102 mm

N/A 14.032 mm

N/A 0.93 mm

N/A

BB1417EP22

N/A 16.865 mm

N/A 16 mm

N/A 21.77 mm

N/A 14 mm

N/A 14.102 mm

N/A 14.032 mm

N/A 0.93 mm

N/A

BB1509EP22

N/A 8.89 mm

N/A 17 mm

N/A 22.77 mm

N/A 15 mm

N/A 15.102 mm

N/A 15.032 mm

N/A 0.93 mm

N/A

BB1512EP22

N/A 11.865 mm

N/A 17 mm

N/A 22.77 mm

N/A 15 mm

N/A 15.102 mm

N/A 15.032 mm

N/A 0.93 mm

N/A

BB1517EP22

N/A 16.865 mm

N/A 17 mm

N/A 22.77 mm

N/A 15 mm

N/A 15.102 mm

N/A 15.032 mm

N/A 0.93 mm

N/A

BB1520EP22

N/A 19.835 mm

N/A 17 mm

N/A 22.77 mm

N/A 15 mm

N/A 15.102 mm

N/A 15.032 mm

N/A 0.93 mm

N/A

BB1617EP22

N/A 16.865 mm

N/A 18 mm

N/A 23.77 mm

N/A 16 mm

N/A 16.102 mm

N/A 16.032 mm

N/A 0.93 mm

N/A

BB2012EP22

N/A 11.365 mm

N/A 23 mm

N/A 29.77 mm

N/A 20 mm

N/A 20.124 mm

N/A 20.04 mm

N/A 1.43 mm

N/A

BB2017EP22

N/A 16.365 mm

N/A 23 mm

N/A 29.77 mm

N/A 20 mm

N/A 20.124 mm

N/A 20.04 mm

N/A 1.43 mm

N/A

BB2022EP22

N/A 21.335 mm

N/A 23 mm

N/A 29.77 mm

N/A 20 mm

N/A 20.124 mm

N/A 20.04 mm

N/A 1.43 mm

N/A

BB2512EP22

N/A 11.365 mm

N/A 28 mm

N/A 34.725 mm

N/A 25 mm

N/A 25.124 mm

N/A 25.04 mm

N/A 1.43 mm

N/A
