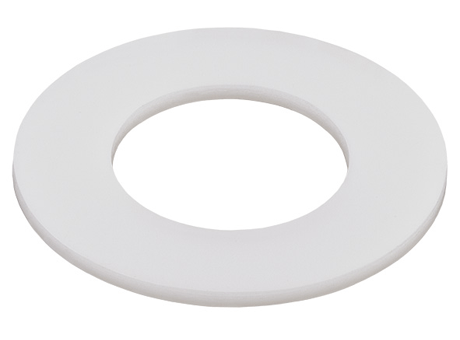

GGB Glacetal KA thrust washers - metric On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

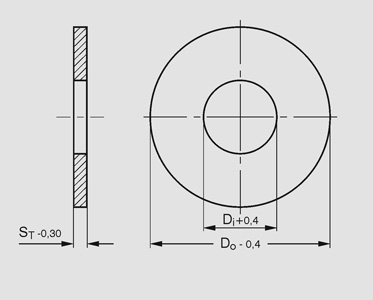

Part Number	Di	di_min	Do	do_min	ST	st_min	CAD
WC10KA	N/A 10.9 mm	N/A 10.5 mm	N/A 24.2 mm	N/A 23.8 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC12KA	N/A 12.9 mm	N/A 12.5 mm	N/A 26.2 mm	N/A 25.8 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC14KA	N/A 14.9 mm	N/A 14.5 mm	N/A 30.2 mm	N/A 29.8 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC16KA	N/A 16.9 mm	N/A 16.5 mm	N/A 32.2 mm	N/A 31.8 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC18KA	N/A 18.9 mm	N/A 18.5 mm	N/A 36.2 mm	N/A 35.8 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC20KA	N/A 20.9 mm	N/A 20.5 mm	N/A 38.2 mm	N/A 31.6 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC22KA	N/A 22.9 mm	N/A 22.5 mm	N/A 42.2 mm	N/A 41.8 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC24KA	N/A 24.9 mm	N/A 24.5 mm	N/A 44.2 mm	N/A 43.8 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC25KA	N/A 25.9 mm	N/A 25.5 mm	N/A 48.2 mm	N/A 47.8 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC28KA	N/A 28.9 mm	N/A 28.5 mm	N/A 48.2 mm	N/A 47.8 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC30KA	N/A 30.9 mm	N/A 30.5 mm	N/A 54.2 mm	N/A 53.8 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC35KA	N/A 36.4 mm	N/A 36 mm	N/A 62.2 mm	N/A 61.8 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC40KA	N/A 41.4 mm	N/A 41 mm	N/A 66.2 mm	N/A 65.8 mm	N/A 1.65 mm	N/A 1.35 mm	N/A
WC45KA	N/A 46.4 mm	N/A 46 mm	N/A 74.2 mm	N/A 73.8 mm	N/A 2.15 mm	N/A 1.85 mm	N/A
WC50KA	N/A 51.4 mm	N/A 51 mm	N/A 78.2 mm	N/A 77.8 mm	N/A 2.15 mm	N/A 1.85 mm	N/A

Part Number

Di

di_min

Do

do_min

ST

st_min

CAD

WC10KA

N/A 10.9 mm

N/A 10.5 mm

N/A 24.2 mm

N/A 23.8 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC12KA

N/A 12.9 mm

N/A 12.5 mm

N/A 26.2 mm

N/A 25.8 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC14KA

N/A 14.9 mm

N/A 14.5 mm

N/A 30.2 mm

N/A 29.8 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC16KA

N/A 16.9 mm

N/A 16.5 mm

N/A 32.2 mm

N/A 31.8 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC18KA

N/A 18.9 mm

N/A 18.5 mm

N/A 36.2 mm

N/A 35.8 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC20KA

N/A 20.9 mm

N/A 20.5 mm

N/A 38.2 mm

N/A 31.6 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC22KA

N/A 22.9 mm

N/A 22.5 mm

N/A 42.2 mm

N/A 41.8 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC24KA

N/A 24.9 mm

N/A 24.5 mm

N/A 44.2 mm

N/A 43.8 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC25KA

N/A 25.9 mm

N/A 25.5 mm

N/A 48.2 mm

N/A 47.8 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC28KA

N/A 28.9 mm

N/A 28.5 mm

N/A 48.2 mm

N/A 47.8 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC30KA

N/A 30.9 mm

N/A 30.5 mm

N/A 54.2 mm

N/A 53.8 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC35KA

N/A 36.4 mm

N/A 36 mm

N/A 62.2 mm

N/A 61.8 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC40KA

N/A 41.4 mm

N/A 41 mm

N/A 66.2 mm

N/A 65.8 mm

N/A 1.65 mm

N/A 1.35 mm

N/A

WC45KA

N/A 46.4 mm

N/A 46 mm

N/A 74.2 mm

N/A 73.8 mm

N/A 2.15 mm

N/A 1.85 mm

N/A

WC50KA

N/A 51.4 mm

N/A 51 mm

N/A 78.2 mm

N/A 77.8 mm

N/A 2.15 mm

N/A 1.85 mm

N/A
