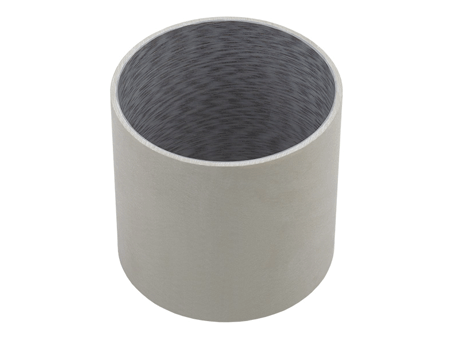

GGB MLG bushes - metric 2.5 mm wall series On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

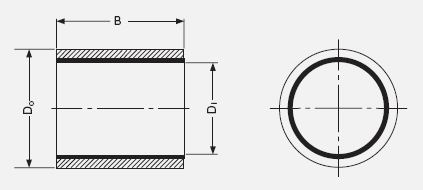

Part Number	B max.	B min.	Do	Di	Di x Do	ep	CAD
121703MLG	N/A 24 mm	N/A 3 mm	N/A 17.065 mm	N/A 12.15 mm	N/A 12 x 17 mm	N/A 2.5 mm	N/A
152004MLG	N/A 30 mm	N/A 4 mm	N/A 20.065 mm	N/A 15.15 mm	N/A 15 x 20 mm	N/A 2.5 mm	N/A
162104MLG	N/A 32 mm	N/A 4 mm	N/A 21.065 mm	N/A 16.15 mm	N/A 16 x 21 mm	N/A 2.5 mm	N/A
182305MLG	N/A 36 mm	N/A 5 mm	N/A 23.065 mm	N/A 18.15 mm	N/A 18 x 23 mm	N/A 2.5 mm	N/A
202505MLG	N/A 40 mm	N/A 5 mm	N/A 25.065 mm	N/A 20.15 mm	N/A 20 x 25 mm	N/A 2.5 mm	N/A
222706MLG	N/A 44 mm	N/A 6 mm	N/A 27.065 mm	N/A 22.15 mm	N/A 22 x 27 mm	N/A 2.5 mm	N/A
253006MLG	N/A 50 mm	N/A 6 mm	N/A 30.065 mm	N/A 25.15 mm	N/A 25 x 30 mm	N/A 2.5 mm	N/A
283307MLG	N/A 56 mm	N/A 7 mm	N/A 33.07 mm	N/A 28.155 mm	N/A 28 x 33 mm	N/A 2.5 mm	N/A
303508MLG	N/A 60 mm	N/A 8 mm	N/A 35.07 mm	N/A 30.155 mm	N/A 30 x 35 mm	N/A 2.5 mm	N/A
354009MLG	N/A 70 mm	N/A 9 mm	N/A 40.07 mm	N/A 35.155 mm	N/A 35 x 40 mm	N/A 2.5 mm	N/A
404510MLG	N/A 80 mm	N/A 10 mm	N/A 45.07 mm	N/A 40.155 mm	N/A 40 x 45 mm	N/A 2.5 mm	N/A
455011MLG	N/A 90 mm	N/A 11 mm	N/A 50.075 mm	N/A 45.175 mm	N/A 45 x 50 mm	N/A 2.5 mm	N/A
505513MLG	N/A 100 mm	N/A 13 mm	N/A 55.0775 mm	N/A 50.175 mm	N/A 50 x 55 mm	N/A 2.5 mm	N/A
556014MLG	N/A 110 mm	N/A 14 mm	N/A 60.09 mm	N/A 55.19 mm	N/A 55 x 60 mm	N/A 2.5 mm	N/A
606515MLG	N/A 120 mm	N/A 15 mm	N/A 65.09 mm	N/A 60.19 mm	N/A 60 x 65 mm	N/A 2.5 mm	N/A
657016MLG	N/A 130 mm	N/A 16 mm	N/A 70.09 mm	N/A 65.19 mm	N/A 65 x 70 mm	N/A 2.5 mm	N/A
707518MLG	N/A 140 mm	N/A 18 mm	N/A 75.09 mm	N/A 70.195 mm	N/A 70 x 75 mm	N/A 2.5 mm	N/A
758019MLG	N/A 150 mm	N/A 19 mm	N/A 80.0975 mm	N/A 75.215 mm	N/A 75 x 80 mm	N/A 2.5 mm	N/A
808520MLG	N/A 160 mm	N/A 20 mm	N/A 85.1 mm	N/A 80.215 mm	N/A 80 x 85 mm	N/A 2.5 mm	N/A
859021MLG	N/A 170 mm	N/A 21 mm	N/A 90.1 mm	N/A 85.215 mm	N/A 85 x 90 mm	N/A 2.5 mm	N/A
909523MLG	N/A 180 mm	N/A 23 mm	N/A 95.11 mm	N/A 90.225 mm	N/A 90 x 95 mm	N/A 2.5 mm	N/A
9510024MLG	N/A 190 mm	N/A 24 mm	N/A 100.11 mm	N/A 95.2375 mm	N/A 95 x 100 mm	N/A 2.5 mm	N/A
10010525MLG	N/A 200 mm	N/A 25 mm	N/A 105.11 mm	N/A 100.2375 mm	N/A 100 x 105 mm	N/A 2.5 mm	N/A
11011528MLG	N/A 220 mm	N/A 28 mm	N/A 115.1075 mm	N/A 110.2375 mm	N/A 110 x 115 mm	N/A 2.5 mm	N/A
12012530MLG	N/A 240 mm	N/A 30 mm	N/A 125.135 mm	N/A 120.2675 mm	N/A 120 x 125 mm	N/A 2.5 mm	N/A

Part Number

B max.

B min.

Do

Di

Di x Do

ep

CAD

121703MLG

N/A 24 mm

N/A 3 mm

N/A 17.065 mm

N/A 12.15 mm

N/A 12 x 17 mm

N/A 2.5 mm

N/A

152004MLG

N/A 30 mm

N/A 4 mm

N/A 20.065 mm

N/A 15.15 mm

N/A 15 x 20 mm

N/A 2.5 mm

N/A

162104MLG

N/A 32 mm

N/A 4 mm

N/A 21.065 mm

N/A 16.15 mm

N/A 16 x 21 mm

N/A 2.5 mm

N/A

182305MLG

N/A 36 mm

N/A 5 mm

N/A 23.065 mm

N/A 18.15 mm

N/A 18 x 23 mm

N/A 2.5 mm

N/A

202505MLG

N/A 40 mm

N/A 5 mm

N/A 25.065 mm

N/A 20.15 mm

N/A 20 x 25 mm

N/A 2.5 mm

N/A

222706MLG

N/A 44 mm

N/A 6 mm

N/A 27.065 mm

N/A 22.15 mm

N/A 22 x 27 mm

N/A 2.5 mm

N/A

253006MLG

N/A 50 mm

N/A 6 mm

N/A 30.065 mm

N/A 25.15 mm

N/A 25 x 30 mm

N/A 2.5 mm

N/A

283307MLG

N/A 56 mm

N/A 7 mm

N/A 33.07 mm

N/A 28.155 mm

N/A 28 x 33 mm

N/A 2.5 mm

N/A

303508MLG

N/A 60 mm

N/A 8 mm

N/A 35.07 mm

N/A 30.155 mm

N/A 30 x 35 mm

N/A 2.5 mm

N/A

354009MLG

N/A 70 mm

N/A 9 mm

N/A 40.07 mm

N/A 35.155 mm

N/A 35 x 40 mm

N/A 2.5 mm

N/A

404510MLG

N/A 80 mm

N/A 10 mm

N/A 45.07 mm

N/A 40.155 mm

N/A 40 x 45 mm

N/A 2.5 mm

N/A

455011MLG

N/A 90 mm

N/A 11 mm

N/A 50.075 mm

N/A 45.175 mm

N/A 45 x 50 mm

N/A 2.5 mm

N/A

505513MLG

N/A 100 mm

N/A 13 mm

N/A 55.0775 mm

N/A 50.175 mm

N/A 50 x 55 mm

N/A 2.5 mm

N/A

556014MLG

N/A 110 mm

N/A 14 mm

N/A 60.09 mm

N/A 55.19 mm

N/A 55 x 60 mm

N/A 2.5 mm

N/A

606515MLG

N/A 120 mm

N/A 15 mm

N/A 65.09 mm

N/A 60.19 mm

N/A 60 x 65 mm

N/A 2.5 mm

N/A

657016MLG

N/A 130 mm

N/A 16 mm

N/A 70.09 mm

N/A 65.19 mm

N/A 65 x 70 mm

N/A 2.5 mm

N/A

707518MLG

N/A 140 mm

N/A 18 mm

N/A 75.09 mm

N/A 70.195 mm

N/A 70 x 75 mm

N/A 2.5 mm

N/A

758019MLG

N/A 150 mm

N/A 19 mm

N/A 80.0975 mm

N/A 75.215 mm

N/A 75 x 80 mm

N/A 2.5 mm

N/A

808520MLG

N/A 160 mm

N/A 20 mm

N/A 85.1 mm

N/A 80.215 mm

N/A 80 x 85 mm

N/A 2.5 mm

N/A

859021MLG

N/A 170 mm

N/A 21 mm

N/A 90.1 mm

N/A 85.215 mm

N/A 85 x 90 mm

N/A 2.5 mm

N/A

909523MLG

N/A 180 mm

N/A 23 mm

N/A 95.11 mm

N/A 90.225 mm

N/A 90 x 95 mm

N/A 2.5 mm

N/A

9510024MLG

N/A 190 mm

N/A 24 mm

N/A 100.11 mm

N/A 95.2375 mm

N/A 95 x 100 mm

N/A 2.5 mm

N/A

10010525MLG

N/A 200 mm

N/A 25 mm

N/A 105.11 mm

N/A 100.2375 mm

N/A 100 x 105 mm

N/A 2.5 mm

N/A

11011528MLG

N/A 220 mm

N/A 28 mm

N/A 115.1075 mm

N/A 110.2375 mm

N/A 110 x 115 mm

N/A 2.5 mm

N/A

12012530MLG

N/A 240 mm

N/A 30 mm

N/A 125.135 mm

N/A 120.2675 mm

N/A 120 x 125 mm

N/A 2.5 mm

N/A
