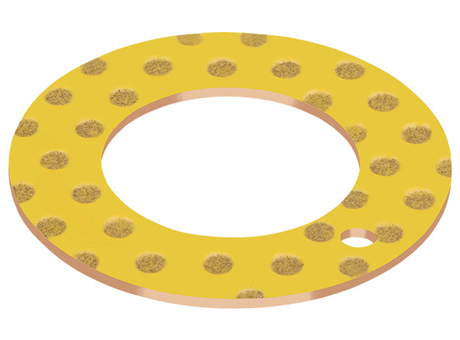

  • GGB DX thrust washers - inch DXR series

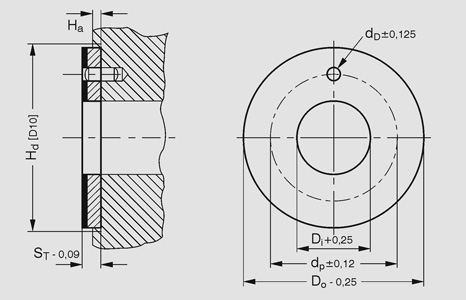

  • GGB-DX-thrust-washers---inch-DXR-series-dimensions
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Part Number

dD

Di

Do

dP

CAD

N/A 0.104 in N/A 0.625 in N/A 1.125 in N/A 0.875 in N/A CAD
N/A 0.104 in N/A 0.75 in N/A 1.25 in N/A 1 in N/A CAD
N/A 0.135 in N/A 0.875 in N/A 1.5 in N/A 1.187 in N/A CAD
N/A 0.135 in N/A 1 in N/A 1.75 in N/A 1.375 in N/A CAD
N/A 0.166 in N/A 1.125 in N/A 2 in N/A 1.562 in N/A CAD
N/A 0.166 in N/A 1.25 in N/A 2.125 in N/A 1.687 in N/A CAD
N/A 0.166 in N/A 1.375 in N/A 2.25 in N/A 1.812 in N/A CAD
N/A 0.197 in N/A 1.5 in N/A 2.5 in N/A 2 in N/A CAD
N/A 0.197 in N/A 1.625 in N/A 2.625 in N/A 2.125 in N/A CAD
N/A 0.197 in N/A 1.75 in N/A 2.75 in N/A 2.25 in N/A CAD
N/A 0.197 in N/A 2 in N/A 3 in N/A 2.5 in N/A CAD
N/A 0.197 in N/A 2.125 in N/A 3.125 in N/A 2.625 in N/A CAD
N/A 0.197 in N/A 2.25 in N/A 3.25 in N/A 2.75 in N/A CAD
