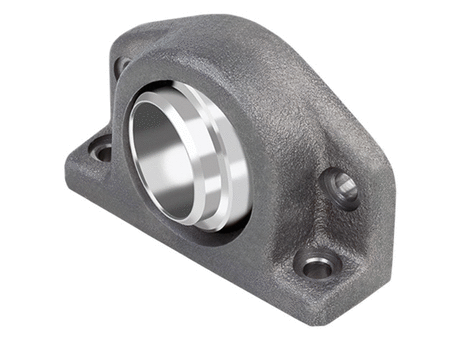

GGB UNI - Bearing On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

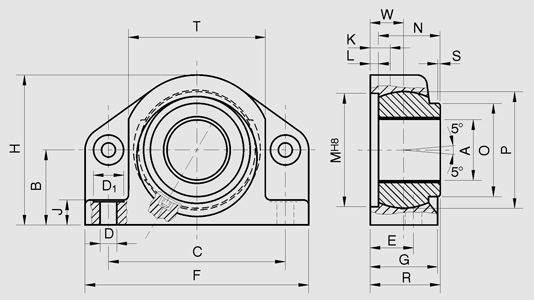

Part Number	⌀-A	B	C	D	D1	ball bore H7	L	CAD
1-10	N/A 10 mm	N/A 28 mm	N/A 72 mm	N/A 8.5 mm	N/A 13.5 mm	N/A 12 mm	N/A 3 mm	N/A
1-15	N/A 15 mm	N/A 28 mm	N/A 72 mm	N/A 8.5 mm	N/A 13.5 mm	N/A 17 mm	N/A 3 mm	N/A
1-20	N/A 20 mm	N/A 28 mm	N/A 72 mm	N/A 8.5 mm	N/A 13.5 mm	N/A 23 mm	N/A 3 mm	N/A
1-25	N/A 25 mm	N/A 28 mm	N/A 72 mm	N/A 8.5 mm	N/A 13.5 mm	N/A 28 mm	N/A 3 mm	N/A
2-30	N/A 30 mm	N/A 42 mm	N/A 104 mm	N/A 10.5 mm	N/A 18 mm	N/A 34 mm	N/A 5 mm	N/A
2-35	N/A 35 mm	N/A 42 mm	N/A 104 mm	N/A 10.5 mm	N/A 18 mm	N/A 39 mm	N/A 5 mm	N/A
2-40	N/A 40 mm	N/A 42 mm	N/A 104 mm	N/A 10.5 mm	N/A 18 mm	N/A 44 mm	N/A 5 mm	N/A
3-45	N/A 45 mm	N/A 60 mm	N/A 142 mm	N/A 13.5 mm	N/A 27 mm	N/A 50 mm	N/A 7 mm	N/A
3-50	N/A 50 mm	N/A 60 mm	N/A 142 mm	N/A 13.5 mm	N/A 27 mm	N/A 55 mm	N/A 7 mm	N/A
3-55	N/A 55 mm	N/A 60 mm	N/A 142 mm	N/A 13.5 mm	N/A 27 mm	N/A 60 mm	N/A 7 mm	N/A
3-60	N/A 60 mm	N/A 60 mm	N/A 142 mm	N/A 13.5 mm	N/A 27 mm	N/A 65 mm	N/A 7 mm	N/A
4-65	N/A 65 mm	N/A 75 mm	N/A 182 mm	N/A 17.5 mm	N/A 33 mm	N/A 70 mm	N/A 10 mm	N/A
4-70	N/A 70 mm	N/A 75 mm	N/A 182 mm	N/A 17.5 mm	N/A 33 mm	N/A 75 mm	N/A 10 mm	N/A
4-75	N/A 75 mm	N/A 75 mm	N/A 182 mm	N/A 17.5 mm	N/A 33 mm	N/A 80 mm	N/A 10 mm	N/A
4-80	N/A 80 mm	N/A 75 mm	N/A 182 mm	N/A 17.5 mm	N/A 33 mm	N/A 85 mm	N/A 10 mm	N/A
5-85	N/A 85 mm	N/A 90 mm	N/A 222 mm	N/A 21 mm	N/A 40 mm	N/A 90 mm	N/A 10 mm	N/A
5-90	N/A 90 mm	N/A 90 mm	N/A 222 mm	N/A 21 mm	N/A 40 mm	N/A 95 mm	N/A 10 mm	N/A
5-95	N/A 95 mm	N/A 90 mm	N/A 222 mm	N/A 21 mm	N/A 40 mm	N/A 100 mm	N/A 10 mm	N/A
5-100	N/A 100 mm	N/A 90 mm	N/A 222 mm	N/A 21 mm	N/A 40 mm	N/A 105 mm	N/A 10 mm	N/A

Part Number

⌀-A

B

C

D

D1

ball bore H7

L

CAD

1-10

N/A 10 mm

N/A 28 mm

N/A 72 mm

N/A 8.5 mm

N/A 13.5 mm

N/A 12 mm

N/A 3 mm

N/A

1-15

N/A 15 mm

N/A 28 mm

N/A 72 mm

N/A 8.5 mm

N/A 13.5 mm

N/A 17 mm

N/A 3 mm

N/A

1-20

N/A 20 mm

N/A 28 mm

N/A 72 mm

N/A 8.5 mm

N/A 13.5 mm

N/A 23 mm

N/A 3 mm

N/A

1-25

N/A 25 mm

N/A 28 mm

N/A 72 mm

N/A 8.5 mm

N/A 13.5 mm

N/A 28 mm

N/A 3 mm

N/A

2-30

N/A 30 mm

N/A 42 mm

N/A 104 mm

N/A 10.5 mm

N/A 18 mm

N/A 34 mm

N/A 5 mm

N/A

2-35

N/A 35 mm

N/A 42 mm

N/A 104 mm

N/A 10.5 mm

N/A 18 mm

N/A 39 mm

N/A 5 mm

N/A

2-40

N/A 40 mm

N/A 42 mm

N/A 104 mm

N/A 10.5 mm

N/A 18 mm

N/A 44 mm

N/A 5 mm

N/A

3-45

N/A 45 mm

N/A 60 mm

N/A 142 mm

N/A 13.5 mm

N/A 27 mm

N/A 50 mm

N/A 7 mm

N/A

3-50

N/A 50 mm

N/A 60 mm

N/A 142 mm

N/A 13.5 mm

N/A 27 mm

N/A 55 mm

N/A 7 mm

N/A

3-55

N/A 55 mm

N/A 60 mm

N/A 142 mm

N/A 13.5 mm

N/A 27 mm

N/A 60 mm

N/A 7 mm

N/A

3-60

N/A 60 mm

N/A 142 mm

N/A 13.5 mm

N/A 27 mm

N/A 65 mm

N/A 7 mm

N/A

4-65

N/A 65 mm

N/A 75 mm

N/A 182 mm

N/A 17.5 mm

N/A 33 mm

N/A 70 mm

N/A 10 mm

N/A

4-70

N/A 70 mm

N/A 75 mm

N/A 182 mm

N/A 17.5 mm

N/A 33 mm

N/A 75 mm

N/A 10 mm

N/A

4-75

N/A 75 mm

N/A 182 mm

N/A 17.5 mm

N/A 33 mm

N/A 80 mm

N/A 10 mm

N/A

4-80

N/A 80 mm

N/A 75 mm

N/A 182 mm

N/A 17.5 mm

N/A 33 mm

N/A 85 mm

N/A 10 mm

N/A

5-85

N/A 85 mm

N/A 90 mm

N/A 222 mm

N/A 21 mm

N/A 40 mm

N/A 90 mm

N/A 10 mm

N/A

5-90

N/A 90 mm

N/A 222 mm

N/A 21 mm

N/A 40 mm

N/A 95 mm

N/A 10 mm

N/A

5-95

N/A 95 mm

N/A 90 mm

N/A 222 mm

N/A 21 mm

N/A 40 mm

N/A 100 mm

N/A 10 mm

N/A

5-100

N/A 100 mm

N/A 90 mm

N/A 222 mm

N/A 21 mm

N/A 40 mm

N/A 105 mm

N/A 10 mm

N/A
