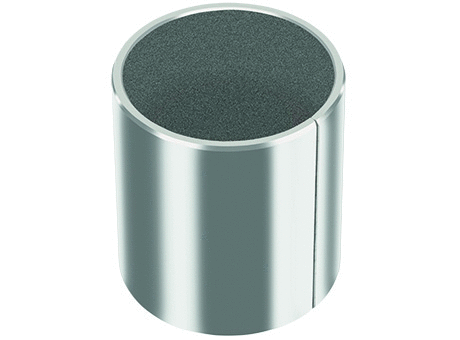

GGB DP10 bushes - inch On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

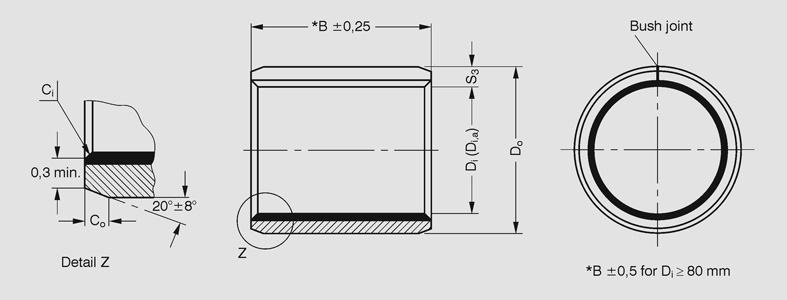

Part Number	B	Di	Do	CAD
02DP1002	N/A 0.125 in	N/A 1/8 in	N/A 3/16 in	N/A
02DP1003	N/A 0.188 in	N/A 1/8 in	N/A 3/16 in	N/A
025DP10025	N/A 0.154 in	N/A 5/32 in	N/A 7/32 in	N/A
025DP1004	N/A 0.25 in	N/A 5/32 in	N/A 7/32 in	N/A
03DP1003	N/A 0.188 in	N/A 3/16 in	N/A 1/4 in	N/A
03DP1004	N/A 0.25 in	N/A 3/16 in	N/A 1/4 in	N/A
03DP1006	N/A 0.375 in	N/A 3/16 in	N/A 1/4 in	N/A
04DP1004	N/A 0.25 in	N/A 1/4 in	N/A 5/16 in	N/A
04DP1006	N/A 0.375 in	N/A 1/4 in	N/A 5/16 in	N/A
05DP1006	N/A 0.375 in	N/A 5/16 in	N/A 3/8 in	N/A
05DP1008	N/A 0.5 in	N/A 5/16 in	N/A 3/8 in	N/A
06DP1003	N/A 0.188 in	N/A 3/8 in	N/A 15/32 in	N/A
06DP1004	N/A 0.25 in	N/A 3/8 in	N/A 15/32 in	N/A
06DP1006	N/A 0.375 in	N/A 3/8 in	N/A 15/32 in	N/A
06DP1008	N/A 0.5 in	N/A 3/8 in	N/A 15/32 in	N/A
06DP1010	N/A 0.625 in	N/A 3/8 in	N/A 15/32 in	N/A
06DP1012	N/A 0.75 in	N/A 3/8 in	N/A 15/32 in	N/A
07DP1008	N/A 0.5 in	N/A 7/16 in	N/A 17/32 in	N/A
07DP1012	N/A 0.75 in	N/A 7/16 in	N/A 17/32 in	N/A
08DP1004	N/A 0.25 in	N/A 1/2 in	N/A 19/32 in	N/A
08DP1006	N/A 0.375 in	N/A 1/2 in	N/A 19/32 in	N/A
08DP1008	N/A 0.5 in	N/A 1/2 in	N/A 19/32 in	N/A
08DP1010	N/A 0.625 in	N/A 1/2 in	N/A 19/32 in	N/A
08DP1012	N/A 0.75 in	N/A 1/2 in	N/A 19/32 in	N/A
08DP1014	N/A 0.875 in	N/A 1/2 in	N/A 19/32 in	N/A

Part Number

B

Di

Do

CAD

02DP1002

N/A 0.125 in

N/A 1/8 in

N/A 3/16 in

N/A

02DP1003

N/A 0.188 in

N/A 1/8 in

N/A 3/16 in

N/A

025DP10025

N/A 0.154 in

N/A 5/32 in

N/A 7/32 in

N/A

025DP1004

N/A 0.25 in

N/A 5/32 in

N/A 7/32 in

N/A

03DP1003

N/A 0.188 in

N/A 3/16 in

N/A 1/4 in

N/A

03DP1004

N/A 0.25 in

N/A 3/16 in

N/A 1/4 in

N/A

03DP1006

N/A 0.375 in

N/A 3/16 in

N/A 1/4 in

N/A

04DP1004

N/A 0.25 in

N/A 1/4 in

N/A 5/16 in

N/A

04DP1006

N/A 0.375 in

N/A 1/4 in

N/A 5/16 in

N/A

05DP1006

N/A 0.375 in

N/A 5/16 in

N/A 3/8 in

N/A

05DP1008

N/A 0.5 in

N/A 5/16 in

N/A 3/8 in

N/A

06DP1003

N/A 0.188 in

N/A 3/8 in

N/A 15/32 in

N/A

06DP1004

N/A 0.25 in

N/A 3/8 in

N/A 15/32 in

N/A

06DP1006

N/A 0.375 in

N/A 3/8 in

N/A 15/32 in

N/A

06DP1008

N/A 0.5 in

N/A 3/8 in

N/A 15/32 in

N/A

06DP1010

N/A 0.625 in

N/A 3/8 in

N/A 15/32 in

N/A

06DP1012

N/A 0.75 in

N/A 3/8 in

N/A 15/32 in

N/A

07DP1008

N/A 0.5 in

N/A 7/16 in

N/A 17/32 in

N/A

07DP1012

N/A 0.75 in

N/A 7/16 in

N/A 17/32 in

N/A

08DP1004

N/A 0.25 in

N/A 1/2 in

N/A 19/32 in

N/A

08DP1006

N/A 0.375 in

N/A 1/2 in

N/A 19/32 in

N/A

08DP1008

N/A 0.5 in

N/A 1/2 in

N/A 19/32 in

N/A

08DP1010

N/A 0.625 in

N/A 1/2 in

N/A 19/32 in

N/A

08DP1012

N/A 0.75 in

N/A 1/2 in

N/A 19/32 in

N/A

08DP1014

N/A 0.875 in

N/A 1/2 in

N/A 19/32 in

N/A
