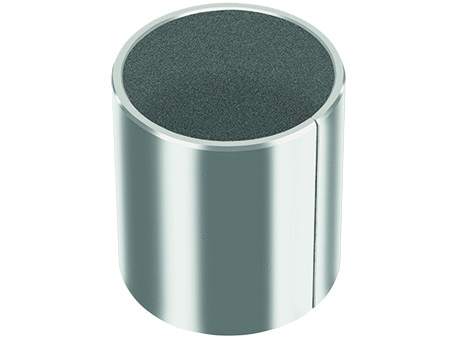

GGB DP10 bushes - metric On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

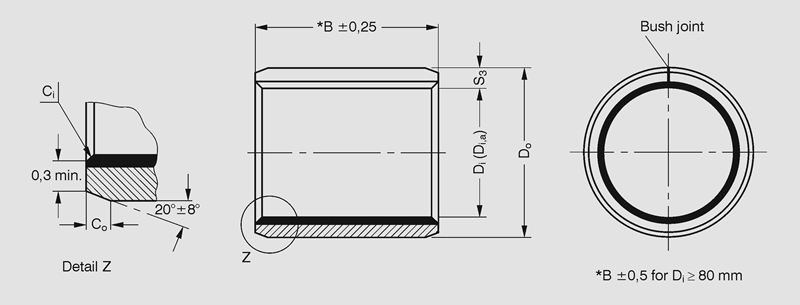

Part Number	B	Do	Di	ep	CAD
220100DP10	N/A 100 mm	N/A 225 mm	N/A 220 mm	N/A 2.5 mm	N/A
250100DP10	N/A 100 mm	N/A 255 mm	N/A 250 mm	N/A 2.5 mm	N/A
300100DP10	N/A 100 mm	N/A 305 mm	N/A 300 mm	N/A 2.5 mm	N/A
150100DP10	N/A 100 mm	N/A 155 mm	N/A 150 mm	N/A 2.5 mm	N/A
16080DP10	N/A 80 mm	N/A 165 mm	N/A 160 mm	N/A 2.5 mm	N/A
160100DP10	N/A 100 mm	N/A 165 mm	N/A 160 mm	N/A 2.5 mm	N/A
180100DP10	N/A 100 mm	N/A 185 mm	N/A 180 mm	N/A 2.5 mm	N/A
200100DP10	N/A 100 mm	N/A 205 mm	N/A 200 mm	N/A 2.5 mm	N/A
210100DP10	N/A 100 mm	N/A 215 mm	N/A 210 mm	N/A 2.5 mm	N/A
13560DP10	N/A 60 mm	N/A 140 mm	N/A 135 mm	N/A 2.5 mm	N/A
13580DP10	N/A 80 mm	N/A 140 mm	N/A 135 mm	N/A 2.5 mm	N/A
14060DP10	N/A 60 mm	N/A 145 mm	N/A 140 mm	N/A 2.5 mm	N/A
140100DP10	N/A 100 mm	N/A 145 mm	N/A 140 mm	N/A 2.5 mm	N/A
15060DP10	N/A 60 mm	N/A 155 mm	N/A 150 mm	N/A 2.5 mm	N/A
15080DP10	N/A 80 mm	N/A 155 mm	N/A 150 mm	N/A 2.5 mm	N/A
12050DP10	N/A 50 mm	N/A 125 mm	N/A 120 mm	N/A 2.5 mm	N/A
12060DP10	N/A 60 mm	N/A 125 mm	N/A 120 mm	N/A 2.5 mm	N/A
120100DP10	N/A 100 mm	N/A 125 mm	N/A 120 mm	N/A 2.5 mm	N/A
125100DP10	N/A 100 mm	N/A 130 mm	N/A 125 mm	N/A 2.5 mm	N/A
13060DP10	N/A 60 mm	N/A 135 mm	N/A 130 mm	N/A 2.5 mm	N/A
130100DP10	N/A 100 mm	N/A 135 mm	N/A 130 mm	N/A 2.5 mm	N/A
10560DP10	N/A 60 mm	N/A 110 mm	N/A 105 mm	N/A 2.5 mm	N/A
105115DP10	N/A 115 mm	N/A 110 mm	N/A 105 mm	N/A 2.5 mm	N/A
11060DP10	N/A 60 mm	N/A 115 mm	N/A 110 mm	N/A 2.5 mm	N/A
110115DP10	N/A 115 mm	N/A 115 mm	N/A 110 mm	N/A 2.5 mm	N/A

Part Number

B

Do

Di

ep

CAD

220100DP10

N/A 100 mm

N/A 225 mm

N/A 220 mm

N/A 2.5 mm

N/A

250100DP10

N/A 100 mm

N/A 255 mm

N/A 250 mm

N/A 2.5 mm

N/A

300100DP10

N/A 100 mm

N/A 305 mm

N/A 300 mm

N/A 2.5 mm

N/A

150100DP10

N/A 100 mm

N/A 155 mm

N/A 150 mm

N/A 2.5 mm

N/A

16080DP10

N/A 80 mm

N/A 165 mm

N/A 160 mm

N/A 2.5 mm

N/A

160100DP10

N/A 100 mm

N/A 165 mm

N/A 160 mm

N/A 2.5 mm

N/A

180100DP10

N/A 100 mm

N/A 185 mm

N/A 180 mm

N/A 2.5 mm

N/A

200100DP10

N/A 100 mm

N/A 205 mm

N/A 200 mm

N/A 2.5 mm

N/A

210100DP10

N/A 100 mm

N/A 215 mm

N/A 210 mm

N/A 2.5 mm

N/A

13560DP10

N/A 60 mm

N/A 140 mm

N/A 135 mm

N/A 2.5 mm

N/A

13580DP10

N/A 80 mm

N/A 140 mm

N/A 135 mm

N/A 2.5 mm

N/A

14060DP10

N/A 60 mm

N/A 145 mm

N/A 140 mm

N/A 2.5 mm

N/A

140100DP10

N/A 100 mm

N/A 145 mm

N/A 140 mm

N/A 2.5 mm

N/A

15060DP10

N/A 60 mm

N/A 155 mm

N/A 150 mm

N/A 2.5 mm

N/A

15080DP10

N/A 80 mm

N/A 155 mm

N/A 150 mm

N/A 2.5 mm

N/A

12050DP10

N/A 50 mm

N/A 125 mm

N/A 120 mm

N/A 2.5 mm

N/A

12060DP10

N/A 60 mm

N/A 125 mm

N/A 120 mm

N/A 2.5 mm

N/A

120100DP10

N/A 100 mm

N/A 125 mm

N/A 120 mm

N/A 2.5 mm

N/A

125100DP10

N/A 100 mm

N/A 130 mm

N/A 125 mm

N/A 2.5 mm

N/A

13060DP10

N/A 60 mm

N/A 135 mm

N/A 130 mm

N/A 2.5 mm

N/A

130100DP10

N/A 100 mm

N/A 135 mm

N/A 130 mm

N/A 2.5 mm

N/A

10560DP10

N/A 60 mm

N/A 110 mm

N/A 105 mm

N/A 2.5 mm

N/A

105115DP10

N/A 115 mm

N/A 110 mm

N/A 105 mm

N/A 2.5 mm

N/A

11060DP10

N/A 60 mm

N/A 115 mm

N/A 110 mm

N/A 2.5 mm

N/A

110115DP10

N/A 115 mm

N/A 110 mm

N/A 2.5 mm

N/A
