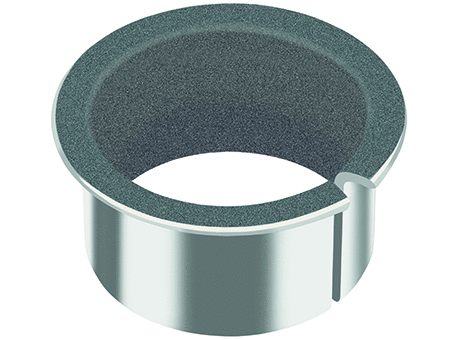

GGB DP10 flanged bushes - metric On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

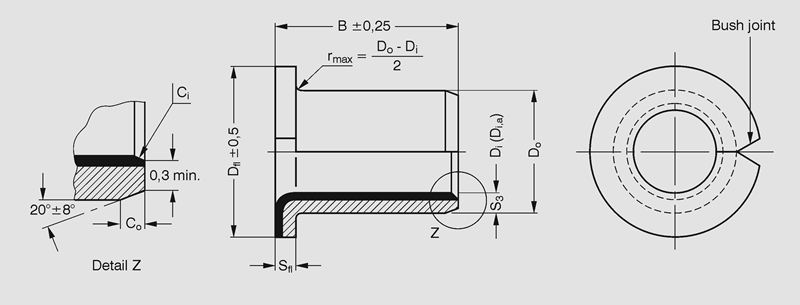

Part Number	B	Do	Dfl	Di	Sfl	CAD
BB4516DP10	N/A 16 mm	N/A 50 mm	N/A 58 mm	N/A 45 mm	N/A 2.45 mm	N/A
BB4526DP10	N/A 26 mm	N/A 50 mm	N/A 58 mm	N/A 45 mm	N/A 2.45 mm	N/A
BB3016DP10	N/A 16 mm	N/A 34 mm	N/A 42 mm	N/A 30 mm	N/A 1.95 mm	N/A
BB3026DP10	N/A 26 mm	N/A 34 mm	N/A 42 mm	N/A 30 mm	N/A 1.95 mm	N/A
BB3516DP10	N/A 16 mm	N/A 39 mm	N/A 47 mm	N/A 35 mm	N/A 1.95 mm	N/A
BB3526DP10	N/A 26 mm	N/A 39 mm	N/A 47 mm	N/A 35 mm	N/A 1.95 mm	N/A
BB4016DP10	N/A 16 mm	N/A 44 mm	N/A 53 mm	N/A 40 mm	N/A 1.95 mm	N/A
BB4026DP10	N/A 26 mm	N/A 44 mm	N/A 53 mm	N/A 40 mm	N/A 1.95 mm	N/A
BB2012DP10	N/A 11.5 mm	N/A 23 mm	N/A 30 mm	N/A 20 mm	N/A 1.45 mm	N/A
BB2017DP10	N/A 16.5 mm	N/A 23 mm	N/A 30 mm	N/A 20 mm	N/A 1.45 mm	N/A
BB2022DP10	N/A 21.5 mm	N/A 23 mm	N/A 30 mm	N/A 20 mm	N/A 1.45 mm	N/A
BB2512DP10	N/A 11.5 mm	N/A 28 mm	N/A 35 mm	N/A 25 mm	N/A 1.45 mm	N/A
BB2517DP10	N/A 16.5 mm	N/A 28 mm	N/A 35 mm	N/A 25 mm	N/A 1.45 mm	N/A
BB2522DP10	N/A 21.5 mm	N/A 28 mm	N/A 35 mm	N/A 25 mm	N/A 1.45 mm	N/A
BB1517DP10	N/A 17 mm	N/A 17 mm	N/A 23 mm	N/A 15 mm	N/A 0.925 mm	N/A
BB1612DP10	N/A 12 mm	N/A 18 mm	N/A 24 mm	N/A 16 mm	N/A 0.925 mm	N/A
BB1617DP10	N/A 17 mm	N/A 18 mm	N/A 24 mm	N/A 16 mm	N/A 0.925 mm	N/A
BB1812DP10	N/A 12 mm	N/A 20 mm	N/A 26 mm	N/A 18 mm	N/A 0.925 mm	N/A
BB1817DP10	N/A 17 mm	N/A 20 mm	N/A 26 mm	N/A 18 mm	N/A 0.925 mm	N/A
BB1822DP10	N/A 22 mm	N/A 20 mm	N/A 26 mm	N/A 18 mm	N/A 0.925 mm	N/A
BB1212DP10	N/A 12 mm	N/A 14 mm	N/A 20 mm	N/A 12 mm	N/A 0.925 mm	N/A
BB1217DP10	N/A 17 mm	N/A 14 mm	N/A 20 mm	N/A 12 mm	N/A 0.925 mm	N/A
BB1412DP10	N/A 12 mm	N/A 16 mm	N/A 22 mm	N/A 14 mm	N/A 0.925 mm	N/A
BB1417DP10	N/A 17 mm	N/A 16 mm	N/A 22 mm	N/A 14 mm	N/A 0.925 mm	N/A
BB1509DP10	N/A 9 mm	N/A 17 mm	N/A 23 mm	N/A 15 mm	N/A 0.925 mm	N/A

Part Number

B

Do

Dfl

Di

Sfl

CAD

BB4516DP10

N/A 16 mm

N/A 50 mm

N/A 58 mm

N/A 45 mm

N/A 2.45 mm

N/A

BB4526DP10

N/A 26 mm

N/A 50 mm

N/A 58 mm

N/A 45 mm

N/A 2.45 mm

N/A

BB3016DP10

N/A 16 mm

N/A 34 mm

N/A 42 mm

N/A 30 mm

N/A 1.95 mm

N/A

BB3026DP10

N/A 26 mm

N/A 34 mm

N/A 42 mm

N/A 30 mm

N/A 1.95 mm

N/A

BB3516DP10

N/A 16 mm

N/A 39 mm

N/A 47 mm

N/A 35 mm

N/A 1.95 mm

N/A

BB3526DP10

N/A 26 mm

N/A 39 mm

N/A 47 mm

N/A 35 mm

N/A 1.95 mm

N/A

BB4016DP10

N/A 16 mm

N/A 44 mm

N/A 53 mm

N/A 40 mm

N/A 1.95 mm

N/A

BB4026DP10

N/A 26 mm

N/A 44 mm

N/A 53 mm

N/A 40 mm

N/A 1.95 mm

N/A

BB2012DP10

N/A 11.5 mm

N/A 23 mm

N/A 30 mm

N/A 20 mm

N/A 1.45 mm

N/A

BB2017DP10

N/A 16.5 mm

N/A 23 mm

N/A 30 mm

N/A 20 mm

N/A 1.45 mm

N/A

BB2022DP10

N/A 21.5 mm

N/A 23 mm

N/A 30 mm

N/A 20 mm

N/A 1.45 mm

N/A

BB2512DP10

N/A 11.5 mm

N/A 28 mm

N/A 35 mm

N/A 25 mm

N/A 1.45 mm

N/A

BB2517DP10

N/A 16.5 mm

N/A 28 mm

N/A 35 mm

N/A 25 mm

N/A 1.45 mm

N/A

BB2522DP10

N/A 21.5 mm

N/A 28 mm

N/A 35 mm

N/A 25 mm

N/A 1.45 mm

N/A

BB1517DP10

N/A 17 mm

N/A 23 mm

N/A 15 mm

N/A 0.925 mm

N/A

BB1612DP10

N/A 12 mm

N/A 18 mm

N/A 24 mm

N/A 16 mm

N/A 0.925 mm

N/A

BB1617DP10

N/A 17 mm

N/A 18 mm

N/A 24 mm

N/A 16 mm

N/A 0.925 mm

N/A

BB1812DP10

N/A 12 mm

N/A 20 mm

N/A 26 mm

N/A 18 mm

N/A 0.925 mm

N/A

BB1817DP10

N/A 17 mm

N/A 20 mm

N/A 26 mm

N/A 18 mm

N/A 0.925 mm

N/A

BB1822DP10

N/A 22 mm

N/A 20 mm

N/A 26 mm

N/A 18 mm

N/A 0.925 mm

N/A

BB1212DP10

N/A 12 mm

N/A 14 mm

N/A 20 mm

N/A 12 mm

N/A 0.925 mm

N/A

BB1217DP10

N/A 17 mm

N/A 14 mm

N/A 20 mm

N/A 12 mm

N/A 0.925 mm

N/A

BB1412DP10

N/A 12 mm

N/A 16 mm

N/A 22 mm

N/A 14 mm

N/A 0.925 mm

N/A

BB1417DP10

N/A 17 mm

N/A 16 mm

N/A 22 mm

N/A 14 mm

N/A 0.925 mm

N/A

BB1509DP10

N/A 9 mm

N/A 17 mm

N/A 23 mm

N/A 15 mm

N/A 0.925 mm

N/A
