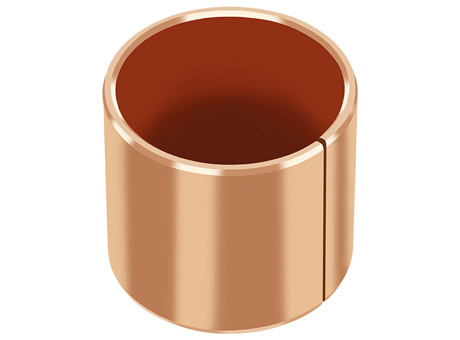

GGB DP4-B bushes - metric On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

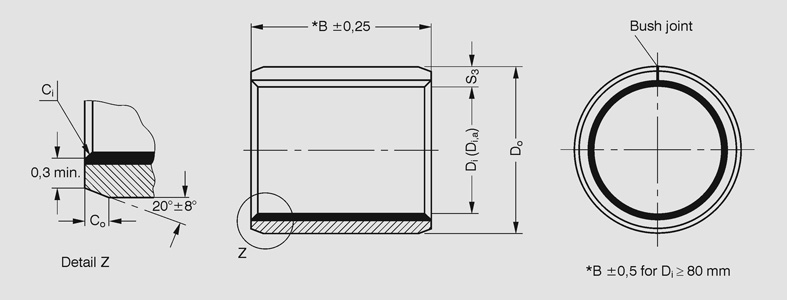

Part Number	B	Do	Di	ep	CAD
0203DP4B	N/A 3 mm	N/A 3.5 mm	N/A 2 mm	N/A 0.75 mm	N/A
0306DP4B	N/A 6 mm	N/A 4.5 mm	N/A 3 mm	N/A 0.75 mm	N/A
0404DP4B	N/A 4 mm	N/A 5.5 mm	N/A 4 mm	N/A 0.75 mm	N/A
0406DP4B	N/A 6 mm	N/A 5.5 mm	N/A 4 mm	N/A 0.75 mm	N/A
0410DP4B	N/A 10 mm	N/A 5.5 mm	N/A 4 mm	N/A 0.75 mm	N/A
0505DP4B	N/A 5 mm	N/A 7 mm	N/A 5 mm	N/A 1 mm	N/A
0510DP4B	N/A 10 mm	N/A 7 mm	N/A 5 mm	N/A 1 mm	N/A
0606DP4B	N/A 6 mm	N/A 8 mm	N/A 6 mm	N/A 1 mm	N/A
0610DP4B	N/A 10 mm	N/A 8 mm	N/A 6 mm	N/A 1 mm	N/A
0808DP4B	N/A 8 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
0810DP4B	N/A 10 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
0812DP4B	N/A 12 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
1010DP4B	N/A 10 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A
1015DP4B	N/A 15 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A
1208DP4B	N/A 8 mm	N/A 14 mm	N/A 12 mm	N/A 1 mm	N/A
1210DP4B	N/A 10 mm	N/A 14 mm	N/A 12 mm	N/A 1 mm	N/A
1212DP4B	N/A 12 mm	N/A 14 mm	N/A 12 mm	N/A 1 mm	N/A
1215DP4B	N/A 15 mm	N/A 14 mm	N/A 12 mm	N/A 1 mm	N/A
1410DP4B	N/A 10 mm	N/A 16 mm	N/A 14 mm	N/A 1 mm	N/A
1415DP4B	N/A 15 mm	N/A 16 mm	N/A 14 mm	N/A 1 mm	N/A
1420DP4B	N/A 20 mm	N/A 16 mm	N/A 14 mm	N/A 1 mm	N/A
1515DP4B	N/A 15 mm	N/A 17 mm	N/A 15 mm	N/A 1 mm	N/A
1525DP4B	N/A 25 mm	N/A 17 mm	N/A 15 mm	N/A 1 mm	N/A
1615DP4B	N/A 15 mm	N/A 18 mm	N/A 16 mm	N/A 1 mm	N/A
1625DP4B	N/A 25 mm	N/A 18 mm	N/A 16 mm	N/A 1 mm	N/A

Part Number

B

Do

Di

ep

CAD

0203DP4B

N/A 3 mm

N/A 3.5 mm

N/A 2 mm

N/A 0.75 mm

N/A

0306DP4B

N/A 6 mm

N/A 4.5 mm

N/A 3 mm

N/A 0.75 mm

N/A

0404DP4B

N/A 4 mm

N/A 5.5 mm

N/A 4 mm

N/A 0.75 mm

N/A

0406DP4B

N/A 6 mm

N/A 5.5 mm

N/A 4 mm

N/A 0.75 mm

N/A

0410DP4B

N/A 10 mm

N/A 5.5 mm

N/A 4 mm

N/A 0.75 mm

N/A

0505DP4B

N/A 5 mm

N/A 7 mm

N/A 5 mm

N/A 1 mm

N/A

0510DP4B

N/A 10 mm

N/A 7 mm

N/A 5 mm

N/A 1 mm

N/A

0606DP4B

N/A 6 mm

N/A 8 mm

N/A 6 mm

N/A 1 mm

N/A

0610DP4B

N/A 10 mm

N/A 8 mm

N/A 6 mm

N/A 1 mm

N/A

0808DP4B

N/A 8 mm

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

0810DP4B

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

0812DP4B

N/A 12 mm

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

1010DP4B

N/A 10 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A

1015DP4B

N/A 15 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A

1208DP4B

N/A 8 mm

N/A 14 mm

N/A 12 mm

N/A 1 mm

N/A

1210DP4B

N/A 10 mm

N/A 14 mm

N/A 12 mm

N/A 1 mm

N/A

1212DP4B

N/A 12 mm

N/A 14 mm

N/A 12 mm

N/A 1 mm

N/A

1215DP4B

N/A 15 mm

N/A 14 mm

N/A 12 mm

N/A 1 mm

N/A

1410DP4B

N/A 10 mm

N/A 16 mm

N/A 14 mm

N/A 1 mm

N/A

1415DP4B

N/A 15 mm

N/A 16 mm

N/A 14 mm

N/A 1 mm

N/A

1420DP4B

N/A 20 mm

N/A 16 mm

N/A 14 mm

N/A 1 mm

N/A

1515DP4B

N/A 15 mm

N/A 17 mm

N/A 15 mm

N/A 1 mm

N/A

1525DP4B

N/A 25 mm

N/A 17 mm

N/A 15 mm

N/A 1 mm

N/A

1615DP4B

N/A 15 mm

N/A 18 mm

N/A 16 mm

N/A 1 mm

N/A

1625DP4B

N/A 25 mm

N/A 18 mm

N/A 16 mm

N/A 1 mm

N/A
